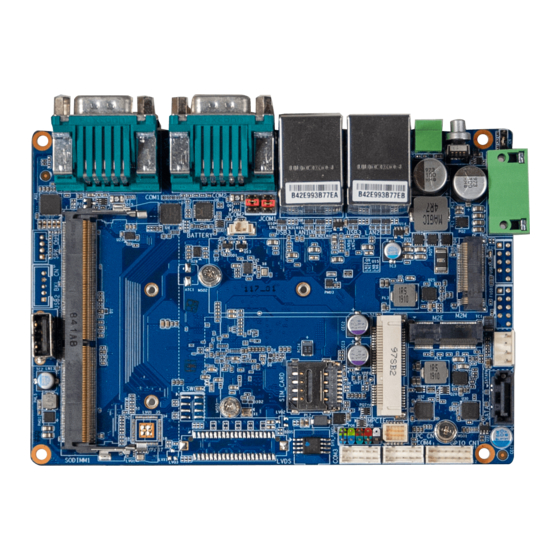

GIGAIPC QBiP-5005B User Manual
  1. Manuals
  2. Brands
  3. GIGAIPC Manuals
  4. Motherboard
  5. QBiP-5005B
  6. User manual

GIGAIPC QBiP-5005B User Manual

3.5” sbc boards
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QBiP-5005B

3.5" SBC Boards

User's Manual 1st Ed

1
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBiP-5005B and is the answer not in the manual?

Questions and answers

Related Manuals for GIGAIPC QBiP-5005B

Summary of Contents for GIGAIPC QBiP-5005B

  • Page 1: Sbc Boards

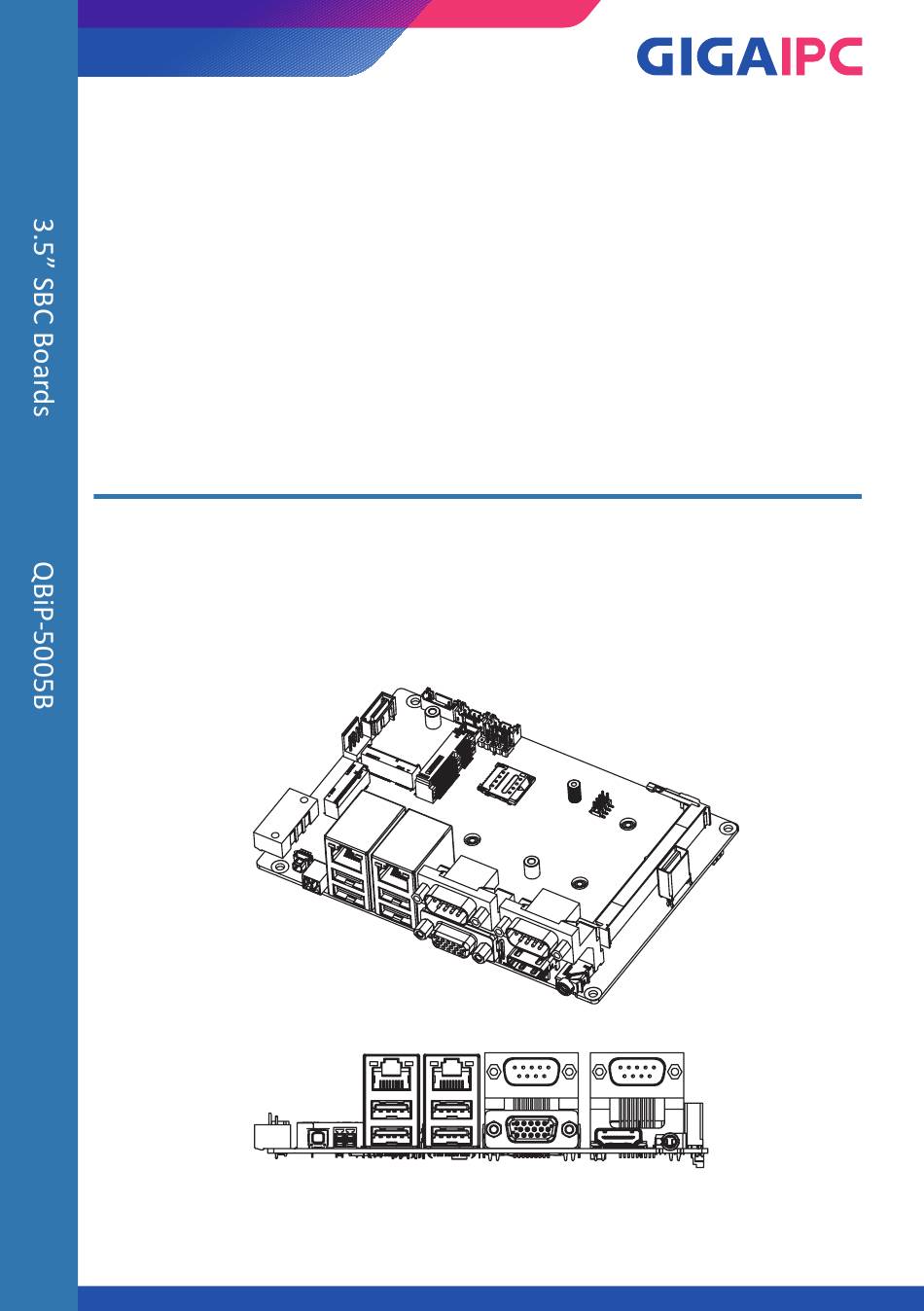

    QBiP-5005B 3.5” SBC Boards User’s Manual 1st Ed www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 2: Copyright Notice

    GIGAIPC reserves the right to make changes in the product design without notice to its users. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 3: Acknowledgement

    IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 4: Packing List

    Item Quantity QBiP-5005B SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 5: About This Document

    (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 6: Safety Precautions

    12. Do not cover the openings on the device to ensure optimal heat dissipation. 13. Watch out for high temperatures when the system is running. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 8: Fcc Statement

    Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 9: China Rohs Requirements (Cn)

    ○ ○ ○ ○ 连接器及线材 O ： 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的限量要求以下 。 X： 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 标准规定的限量要求 。 备注 ： 此产品所标示之环保使用期限 ， 系指在一般正常使用状况下 。 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 10: China Rohs Requirement (En)

    SJ/T 11363-2006-stipulated requirement. Note: The Environment Friendly Use Period as labeled on this product is applicable under normal usage only www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 11: Table Of Contents

    2.2.9 SATAPW (SATA 6GB/s power connector) ......25 2.2.10 SATAIII (SATA 6GB/s Connector) ........26 2.2.15 GPIO_CNT (General Purpose input/output header ) ..27 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 12 2.2.16 COM3, COM4 (Serial port header)........28 2.2.17 LPC_CN (LPC Connector) ..........29 2.2.18 SYS_PANEL (Front panel header) ........30 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 13: Chapter1 - Product Specifications

    Chapter 1 Chapter1 - Product Specifications QBiP-5005B www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 14 GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 15: Specifications- Qbip-5005B

    1 x M.2 slot: Expansion Slots - E-key - Supports NGFF-2230 (WiFi/BT) 1 x Mini-PCIe slot - Full card size -Support PCIe X1+USB2.0 -Support 3G/4G module www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 16 PSU Connectors (48V option) Operating temperature: 0°C to 60°C Operating Operating humidity: 0-90% (non-condensing) Properties Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 17: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 18: Jumpers And Connectors

    Jumpers and Connectors 34 33 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 19 Serial Port connector, COM Port COM1 (RS232/422/485 and RI/5V/12V) Serial Port connector, COM Port COM2 (RS232/422/485 and RI/5V/12V) LAN1 LAN connector LAN2 LAN connector Headphone Jack Headphone Jack www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 20 RUSB3_1 USB3.0 Connector x 4 RUSB3_2 Remote Control connector PWR_SW PWR_BUTTON Power button DC_IN DC IN 1 x 3-pin thermal block (Side) 34 33 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 21: Cpu Fan (Cpu Fan Connector)

    CPU FAN (CPU FAN connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 22: Usb2 (Vertial Usb2.0 Connector)

    2.2.2 USB2 (Vertial USB2.0 connector) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 23: Battery (Battery Cable Connector)

    2.2.5 BATTERY (Battery cable connector) Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 24: Jcom1, Jcom2 (Com1, Com2 Ri# Pin Ri#/5V/12V Select)

    JCOM1/ JCOM2 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 25: Satapw (Sata 6Gb/S Power Connector)

    2.2.9 SATAPW (SATA 6GB/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 26: Sataiii (Sata 6Gb/S Connector)

    2.2.10 SATAIII (SATA 6GB/s Connector) SATA Connector SATAIII_1,SATAIII_0 Connector PN Vendor WATM-07ABNB2BAUW3 WINWIN 770-83-07SW19 PINREX Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 27: Gpio_Cnt (General Purpose Input/Output Header )

    Pin 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 28 2.2.16 COM3, COM4 (Serial port header) 16 17 Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/ 5V/ 12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 29 2.2.17 LPC_CN (LPC Connector) Pin 1 LPC Connector Pin No. Definition LPC_CLK LFRAME# LAD0 PCI_RST LAD1 LAD3 LAD2 3.3V SERIRQ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 30 Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
