2.2.3

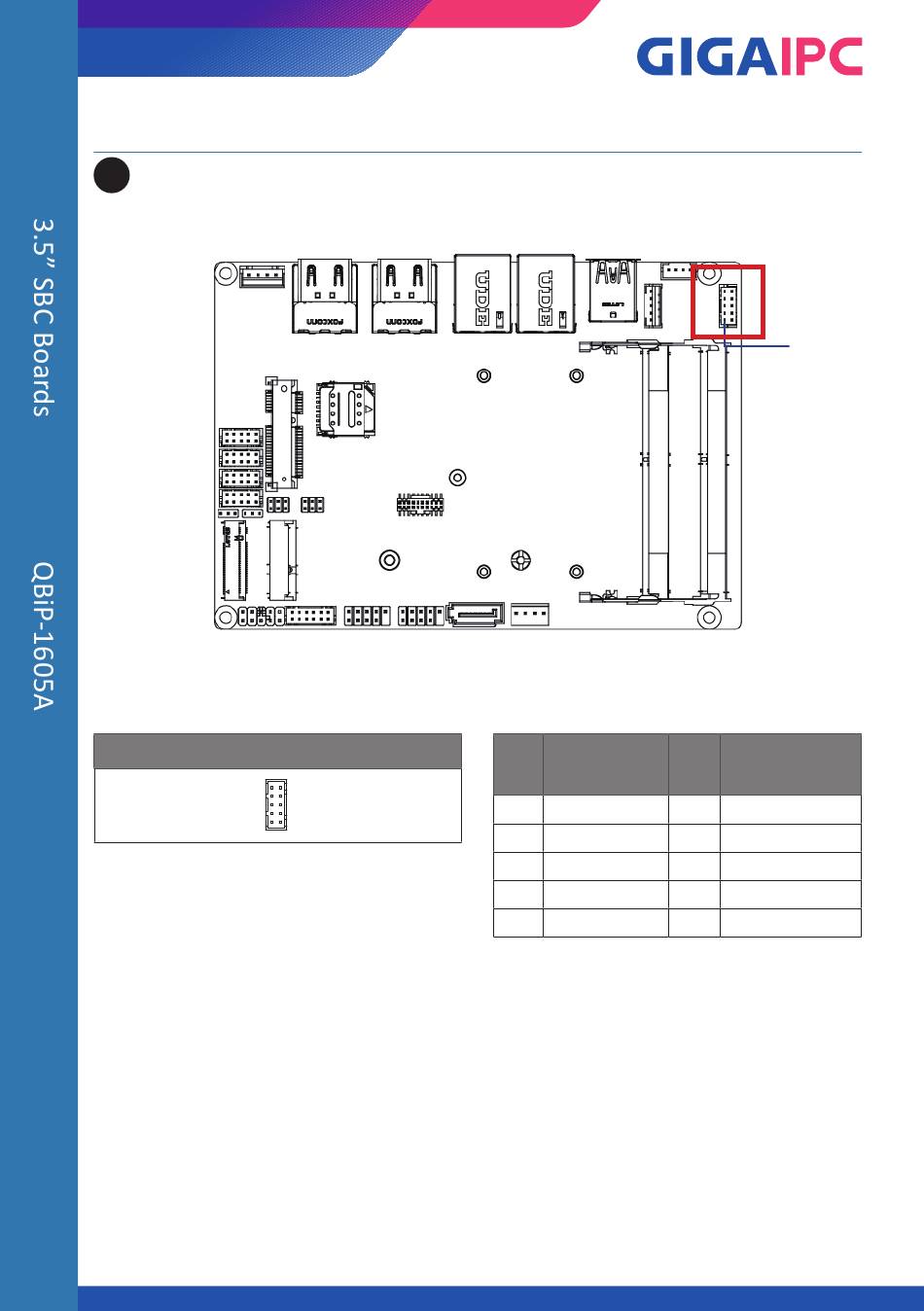

F_Audio (Audio line-out port)

3
F_Audio Connector
23
www.gigaipc.com
9 10
1 2
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Pin Definition
No.
1 F_MIC1_L
3 F_MIC1_R
5 F_HP_R
7 FAUDIO_JD
9 F_HP_L
Pin 1
Pin Definition
No.
2 GND
4 F_AUDIO_DET
6 F_MIC_JD
8 NC
10 F_HP_JD
