QBiP-1605B

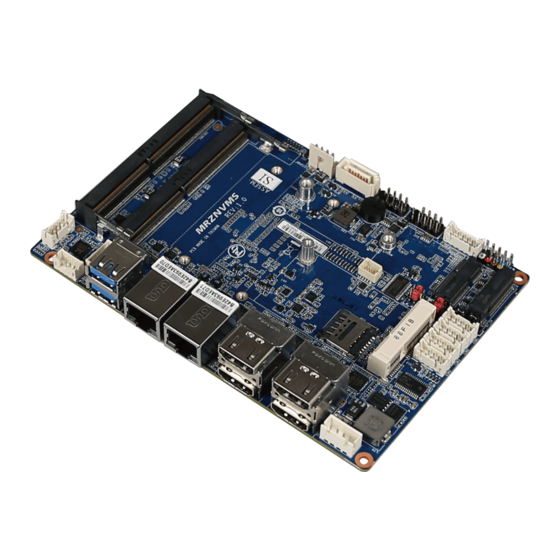

3.5" SBC Boards- QBiP-1605B

User's Manual 1st Ed
1
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBiP-1605B and is the answer not in the manual?

Questions and answers

Related Manuals for GIGAIPC QBiP-1605B

Summary of Contents for GIGAIPC QBiP-1605B

  • Page 1: Sbc Boards- Qbip-1605B

    QBiP-1605B 3.5” SBC Boards- QBiP-1605B User’s Manual 1st Ed www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 2: Copyright Notice

    GIGAIPC reserves the right to make changes in the product design without notice to its users. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 3: Acknowledgement

    IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 4: Packing List

    Item Quantity QBiP-1605B SATA cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 5: About This Document

    (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 6: Safety Precautions

    11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 8: Fcc Statement

    Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 9: China Rohs Requirements (Cn)

    ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○ 连接器及线材 O： 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的限量要求以下。 X： 表示该有毒有害物质至少在该部件的 某一均质材料中的含量超出 SJ/T 11363-2006 标准规定的限量要求。 备注： 此产品所标示之环保使用期限， 系指在一般正常使用状况下。 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 10: China Rohs Requirement (En)

    SJ/T 11363-2006-stipulated requirement. Note: The Environment Friendly Use Period as labeled on this product is applicable under normal usage only www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 11: Table Of Contents

    SATAPW (SATA power connector) ........26 2.2.6 SATA (SATA 6Gb/s connector) ........27 2.2.7 F_USB2_2 (USB 2.0 header) ..........28 2.2.8 F_USB2_1 (USB 2.0 header) ..........29 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 12 2.2.26 SYS_FAN (System FAN Connector) ........46 2.2.27 IO Connector Information ..........47 Chapter 3 – BIOS Introduction ..............49 The Main Menu..............50 Advanced ................. 51 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 13 Offboard SATA Controller Configuration ......60 3.3.10 Digital IO Port Configuration ........... 61 Chipset ................62 Security ................63 Boot .................. 66 Save & Exit ............... 67 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 14: Chapter1 - Product Specifications

    Chapter 1 Chapter1 - Product Specifications QBiP-1605B www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 15 GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 16: Specifications- Qbip-1605B

    1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key Expansion Slots 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 17 1 x 4-pin box power connector (+9V~36V Full Range) Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Operating Properties Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 18: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 19: Jumpers And Connectors

    Jumpers and Connectors www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 20 COM2 Serial port header (RS-232/422/485, COM2 RI/5V/12V) COM3 Serial port header (RS-232) COM3 COM4 Serial port header (RS-232) COM4 MPCIE Mini PCIE for 3G/4G module www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 21 HDMI 4 connector (*The HDMI 4’s function is Disabled, during eDP Function Enabled) HDMI3_4 HDMI 3 connector LAN2 LAN connectors LAN1 LAN connectors USB3 USB 3.2 Gen 1 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 22: Bkl_Cn (Backlight Control Header)

    2.2.1 BKL_CN (Backlight Control header) Pin 1 Backlight Control header Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition eDP_BKLTEN eDP_BKLTCTL www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 23: Spk_Out (Speaker Out Connector)

    Speaker out connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out R+ Speaker Out R- Speaker Out L- Speaker Out L+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 24: F_Audio (Front Panel Audio Header)

    F_Audio (Front panel audio header) Pin 1 Front panel audio header Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Definition F_MIC1_L F_MIC1_R F_AUDIO_DET F_HP_R F_MIC_JD FAUDIO_JD F_HP_L F_HP_JD www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 25: Sodimm1, Sodimm2 (Ddr4 So-Dimm Slot)

    2.2.4 SODIMM1, SODIMM2 (DDR4 SO-DIMM slot) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 26: Satapw (Sata Power Connector)

    2.2.5 SATAPW (SATA power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 27: Sata (Sata 6Gb/S Connector)

    2.2.6 SATA (SATA 6Gb/s connector) Pin 1 SATA 6Gb/s Connector Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 28: F_Usb2_2 (Usb 2.0 Header)

    2.2.7 F_USB2_2 (USB 2.0 header) Pin 1 USB 2.0 header Connector PN Vendor 210-92-05G117 PINREX Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 29: F_Usb2_1 (Usb 2.0 Header)

    2.2.8 F_USB2_1 (USB 2.0 header) Pin 1 USB 2.0 header Connector PN Vendor 210-92-05G117 PINREX Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 30: Gpio_Cnt (General Purpose Input/Output Header)

    Pin 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Definition Definition GPI_0 GPO_0 GPI_1 GPO_1 GPI_2 GPO_2 GPI_3 GPO_3 SMB_IO_ SMB_IO_ DATA 3.3V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 31: Sys_Panel (Front Panel Header)

    Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: M2E (M.2 E-Key For Wifi Ngff)

    2.2.11 M2E (M.2 E-key for WiFi NGFF) 2.2.12 M2M (M.2 M key for NVME/SATA) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: At_Cn (At/Atx Mode Select Jumper)

    2.2.13 AT_CN (AT/ATX mode select jumper) Pin 1 AT/ATX mode select jumper Pin No. Definition 1-2 Close : AT mode. 2-3 Close : ATX mode. COMM (Default setting) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Hdmi/Edp_Cn (Hdmi/Edp Mode Select Jumper)

    1-2 Close: HDMI mode. HDMI (Default setting, HDMI 4 I/O COMM is Enable) 2-3 Close: eDP mode. (HDMI 4 I/O Port is Disable) HDMI 4 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: Jcom2 (Com2 Ri Pin Ri/5V/12V Select)

    2.2.15 JCOM2 (COM2 RI pin RI/5V/12V Select) Pin 1 JCOM2 Jumper Select 1-2 Close: 5V (Power COM) 3-4 Close: RI (Stand COM) Default 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: Jcom1 (Com1 Ri Pin Ri/5V/12V Select)

    2.2.16 JCOM1 (COM1 RI pin RI/5V/12V Select) Pin 1 JCOM1 Jumper Select 1-2 Close: 5V (Power COM) 3-4 Close: RI (Stand COM) Default 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 37 Full Duplex Half Duplex TXD+ TXD- RXD- — RXD+ — — — — — — — — — No Connect — — RI/5V/12V — — www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 38 Full Duplex Half Duplex TXD+ TXD- RXD- — RXD+ — — — — — — — — — No Connect — — RI/5V/12V — — www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 39: Com3 (Serial Port Header, Rs-232)

    2.2.19 COM3 (Serial port header, RS-232) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/5V/12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 40: Com4 (Serial Port Header, Rs-232)

    2.2.20 COM4 (Serial port header, RS-232) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition No Connect RI/5V/12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 41: Mpcie (Mini Pcie For 3G/4G Module)

    2.2.21 MPCIE (Mini PCIE for 3G/4G module) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 42: Dc In (Dc In 1 X 4 Pin Power Connector)

    2.2.22 DC IN (DC IN 1 x 4 pin power connector) Pin 1 DC IN power connector Connector PN Vendor 753-81-04TW00 PINREX Pin No. Definition DCIN DCIN www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 43: Battery (Battery Connector)

    2.2.23 Battery (Battery Connector) Pin 1 Battery Cable Connector Pin No. Definition 3.3V RTC www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 44: Edp (Edp Connector)

    Pin No. Definition EDP_TXN0 EDP_TXN3 EDP_TXP0 EDP_TXP3 eDP_DET# EDP_TXN1 EDP_TXP1 EDP_AUXN EDP_AUXP EDP_TXN2 EDP_TXP2 EDP_HPD 3.3V Connector PN Vendor 50286-02071-001 ACES A1252WV-SF- JOINT-TECH 2X10PN6BG1G00L www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 45: Cpu_Fan (Cpu Fan Connector)

    2.2.25 CPU_FAN (CPU FAN Connector) Pin 1 CPU FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH 1 2 3 4 Pin No. Definition FANTECH www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 46: Sys_Fan (System Fan Connector)

    2.2.26 SYS_FAN (System FAN Connector) Pin 1 CPU/System FAN connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition FANTECH www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 47: 2.2.27 Io Connector Information

    HDMI 4 connector (*The HDMI 4’s Function is Disabled, during eDP Function Enabled) HDMI3_4 HDMI 3 connector 31 LAN2 LAN connectors 32 LAN1 LAN connectors 33 USB3 USB 3.2 Gen 1 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 48: Chapter 3 - Bios

    Chapter 3 Chapter 3 – BIOS www.gigaipc.com...

  • Page 49: Introduction

    Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com...

  • Page 50: The Main Menu

    Shows the total memory size of the installed memory Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com...

  • Page 51: Advanced

    Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com...

  • Page 52: Tpm Configuration

    Pending operation : Trusted Computing None : No execution will be conducted (Default setting) TPM clear : Set to clear data on TPM Physical Presence Spec Version : Choose PPI spec version Option items : 1.2 or 1.3 (Default setting) www.gigaipc.com...

  • Page 53: Super Io Configuration

    Enabled : Enables allows you to configure the serial port settings Disabled : if Disabled, displays no configuration for the serial port Serial Port 4 Device settings : Configuration Display the specified Serial Port base I/O address and IRQ www.gigaipc.com...

  • Page 54: Hardware Monitor

    Full Speed : Set Fan operates at full speed System Fan Speed Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed CPU temperature Shows current CPU temperature System Shows current system temperature temperature www.gigaipc.com...

  • Page 55: Cpu Configuration

    Enabled : Enables Turbo Mode (Default setting) NX Mode Disabled : Disables Turbo Mode Enables or Disables the CPU virtualization funtion. Enabled : Enables SVM Mode (Default setting) SVM Mode Disabled : Disables SVM Mode Node 0 Information Shows AMD CPU information www.gigaipc.com...

  • Page 56: Csm Configuration

    Enabled : Enables UEFI Network Stack Allows to select whether to enable UEFI or Legacy Storage option ROM Do not launch : Disables option ROM Storage UEFI : Enables UEFI option ROM only (Default setting) Legacy : Enables Legacy option ROM only www.gigaipc.com...

  • Page 57: S5 Rtc Wake Settings

    Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com...

  • Page 58: Nvme Configuration

    3.3.7 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com...

  • Page 59: Sata Configuration

    3.3.8 SATA Configuration Item Description SATA Port 0 shows 2.5" SATA HDD/SSD information M.2 Port 1 shows M.2 SATA interface SSD information www.gigaipc.com...

  • Page 60: Offboard Sata Controller Configuration

    3.3.9 Offboard SATA Controller Configuration www.gigaipc.com...

  • Page 61: Digital Io Port Configuration

    Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com...

  • Page 62: Chipset

    Power off : Do not power on when the power is back (Default setting) Last state : Restore the system to the state before power loss occures Watchdog Timer Enable/Disable Watchdog Timer function Value Option items : Disabled (Default setting), 30 Seconds, 60 Seconds www.gigaipc.com...

  • Page 63: Security

    To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com...
  • Page 64 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
  • Page 65 'UEFI CA' from database from DB No : Cancel to remove 'UEFI CA' from database Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...

  • Page 66: Boot

    Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Boot Option #1 Shows the information of the storage that be installed in the system Boot Option #2 Choose/set the boot priority www.gigaipc.com...

  • Page 67: Save & Exit

    Yes : Agree to discard changes and reset and Reset No : Cancel to discard changes and reset Restore/Load default values for all the setup options Restore Defaults Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Boot Override Boot override www.gigaipc.com...
