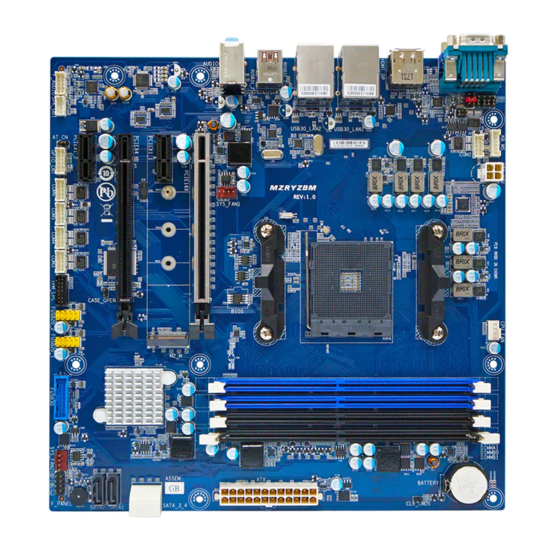

Thin micro-atx motherboard
Table of Contents

Advertisement

Quick Links

uATX-RYZEN (MZRYZBM)

Thin Micro-ATX Motherboard

User's Manual 1st Ed

1
www.gigaipc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uATX-RYZEN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GIGAIPC uATX-RYZEN

  • Page 1: Thin Micro-Atx Motherboard

    (MZRYZBM) Thin Micro-ATX Motherboard User’s Manual 1st Ed www.gigaipc.com...
  • Page 2: Copyright Notice

    While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein.
  • Page 3: Acknowledgement

    Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com...
  • Page 4: Packing List

    Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity uATX-RYZEN MB I/O Bracket If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com...
  • Page 5: About This Document

    (if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com...
  • Page 6: Safety Precautions

    Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com...
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
  • Page 8: Fcc Statement

    Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com...
  • Page 9: China Rohs Requirements (Cn)

    China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○...
  • Page 10: China Rohs Requirement (En)

    China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &...
  • Page 11: Table Of Contents

    COM1 (Serial Port) ............23 2.2.2 VGA (VGA Port) ............. 23 2.2.3 DP (Display Port) ............23 2.2.4 HDMI (HDMI Port) ............23 2.2.5 LAN1 (GbE Port) ............23 2.2.6 USB30_1 (2 x USB3.0 Port) ........... 24 2.2.7 LAN2 (GbE Port) ............24 www.gigaipc.com...
  • Page 12 2.2.26 SATA1 (SATA 6Gb/s connector) ........40 2.2.27 SATA2 (SATA 6Gb/s connector) ........41 2.2.28 F_PANEL (Front panel header) ........42 2.2.29 SYS_FAN2 ..............43 2.2.30 FUSB30 (USB 3.0 header) ..........44 2.2.31 FUSB20_1 (USB 2.0 header) .......... 45 2.2.32 FUSB20_2 (USB 2.0 header) .......... 46 www.gigaipc.com...
  • Page 13 2.2.39 PCIEX1_2 (PCIEX1 #2) ............ 53 2.2.40 PCIEX4 (PCIEX4) ............. 54 2.2.41 PCIEX1_1 (PCIEX1 #1) ............ 55 2.2.42 PCIE16X (PCIEX16) ............56 2.2.43 SYS_FAN1 (System Fan connector) ....... 57 2.2.44 CASE-OPEN ..............58 2.2.45 M2_M (M.2 M-Key) ............59 2.2.46 AMD Socket ..............60 www.gigaipc.com...
  • Page 14 www.gigaipc.com...
  • Page 15: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com...
  • Page 16 www.gigaipc.com...
  • Page 17: Specifications

    Specifications Motherboard uATX-RYZEN (MZRYZBM) Form Factor Micro ATX 244W x 244D (mm) Support AMD RYZEN2 7’5’3 CPU/APU AM4 µPGA 65W, Socket AM4 (Summit Ridge/Raven Ridge/Pinnacle Ridge) TDP under 65W L3 cache varies with CPU Socket 1 x Socket AM4 Chipset AMD B450 4 x DDR4 DIMM sockets, Max.
  • Page 18 Motherboard uATX-RYZEN (MZRYZBM) 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x USB 2.0 headers 4 x SATA 6Gb/s connectors 1 x CPU fan header Internal I/O 2 x System fan headers 1 x Internal Speaker header...
  • Page 19: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com...
  • Page 20: Jumpers And Connectors

    Jumpers and Connectors 27 26 25 www.gigaipc.com...
  • Page 21 DIMM A #1 20 DIMMA1 DIMM A #0 21 DIMMB0 DIMM B #1 22 DIMMB1 DIMM B #0 23 CLR_CMOS Clear CMOS jumper 24 ATX 25 SATA_3_4 SATA 6Gb/s Connectors 26 SATA1 SATA 6Gb/s Connector 27 SATA2 SATA 6Gb/s Connector www.gigaipc.com...
  • Page 22 37 SPK_OUT Speaker out connector 38 F_AUDIO Front audio header 39 PCIEX1_2 PCIEX1 #2 40 PCIEX4 PCIEX4 #2 41 PCIEX1_1 PCIEX1 #1 42 PCIEX16 PCIEX16 43 SYS_FAN1 System fan connector 44 CASE_OPEN 45 M2_M M.2 M-Key 46 AM4 CPU_Socket www.gigaipc.com...
  • Page 23: Com1 (Serial Port)

    2.2.1 COM1 (Serial Port) 2.2.2 VGA (VGA Port) 2.2.3 DP (Display Port) 2.2.4 HDMI (HDMI Port) 2.2.5 LAN1 (GbE Port) www.gigaipc.com...
  • Page 24: Usb30_1 (2 X Usb3.0 Port)

    2.2.6 USB30_1 (2 x USB3.0 Port) 2.2.7 LAN2 (GbE Port) 2.2.8 USB30_2 (2 x USB3.0 Port) 2.2.9 RUSB31_1 2.2.10 RUSB31_2 www.gigaipc.com...
  • Page 25: Audio (Audio Jack)

    2.2.11 AUDIO (Audio Jack) www.gigaipc.com...
  • Page 26: Jrs11, Jrs14, Jrs13, Jrs12

    2.2.12 JRS11, JRS14, JRS13, JRS12 (RS11, RS14, RS13, RS12 select jumper for serial port) Pin 1 JRS11, JRS14, JRS13, JRS12 Connector PN Vendor PH03N33BAAA00 HORNGTONG JRS11 JRS13 JRS12 JRS14 1-2 Close: RS-485 2-3 Close: RS-232 (Dafult-setting) www.gigaipc.com...
  • Page 27: Jcom11 (Com11 Ri# Pin Ri#/5V/12V Select)

    2.2.13 JCOM11 (COM11 RI# pin RI#/5V/12V Select) Pin 1 JCOM31, JCOM41 Jummper Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) (Default Setting) 5-6 Close: 12V (Power COM) www.gigaipc.com...
  • Page 28: Jcom12 (Rs-232/Rs-422/Rs-485 Select)

    2.2.14 JCOM12 (RS-232/RS-422/RS-485 select) Pin 1 JCOM32/42 Jummper Pin No. Definition RX232 1-2 Close: RS-232 RX422 3-4 Close: RS-422 RX485 5-6 Close: RS-485 Connector PN Vendor 222-97-03GBE1 PINREX www.gigaipc.com...
  • Page 29: Kb_Ms (Keyboard & Mouse Connector)

    2.2.15 KB_MS (Keyboard & Mouse connector) Pin 1 Power Connector Connector PN Vendor 721-81-06TW00 PINREX A2001MV-06P146 JOINT-TECH Pin No. Definition Power MSCLK MSDATA MBCLK MBDATA www.gigaipc.com...
  • Page 30: Atx_12V (Atx 2X2 Pin Power Connector)

    2.2.16 ATX_12V (ATX 2x2 pin power connector) Pin 1 Power Connector Connector PN Vendor 740-81-04TW56 PINREX 25104A0400B3-93LF ATRC Pin No. Definition +12V +12V www.gigaipc.com...
  • Page 31: Com2 (Serial Port Cable Connector)

    2.2.17 COM2 (Serial Port cable connector) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect RI/ 5V/ 12V www.gigaipc.com...
  • Page 32: Cpu_Fan (Cpu Fan Connector)

    2.2.18 CPU_FAN (CPU Fan connector) Pin 1 CPU FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition FANIO FANPWM www.gigaipc.com...
  • Page 33: Dimma0 (Dimm A #0)

    2.2.19 DIMMA0 (DIMM A #0) www.gigaipc.com...
  • Page 34: Dimma1 (Dimm A #1)

    2.2.20 DIMMA1 (DIMM A #1) www.gigaipc.com...
  • Page 35: Dimmb0 (Dimm B #0)

    2.2.21 DIMMB0 (DIMM B #0) www.gigaipc.com...
  • Page 36: Dimmb1 (Dimm B #1)

    2.2.22 DIMMB1 (DIMM B #1) www.gigaipc.com...
  • Page 37: Clr_Cmos (Clear Coms Jumper)

    2.2.23 CLR_CMOS (Clear COMS jumper) Pin 1 Clear COMS Jumper Connector PN Vendor 210-91-02GB01 PINREX PH02R23BAZ000 HORNGTONG Pin No. Definition Clear CMOS Open: Normal Operation (Default setting) Close: Clear COMS data. www.gigaipc.com...
  • Page 38: 2.2.24 Atx

    2.2.24 ATX Pin 1 www.gigaipc.com...
  • Page 39: Sata_3_4 (Sata 6Gb/S Connectors)

    2.2.25 SATA_3_4 (SATA 6Gb/s connectors) www.gigaipc.com...
  • Page 40: Sata1 (Sata 6Gb/S Connector)

    2.2.26 SATA1 (SATA 6Gb/s connector) www.gigaipc.com...
  • Page 41: Sata2 (Sata 6Gb/S Connector)

    2.2.27 SATA2 (SATA 6Gb/s connector) www.gigaipc.com...
  • Page 42: F_Panel (Front Panel Header)

    2.2.28 F_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com...
  • Page 43: 2.2.29 Sys_Fan2

    2.2.29 SYS_FAN2 Pin 1 System FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition FANIO FANPWM www.gigaipc.com...
  • Page 44: Fusb30 (Usb 3.0 Header)

    2.2.30 FUSB30 (USB 3.0 header) Pin 1 USB 3.0 Header Pin No. Definition P2_D+ P2_D- P2_TX+ P2_TX- Pin No. Definition P2_RX+ Power P2_RX- P1_RX- Power P1_RX+ No Pin Connector PN Vendor P1_TX- P1_TX+ 52X-80-20GU65 PINREX WUIR-19A9N4BU3W WINWIN P1_D- P1_D+ www.gigaipc.com...
  • Page 45: Fusb20_1 (Usb 2.0 Header)

    2.2.31 FUSB20_1 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com...
  • Page 46: Fusb20_2 (Usb 2.0 Header)

    2.2.32 FUSB20_2 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com...
  • Page 47: Tpm_Lpc (Trusted Platform Module Connector)

    2.2.33 TPM_LPC (Trusted Platform Module Connector) Pin 1 TPM Module Connector Pin No. Definition LAD1 TPM_DET LAD2 LAD3 LFRAME Pin No. Definition LPCCLK Connector PN Vendor 3VDUAL PFM RST 52M-90-14GBE7 PINREX VCC3 LAD0 IRQ_SERIAL www.gigaipc.com...
  • Page 48: Com3~6 (Serial Ports)

    2.2.34 COM3~6 (Serial Ports) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect RI/ 5V/ 12V www.gigaipc.com...
  • Page 49: Gpio_Cnt (General Propose Input/Output Header)

    2.2.35 GPIO_CNT (General Propose input/output header) Pin 1 GPIO Connector Pin No. Definition SMB_CLK SMB_DATA Pin No. Definition Connector PN Vendor GPO1 725-81-12TW00 PINREX GPI1 A2004WV-2X06P46 JOINT-TECH GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 www.gigaipc.com...
  • Page 50: At_Cn (At/Atx Power Mode Select Jumper)

    2.2.36 AT_CN (AT/ATX power mode select jumper) Pin 1 AT/ATX power mode select jumper Connector PN Vendor PH03N33BAAA00 HORNGTONG Pin No. Definition AT MODE Detect ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com...
  • Page 51: Spk_Out (Speaker Out Connector)

    2.2.37 SPK_OUT (Speaker out connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com...
  • Page 52: F_Audio (Front Audio Header)

    2.2.38 F_AUDIO (Front audio header) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L FAUDIO_JD MIC_R No Connect Detect LINE2_L LINE2_R www.gigaipc.com...
  • Page 53: Pciex1_2 (Pciex1 #2)

    2.2.39 PCIEX1_2 (PCIEX1 #2) www.gigaipc.com...
  • Page 54: Pciex4 (Pciex4)

    2.2.40 PCIEX4 (PCIEX4) www.gigaipc.com...
  • Page 55: Pciex1_1 (Pciex1 #1)

    2.2.41 PCIEX1_1 (PCIEX1 #1) www.gigaipc.com...
  • Page 56: Pcie16X (Pciex16)

    2.2.42 PCIE16X (PCIEX16) www.gigaipc.com...
  • Page 57: Sys_Fan1 (System Fan Connector)

    2.2.43 SYS_FAN1 (System Fan connector) Pin 1 System FAN Connector PN Vendor 744-81-045R11 PINREX WF04R22RJQ105 HORNGTONG Pin No. Definition FANIO FANPWM www.gigaipc.com...
  • Page 58: 2.2.44 Case-Open

    2.2.44 CASE-OPEN Pin 1 www.gigaipc.com...
  • Page 59: M2_M (M.2 M-Key)

    2.2.45 M2_M (M.2 M-Key) www.gigaipc.com...
  • Page 60: 2.2.46 Amd Socket

    2.2.46 AMD Socket www.gigaipc.com...
