2.2.8

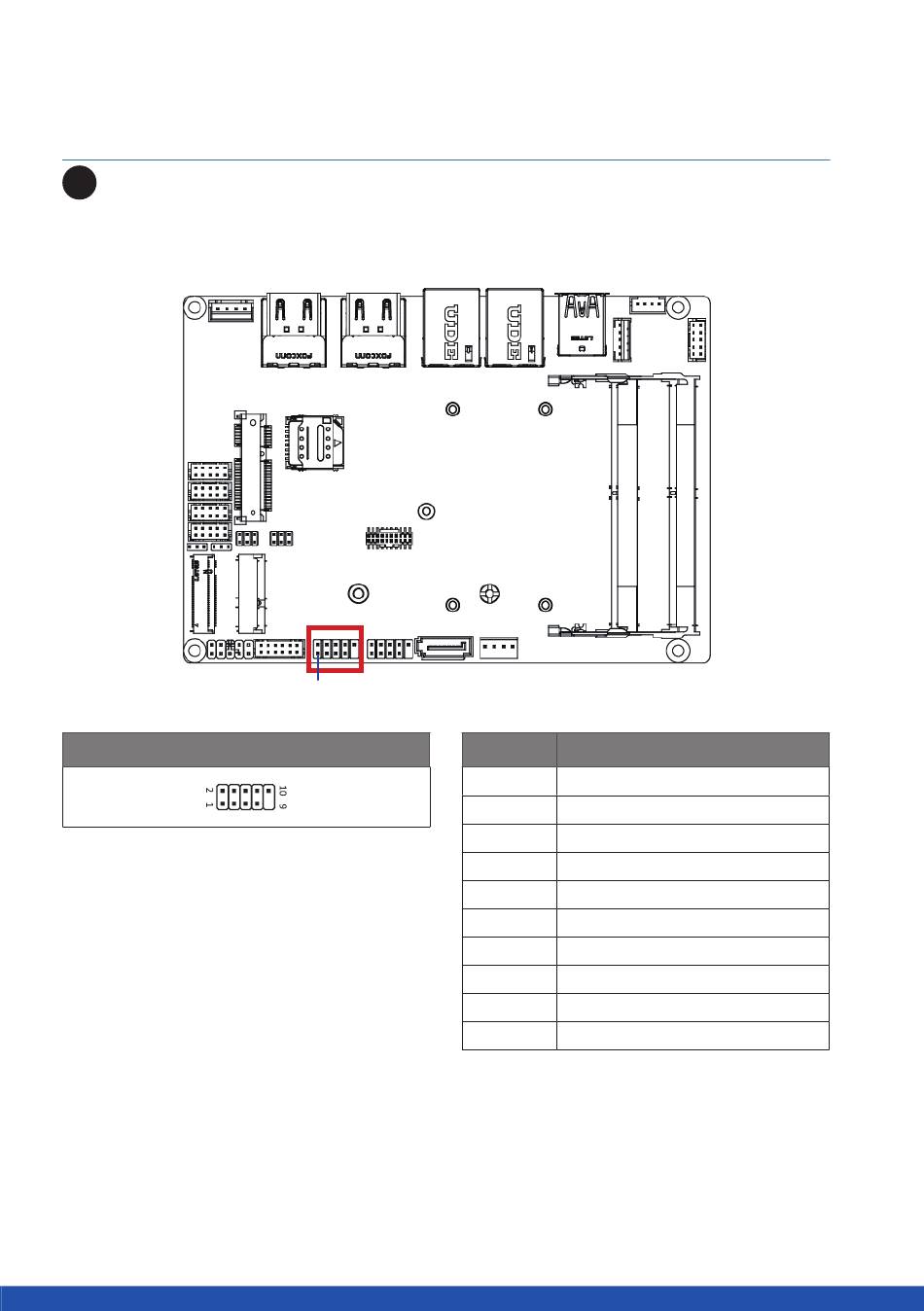

FUSB2_1 (USB 2.0 header)
8
USB 2.0 Header
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Pin 1
Pin No.
Definition
1
2
3
4
5
6
7
GND
8
GND
9
No Pin
10
No Connect
www.gigaipc.com
5V
5V
DX-
DY-
DX+
DY+
28
