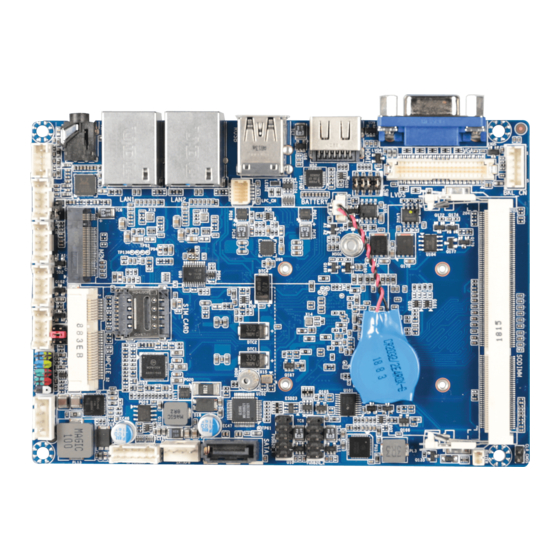

GIGAIPC QBiP-1900A User Manual

3.5” sbc boards
Hide thumbs Also See for QBiP-1900A:
Table of Contents

Advertisement

Quick Links

Download this manual
QBiP-1900A/QBiP-1900AT

3.5" SBC Boards- QBiP-1900A/QBiP-1900AT

User's Manual 1st Ed

1
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBiP-1900A and is the answer not in the manual?

Questions and answers

Related Manuals for GIGAIPC QBiP-1900A

Summary of Contents for GIGAIPC QBiP-1900A

  • Page 1: Sbc Boards- Qbip-1900A/Qbip-1900At

    QBiP-1900A/QBiP-1900AT 3.5” SBC Boards- QBiP-1900A/QBiP-1900AT User’s Manual 1st Ed www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 2: Copyright Notice

    GIGAIPC reserves the right to make changes in the product design without notice to its users. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 3: Acknowledgement

    IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 4: Packing List

    Item Quantity QBiP-1900A/QBiP-1900AT SATA power cable If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 5: About This Document

    (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 6: Safety Precautions

    11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 8: Fcc Statement

    Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 9: China Rohs Requirements (Cn)

    ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○ 连接器及线材 O： 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的限量要求以下。 X： 表示该有毒有害物质至少在该部件的 某一均质材料中的含量超出 SJ/T 11363-2006 标准规定的限量要求。 备注： 此产品所标示之环保使用期限， 系指在一般正常使用状况下。 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 10: China Rohs Requirement (En)

    SJ/T 11363-2006-stipulated requirement. Note: The Environment Friendly Use Period as labeled on this product is applicable under normal usage only www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 11: Table Of Contents

    SODIMM (DDR3L SO-DIMM) ..........25 2.2.6 BUZZER ................26 2.2.7 FUSB20_1, FUSB2_2 (USB 2.0 header) ......27 2.2.8 SATA (SATA 6 Gb/s Connector) ........28 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 12 2.2.18 MPCIE (M.2 Slot, E-key, NGFF2230, WiFi & Bluetooth module) ................38 2.2.19 LPC_CN (LPC Connector) ..........39 2.2.20 FAN (FAN Connector) ............40 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 13: Chapter1 - Product Specifications

    Chapter 1 Chapter1 - Product Specifications QBiP-1900A/QBiP-1900AT www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 14 GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 15: Specifications- Qbip-1900A/ Qbip-1900At

    Expansion Slots - Supoorts NGFF-2280 cards 1 x Mini-PCIe slot - Full card size - Support PCIe X1 + USB2.0 -- support 3G/4G module www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 16 Box Packing Capacity: 10pcs Packaging Content Carton size: 460 x 345 x 203(mm) Content: SATA Power cable*1 (25CRI-200B02-K1R) Motherboard : Motherboard : Order Information 9MBAYTASMR-SI 9MBAYTASMR-SI1 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 17: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 18: Jumpers And Connectors

    Jumpers and Connectors 23 24 www.gigaipc.com www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice. GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
  • Page 19 16 SPK_OUT Speaker out connector 17 M2M M.2 Slot, SATA, NGFF2280 18 MPCIE Mini PCIe full size, support 3G/4G module 19 LPC_CN LPC Connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 20: Hdmi Connector

    21 Audio out 22 LAN1, LAN2 LAN Connectors 23 RUSB1 USB3.0 Connector 24 RUSB2 USB2.0 Connector 25 HDMI HDMI Connector 26 VGA D-Sub VGA Port www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 21: Battery

    2.2.1 BATTERY Pin 1 Battery Cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V RTC www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 22: Lvds (Lvds Connector)

    Pin No. Definition Pin No. Definition Pin No. Definition Connector PN Vendor 3.3V 712-76-40GWE0 PINREX A1252WV-SF-2X20PD01 JOINT-TECH 3.3V SPEC0 SPED0 CLK2+ CLK1+ CLK2- CLK1- www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 23: Lsw (Lvds Resolution Jumper)

    1024 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 24: Bkl_Cn (Back Light Brightness Control Connector)

    BKL_CN (Back light brightness control connector) Pin 1 Back light brightness control connector Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 25: Sodimm (Ddr3L So-Dimm)

    2.2.5 SODIMM (DDR3L SO-DIMM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 26: Buzzer

    2.2.6 BUZZER Buzzer Connector PN Vendor 712-71-02TW01 PINREX A1250WV-02P JOINT-TECH Pin No. Definition -SPKR +VS5 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 27: Fusb20_1, Fusb2_2 (Usb 2.0 Header)

    FUSB20_1, FUSB2_2 (USB 2.0 header) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 28: Sata (Sata 6 Gb/S Connector)

    2.2.8 SATA (SATA 6 Gb/s Connector) Pin 1 SATA 6GB/S Connector SATAIII Connector PN Vendor WAT3M-07A1G3BU4W WINWIN ABA-SAT-054-S15 LOTES Pin No. Definition www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 29: Satapw (Sata 6 Gb/S Power Connector)

    2.2.9 SATAPW (SATA 6 Gb/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition +12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 30: Gpio_Cnt (General Purpose Input/Output Header)

    Pin 1 GPIO Connector Connector PN Vendor 725-81-12TW00 PINREX A2004WV-2X06P46 JOINT-TECH Pin No. Definition GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK SMB_DATA www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 31: Jcom11 (Com11 Ri# Pin Ri#/5V/12V Select)

    JCOM11 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: PH06N53BAZ000 HORNGTONG 5V (Power COM) 3-4 Close: RI (Stand COM) Default 5-6 Close: 12V (Power COM) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 32: Dc In (Dc In 1X4Pin Power Connector)

    2.2.12 DC IN (DC IN 1x4pin power connector) Pin 1 Battery Cable Connector Pin No. Definition DCIN Connector PN Vendor 753-81-04TW00 PINREX Pin No. Definition DCIN www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 33: Sys_Panel (Front Panel Header)

    Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 34: Com1, Com2, Com3, Com4 (Serial Port Header)

    2.2.14 COM1, COM2, COM3, COM4 (Serial port header) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Pin No. Definition DTRD No Connect RI/5V/12V www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 35: Spk_Out (Speaker Out Connector)

    Speaker out connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out R+ Speaker Out R- Speaker Out L- Speaker Out L+ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 36: At_Cn (At/Atx Power Mode Select Jumper)

    1-2 Close : AT mode. 220-96-03GB01 PINREX 2-3 Close : ATX mode. PH03N2-7BAN000 HORNGTONG (Default setting) Pin No. Definition AT MODE Detect ATX MODE www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 37: M2M (M.2 Slot, Sata, Ngff2280)

    2.2.17 M2M (M.2 Slot, SATA, NGFF2280) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 38: Mpcie (M.2 Slot, E-Key, Ngff2230, Wifi & Bluetooth Module)

    2.2.18 MPCIE (M.2 Slot, E-key, NGFF2230, WiFi & Bluetooth module) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 39: Lpc_Cn (Lpc Connector)

    2.2.19 LPC_CN (LPC Connector) Pin 1 LPC_CN Pin No. Definition CK_LPC1 LFRAME# LAD0 PLT_RST_80H LAD1 LAD3 LAD2 3.3V SERIRQ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

  • Page 40: Fan (Fan Connector)

    2.2.20 FAN (FAN Connector) Pin 1 CPU/System FAN Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed Control www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
