7500 Sediment Filter Installation & Startup Guide
Programming Your Valve
*IMPORTANT*: Before any operation, the valve menu must be unlocked. If the button lock
indicator is displayed, press and hold both the Up and Down buttons for 5 seconds. A sound will
indicate the menu is unlocked. The menu will re-lock automatically after 1 minute of inactivity.

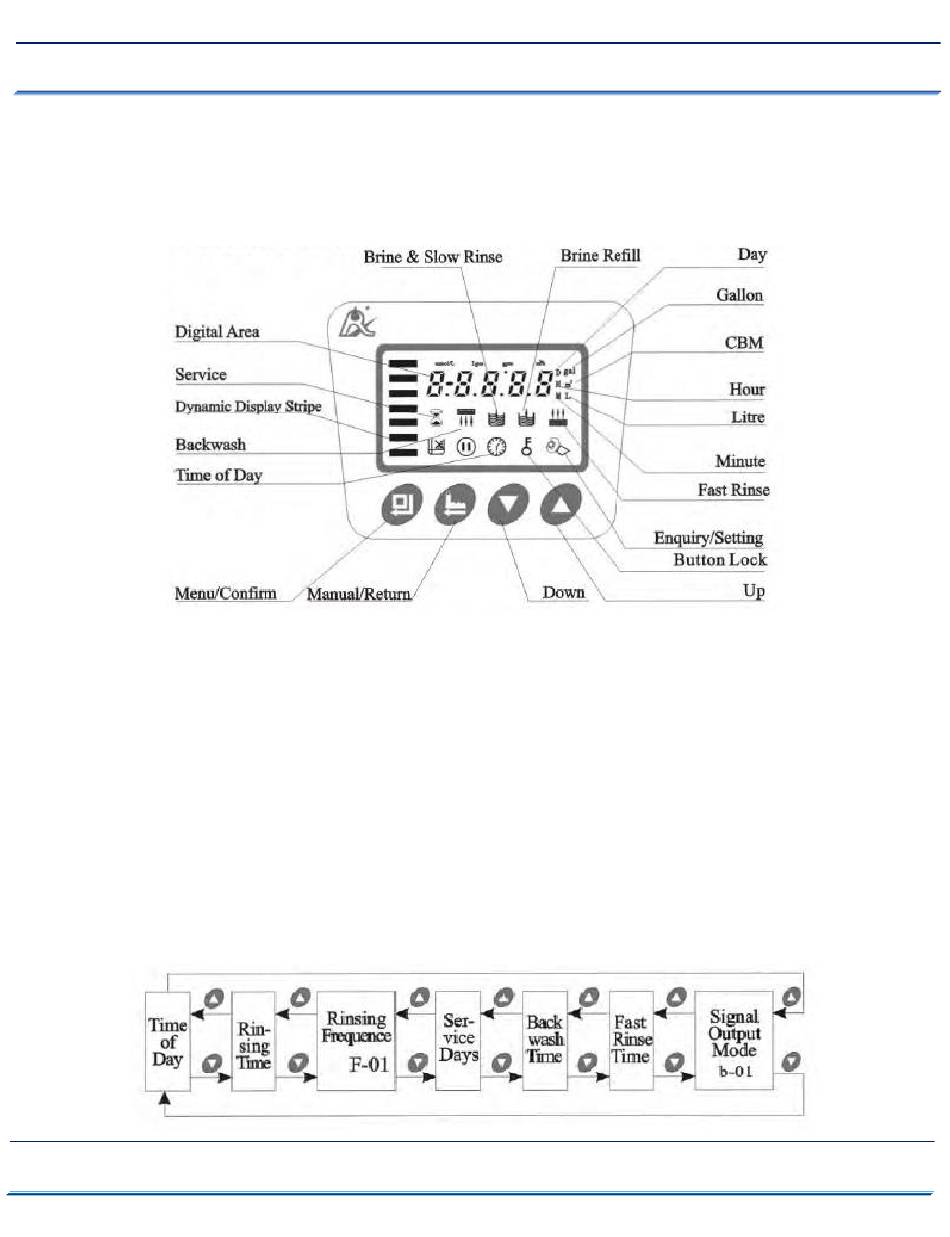

1. To begin programming your valve, unlock the menu and press the Menu/Confirm button. This
puts the valve into program display mode, indicated by the Enquiry/Setting icon being
displayed. The Enquiry/Setting icon is displayed whenever you are changing the parameter
of a programming mode.
2. The sequence of programming modes is shown in the diagram below. To switch between
modes, press the up or down button according to which direction your mode is. The modes
can only be changed when the Enquiry/Setting button is displayed and you are not currently
modifying any other parameter.
Page 8
www.cleanwaterstore.com
Rev 110916
