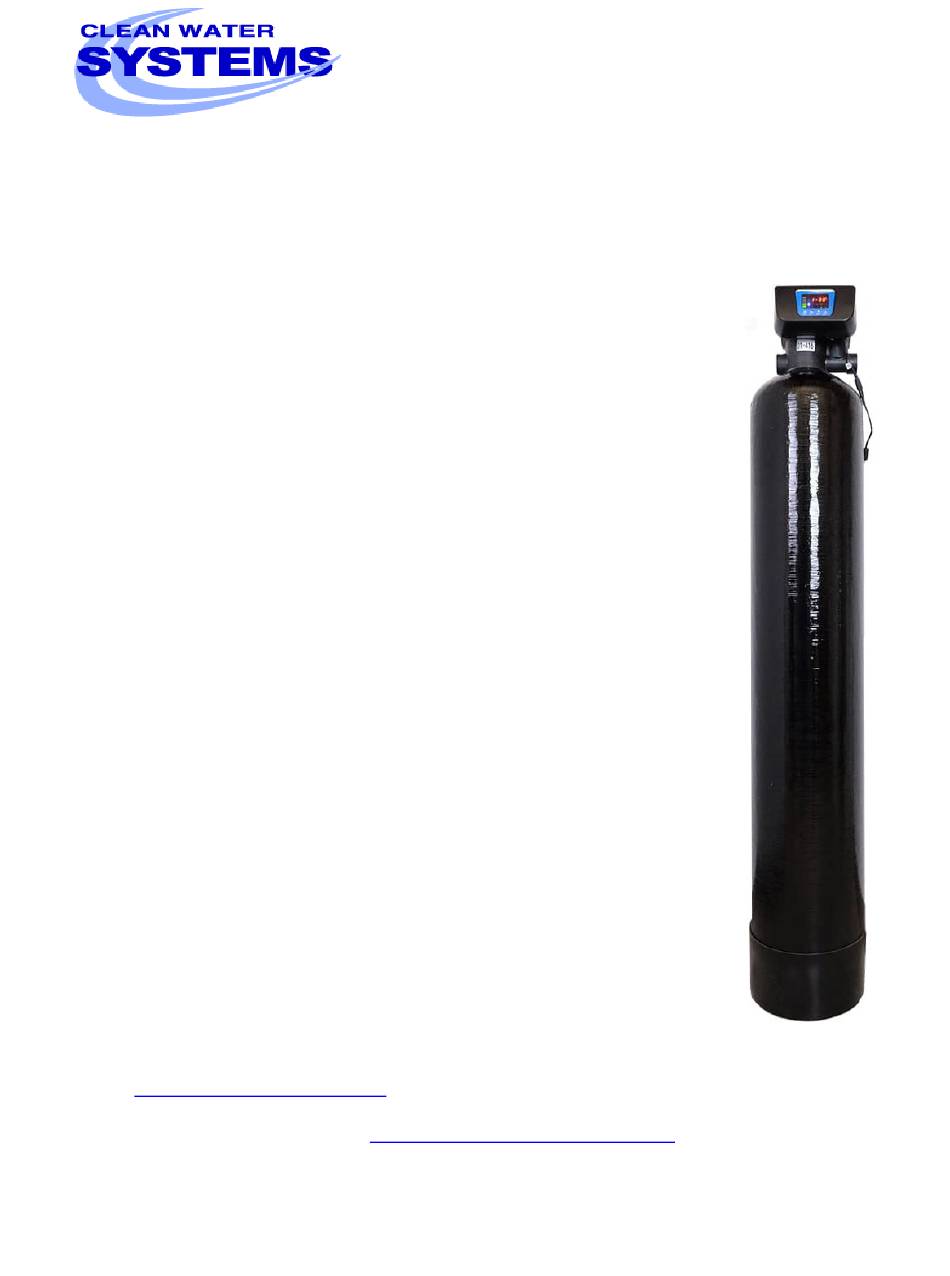

Clean Water Made Easy
www.cleanwaterstore.com
7500-M Pro-Ox Filter Installation Guide
Thank you for purchasing a Clean Water System! With proper installation and a
little routine maintenance your system will be providing iron free water for many
years.
Please review this start-up guide entirely before beginning to install your system
and follow the steps outlined for best results.
The Pro-OX 7500-M Iron Filter media must be activated with a 1 cup of un-
scented liquid chlorine bleach when first installing it. Read instructions for more
information. It is easy to do, but a critical step.
The Pro-OX media produces very small particles (fines) when the system is first
installed. Bring the water pressure up VERY slowly during the initial backwash by
opening inlet valve slowly to avoid pushing the media up into the control head.
Performing multiple backwashes at start-up is an important step.
You should also not bring any other systems online (i.e. softeners, filters, etc.)
until the Pro-Ox system is fully flushed. Depending on the water quality, this may
take several backwashes and a week or two of normal water use.
The Pro-OX media contains dust. Use paper mask and ventilate area to avoid
breathing dust when first pouring the media into the tank.
Minimum 30 PSI required. Maximum pressure 90 PSI.
For indoor installation. Protect from sunlight, rain, and freezing.
Questions?
Call us toll-free: 1-888-600-5426 or 1-831-462-8500
Email us:
support@cleanwaterstore.com
See more information on our website:
www.cleanwaterstore.com/resources

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7500-M and is the answer not in the manual?

Questions and answers

Related Manuals for Clean Water Systems 7500-M

Summary of Contents for Clean Water Systems 7500-M

  • Page 1 Please review this start-up guide entirely before beginning to install your system and follow the steps outlined for best results. The Pro-OX 7500-M Iron Filter media must be activated with a 1 cup of un- scented liquid chlorine bleach when first installing it. Read instructions for more information.

  • Page 2: Table Of Contents

    Installation of Your System in Copper or Metal Piping Systems: ..............6 How Your Pro-Ox Iron Filter Works: ......................7 Assembly and Installation Instructions: ......................8 Programming Your Valve and Setting Time and Days for Backwash ............9 Initial Backwash ............................12 Maintenance: .............................. 14 Troubleshooting the 7500-M Pro-Ox Filter:....................14...

  • Page 3: Packing Lists

    Packing Lists All systems include: 7500-M control valve, qty 3 female NPT to BSP black pipe adapters, power supply, funnel for adding media, top screen, start-up guide, and items included in one of the following options: Find Your Size System to See What is Included: Pro-Ox Filter 0.75 cubic foot size...

  • Page 4: Pre-Installation

    7500-M Pro-Ox Filter Installation & Startup Guide Pre-Installation 1. Review your packing list and make sure you have received all the parts before installation. 2. If you are going to be turning off the water to the house and you have an electric water heater, shut off the power to the water heater before beginning installation in case water heater is accidentally drained.
  • Page 5 (See Build Your Bypass). 8. If you will be using copper piping, do not sweat the copper pipe directly on to the 7500-M control valve. Avoid heating up the control valve plastic with the torch.

  • Page 6: Installation Of Your System In Copper Or Metal Piping Systems

    7500-M Pro-Ox Filter Installation & Startup Guide Installation of Your System in Copper or Metal Piping Systems: If your new filter system is to be installed in a metal (conductive) plumbing system, i.e. copper or galvanized steel pipe, the plastic components of the system will interrupt the electrical continuity of the plumbing system.

  • Page 7: How Your Pro-Ox Iron Filter Works

    7500-M Pro-Ox Filter Installation & Startup Guide How Your Pro-Ox Iron Filter Works: Water enters the top of the tank and flows down through the media and up the distributor tube. The backwashing Pro-Ox Filter removes sediment and is automatically backwashed.

  • Page 8: Assembly And Installation Instructions

    7500-M Pro-Ox Filter Installation & Startup Guide Assembly and Installation Instructions: Note: Verify the distributor tube is seated into the bottom of the tank and the top of the tube is level with the top of the tank prior to adding media.

  • Page 9: Programming Your Valve And Setting Time And Days For Backwash

    7500-M Pro-Ox Filter Installation & Startup Guide 10. Install the control valve onto the tank and tighten enough to seal the O-ring. Do not overtighten the control valve to the tank as damage may occur. 11. Mate your Inlet, Outlet, and Drain line connections to your plumbing. If using flex lines to your inlet and outlet connections, thread tape or sealant is not required.
  • Page 10 7500-M Pro-Ox Filter Installation & Startup Guide 2. The sequence of programming modes is shown in the diagram below. To switch between modes, press the up or down button according to which direction your mode is. The modes can only be changed when the Enquiry/Setting button is displayed, and you are not currently modifying any other parameter.
  • Page 11 After configuring, press the Manual/Return button to exit programming mode. NOTE: Your 7500-M Iron filter may be manually adjusted to backwash using the knob on top of the unit. This could be useful during a prolonged power outage. Turn the knob in the clockwise direction to the position required by lining up the indicator.

  • Page 12: Initial Backwash

    7500-M Pro-Ox Filter Installation & Startup Guide Initial Backwash Note: After programming, the system must be run through several initial backwash / Rinse cycles to remove any fine particles from the media. During these initial backwashes you will notice the effluent coming from the drain will be very dark and lighten up after several cycles.
  • Page 13 7500-M Pro-Ox Filter Installation & Startup Guide Note: It is very important to bring the water pressure into the unit at a slow rate initially. If the initial flow rate is to high, it could result in pushing the media up into the top screen or control valve possibly resulting in the system not functioning properly.

  • Page 14: Maintenance

    7500-M Pro-Ox Filter Installation & Startup Guide Maintenance: No weekly or monthly maintenance is required. Troubleshooting the 7500-M Pro-Ox Filter: If you notice a decreased flow coming out of the system during normal operation, verify the backwash flow rate is sufficient by closing the outlet valve, advancing the system to backwash, and run the drain line into a bucket and time the effluent to calculate the gallons per minute.
