7500 Sediment Filter Installation & Startup Guide
Assembly and Installation Instructions:

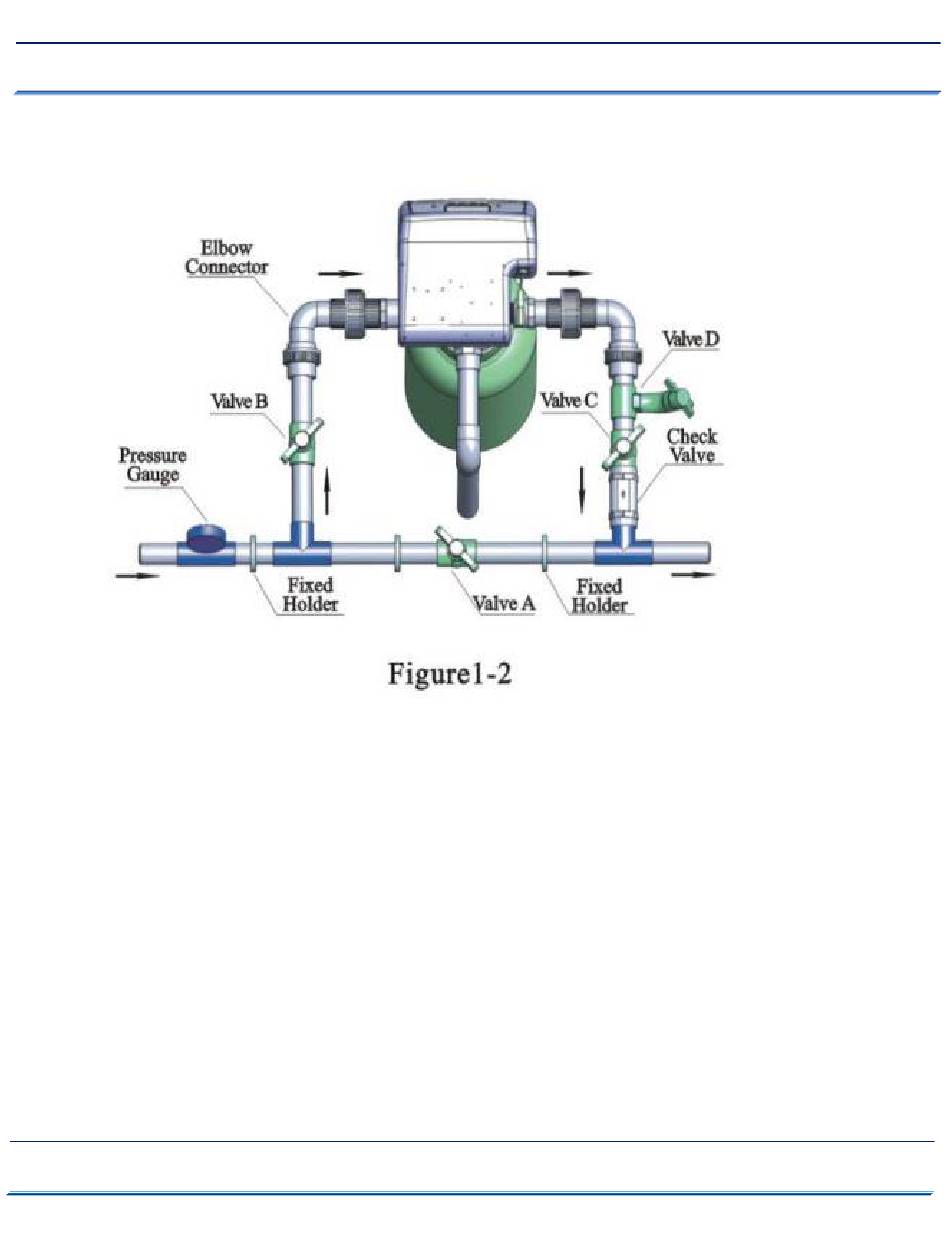

The 7500 Does not come with a pre-made bypass; you have to build one yourself. Schedule 40 or 80
PVC, or Pex pipe is okay to use. You also can get a pair of flex lines- instead of the unions shown where
the Elbow Connector is, you could have slip by male fittings, then flex lines, then male nipples, and then
you do not have to worry about plumbing it with too much pipe deflection- this must be avoided, as
pipe deflection will put undue pressure on the control valve threads which may then crack.
Page 6
www.cleanwaterstore.com
Rev 110916
