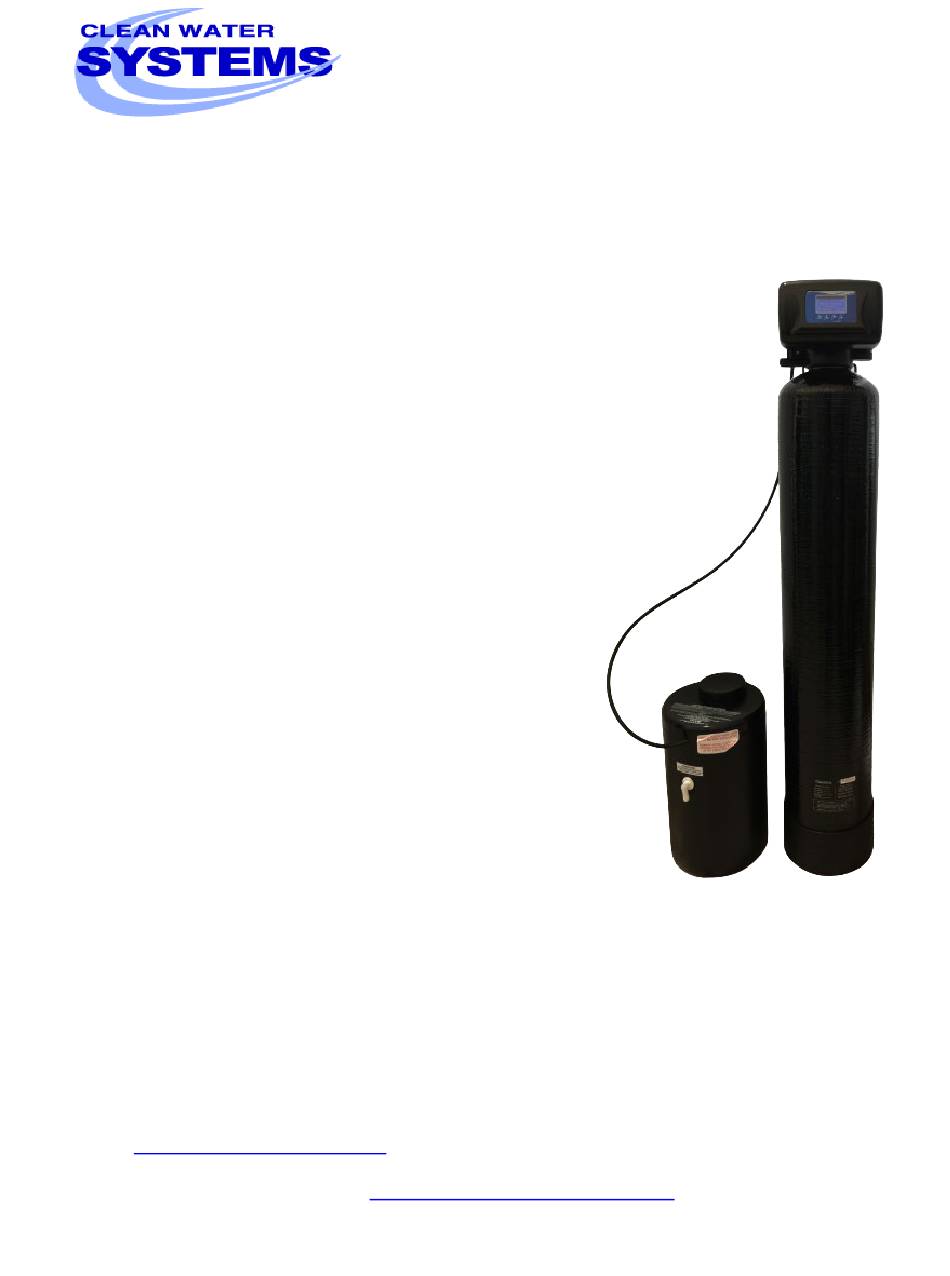

7500-REV2.5 Greensand Filter Installation
Guide
Thank you for purchasing a Clean Water System!
With proper installation and a little routine maintenance your
system will be providing iron free water for many years.
Please review this start‐up guide entirely before beginning to
install your system, and follow the steps outlined for best
results.
Minimum pressure of 30 PSI recommended.
Maximum pressure recommended 80 PSI.
For indoor installation only.
Protect from sunlight, rain, and freezing.
GREENSAND MEDIA CONTAINS DUST.
USE MASK TO AVOID BREATHING DUST.
No potassium permanganate granules included.
Order separately.
Questions?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us:
support@cleanwaterstore.com
See more information on our website:
www.cleanwaterstore.com/resources
Advertisement
Table of Contents
Related Manuals for Clean Water Systems 7500-REV2.5
Summary of Contents for Clean Water Systems 7500-REV2.5
- Page 1 Clean Water Made Easy www.cleanwaterstore.com 7500-REV2.5 Greensand Filter Installation Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing iron free water for many years. Please review this start‐up guide entirely before beginning to install your system, and follow the steps outlined for best results.
-
Page 2: Table Of Contents
Table of Contents Packing Lists ..............................3 Pre‐Installation .............................. 4 Best Practices for Piping & Drain Installation: ....................4 How the Bypass Valve Works ........................5 Installation of Your System in Copper or Metal Piping Systems: ..............5 How Your Greensand Filter Works: ......................6 Diagram of Typical Installation Well Water .................... -
Page 3: Packing Lists
7500-Rev2.5 Greensand Filter Installation & Startup Guide Packing Lists All systems include: 7500‐REV2.5 control valve, small tube of silicone grease, bypass valve, power supply, funnel for adding media, top screen, start‐up guide, and items included in one of the following options: Find Your Size System to See What is Included: Greensand Filter 0.75 cubic foot size... -
Page 4: Pre-Installation
7500-Rev2.5 Greensand Filter Installation & Startup Guide Pre-Installation 1. Review your packing list and make sure you have received all the parts before installation. 2. If you are going to be turning off the water to the house and you have an electric water heater, shut off the power to the water heater before beginning installation in case water heater is accidentally drained. -
Page 5: How The Bypass Valve Works
7500-Rev2.5 Greensand Filter Installation & Startup Guide How the Bypass Valve Works Turn knob so the valve is bypassed when installing. When you go to start up system turn the bypass SLOWLY to let water in and put in service. -
Page 6: How Your Greensand Filter Works
7500-Rev2.5 Greensand Filter Installation & Startup Guide How Your Greensand Filter Works: Water enters the top of the tank and flows down through the media and up the distributor tube. Iron and manganese are removed and trapped in the greensand media. -
Page 7: Filter Tank Assembly And Installation Instructions
7500-Rev2.5 Greensand Filter Installation & Startup Guide Filter Tank Assembly and Installation Instructions: 1. Wrap the top of distributor tube with electrical or duct tape so that no gravel or Greensand media will go down the distributor tube when adding the media. -
Page 8: Pot Perm Tank Set Up
7500-Rev2.5 Greensand Filter Installation & Startup Guide 14. IMPORTANT: you must program the time and then start a backwash and rinse. The filter system must be backwashed and rinsed several times before using. See following pages for instructions. Pot Perm Tank Set Up 1. -
Page 9: Programming Your Valve And Setting Time And Days For Backwash
7500-Rev2.5 Greensand Filter Installation & Startup Guide Programming Your Valve and Setting Time and Days for Backwash How to Start a Manual Backwash: Press the Back / Regen button Pressing “Back Regen” at any time results in an immediate manual regeneration. -
Page 10: Set Time Of Day
7500-Rev2.5 Greensand Filter Installation & Startup Guide Set Time of Day 1. If LOCK icon is lit, press, and hold both UP and DOWN buttons for 3 seconds to unlock keypad. 2. Then press the MENU/CONFIRM button to enter the main menu. - Page 11 7500-Rev2.5 Greensand Filter Installation & Startup Guide Set Regen Time This is the time your system will backwash. Default is 2:00 AM Set Backwash Time Length Set for 10 minutes. This is the first cycle. Set B. S. R. Time “Brine Slow Rinse”...
-
Page 12: Start The First Backwash
7500-Rev2.5 Greensand Filter Installation & Startup Guide Start the First Backwash 1 After programming, the system must be run through 2 or 3 backwash/rinse regeneration cycles to clean the new filter media. 2 Start with both bypass valves in the Bypass Position. -
Page 13: Advanced Programming Mode
7500-Rev2.5 Greensand Filter Installation & Startup Guide Advanced Programming Mode The Advanced Programming Mode allows you to set the Regen Cycle and Regen Mode. Skip this for most applications as your filter system has already been set to correct modes. -
Page 14: When To Add More Potassium Permanganate
7500-Rev2.5 Greensand Filter Installation & Startup Guide When to Add More Potassium Permanganate Add one 5‐lb jug of potassium permanganate every 3 ‐ 4 months. Check the potassium permanganate solution tank and when you see the mound of potassium permanganate disappear after a few months, just add another 5‐lb jug. -
Page 15: Exploded Parts View
7500-Rev2.5 Greensand Filter Installation & Startup Guide Exploded Parts View www.cleanwaterstore.com rev012122... - Page 16 7500-Rev2.5 Greensand Filter Installation & Startup Guide www.cleanwaterstore.com rev012122...
-
Page 17: 7500-Rev2.5 Water Filters Limited Warranty
7500-Rev2.5 Greensand Filter Installation & Startup Guide 7500-Rev2.5 Water Filters Limited Warranty We warrant this water filter when installed according to factory recommendations, to be free from defects in materials and workmanship as follows: ‐‐‐‐‐‐‐‐‐‐Limited Warranty‐‐‐‐‐‐‐‐‐‐ This water conditioner unit is comprised of the finest industry components available. Each individual component used in the assembly of our equipment is covered by the original equipment manufacturer’s warranty.
