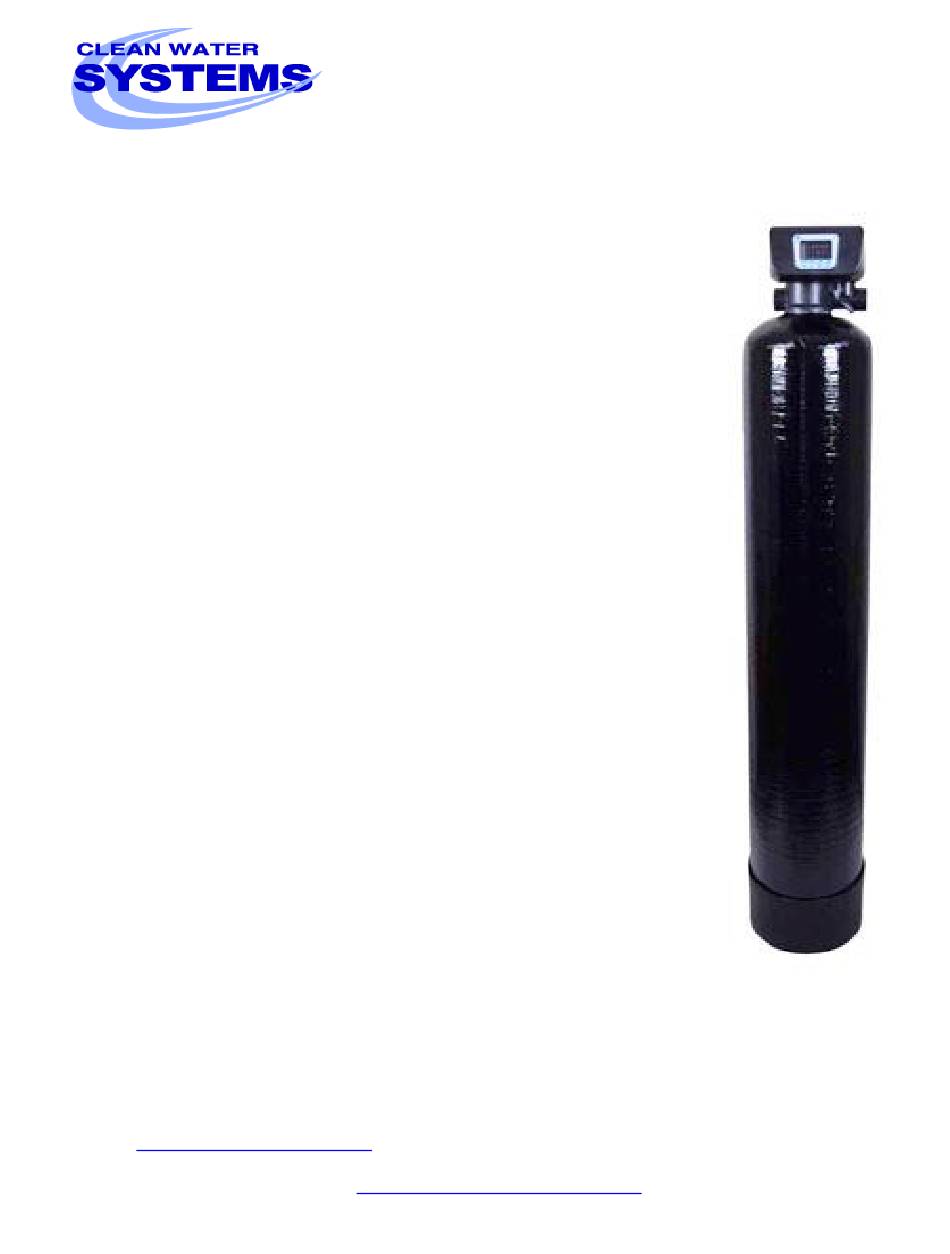

Clean Water Made Easy
www.cleanwaterstore.com

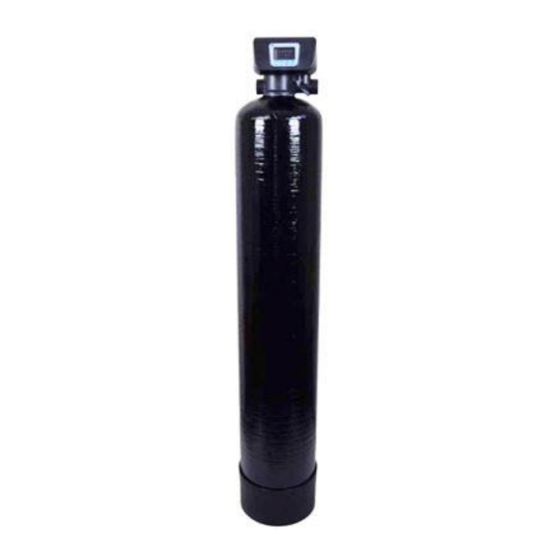

7500 Sediment Filter Installation & Start-
Up Guide
Thank you for purchasing a Clean Water System. With proper installation and a little
routine maintenance your system will be providing sediment free water for many
years.
Please review this start‐up guide entirely before beginning to install your system, and
follow the steps outlined for best results.
SEDIMENT MEDIA CONTAINS DUST. USE PAPER MASK AND VENTILATE TO AVOID
BREATHING DUST.
Questions?
Call us toll-free: 1-888-600-5426 or 1-831-462-8500
Email us:
support@cleanwaterstore.com
See more information on our website:
www.cleanwaterstore.com/resources
CWS 7500 Sediment Filter Guide
REV 110916
Advertisement
Table of Contents
Related Manuals for Clean Water Systems 7500
Summary of Contents for Clean Water Systems 7500
- Page 1 Clean Water Made Easy www.cleanwaterstore.com 7500 Sediment Filter Installation & Start- Up Guide Thank you for purchasing a Clean Water System. With proper installation and a little routine maintenance your system will be providing sediment free water for many years.
-
Page 2: Table Of Contents
Installation of Your System into Copper or Metal Piping Systems ............4 How Your Sediment Filter Works ........................4 Fig 2: Typical Sediment Filter 7500 piping installation with ball valve and hose bib after the filter ..5 Assembly and Installation Instructions: ......................6 Programming Your Valve .......................... -
Page 3: Pre-Installation
1. See typical installation on page 7 (Fig 2). The Sediment Filter is installed after the pressure tank. 2. Make sure to connect the IN pipe to the 7500 inlet and the OUT pipe to the outlet (see Fig 2) and install a 3 valve bypass around the system. -
Page 4: Installation Of Your System Into Copper Or Metal Piping Systems
7500 Sediment Filter Installation & Startup Guide Installation of Your System into Copper or Metal Piping Systems If your new filter system is to be installed in a metal (conductive) plumbing system, i.e. copper or galvanized steel pipe, the plastic components of the system will interrupt the electrical continuity of the plumbing system. -
Page 5: Fig 2: Typical Sediment Filter 7500 Piping Installation With Ball Valve And Hose Bib After The Filter
7500 Sediment Filter Installation & Startup Guide Fig 2: Typical Sediment Filter 7500 piping installation with ball valve and hose bib after the filter Page 5 www.cleanwaterstore.com Rev 110916... -
Page 6: Assembly And Installation Instructions
Assembly and Installation Instructions: The 7500 Does not come with a pre-made bypass; you have to build one yourself. Schedule 40 or 80 PVC, or Pex pipe is okay to use. You also can get a pair of flex lines- instead of the unions shown where... - Page 7 It is OK to run the drain line up and over the 7500 Sediment Filter up to 4 feet above the top of the tank. If the drain line will be more than 20 feet, use larger diameter tubing such as ¾”...
-
Page 8: Programming Your Valve
7500 Sediment Filter Installation & Startup Guide Programming Your Valve *IMPORTANT*: Before any operation, the valve menu must be unlocked. If the button lock indicator is displayed, press and hold both the Up and Down buttons for 5 seconds. A sound will indicate the menu is unlocked. - Page 9 7500 Sediment Filter Installation & Startup Guide 1) To change the Time of Day: Change programming mode to Time of Day ( [00:00] and time of day icon displayed ). The hour and Enquiry/Setting icon will be flashing. Change the hour value with the Up/Down buttons, then press Enquiry/Setting to move onto the minute value.
-
Page 10: Initial Backwash
7500 Sediment Filter Installation & Startup Guide Enquiry/Setting button and use the Up/Down buttons to set it to [2-10:00]. Press Enquiry/Setting to confirm the backwash time. 6) To change the Fast Rinse Time: The fast rinse time is the amount of time (in minutes) that the system will rinse for. -
Page 11: Maintenance
Sediment filter. You can verify the backwash flow rate by running the drain line into a bucket and timing it when the 7500 is in Cycle 1 or backwash. A 1.0 or 1.5 cubic foot system should have 5 gallons per minute and a 2.5 cubic foot system should have 10 gallons per minute of backwash. -
Page 12: Initial Backwash Media Lifted Into Control Head
7500 Sediment Filter Installation & Startup Guide Initial Backwash Media Lifted Into Control Head Sometimes, when doing the Initial Backwash, the media gets lifted up into the control head. You can tell this happened because you will have little or no flow, either going out to drain while in the backwash positon, or when in the service positon.
