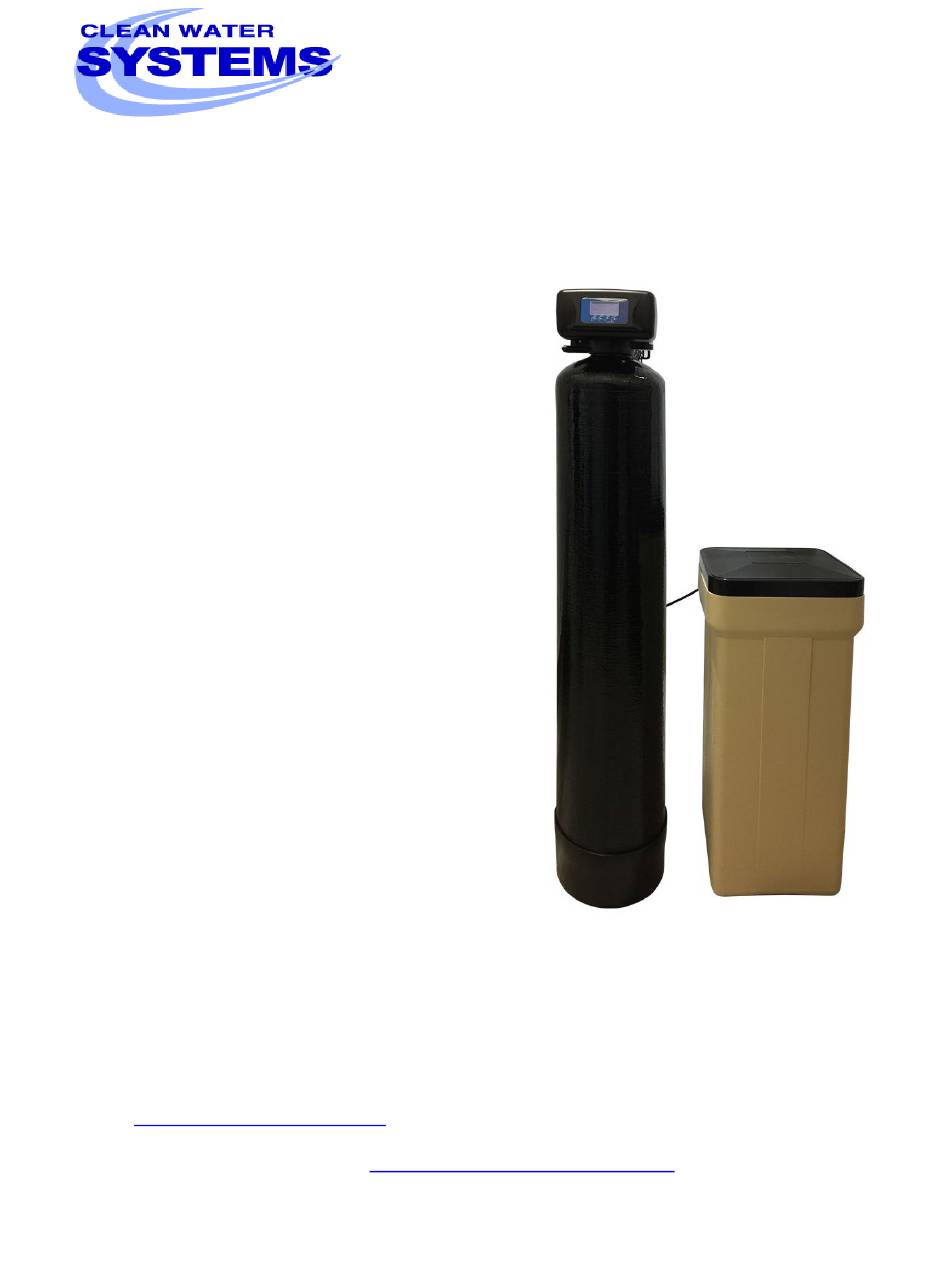

7500-REV4 Nitrate Filter Installation Guide
Thank you for purchasing a Clean Water System!
Please review this start‐up guide entirely before beginning
to install your system, and follow the steps outlined for
best results.
Minimum pressure of 30 PSI recommended.
Maximum pressure recommended 80 PSI.
For indoor installation only.
Protect from sunlight, rain, and freezing.
Nitrate levels can change in well water. It is
important to check for nitrate levels before and after
you system on a regular basis.
We recommend you have a home nitrate test kit and
then have the water tested at a lab annually.
Questions?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us:
support@cleanwaterstore.com
See more information on our website:
www.cleanwaterstore.com/resources
