Clean Water Made Easy
www.cleanwaterstore.com

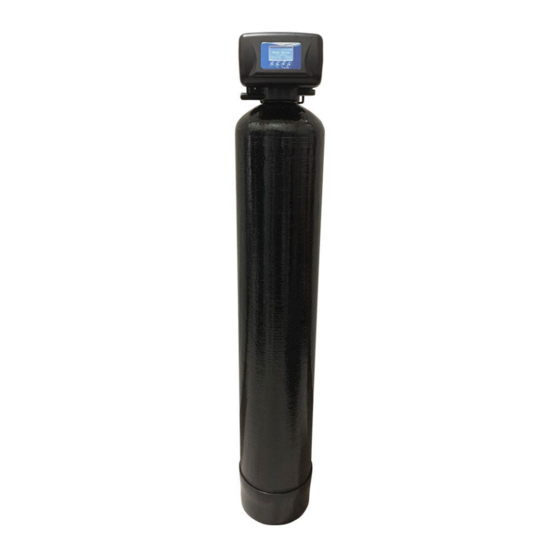

7500-REV4 Sediment Backwash Filter
Installation Guide
Thank you for purchasing a Clean Water System!
Please review this start‐up guide entirely before beginning to install your system,
and follow the steps outlined for best results.
Minimum pressure of 30 PSI recommended.
Maximum pressure recommended 80 PSI.
For indoor installation only.
Protect from sunlight, rain, and freezing.
TURBIDEX MEDIA CONTAINS DUST.
USE MASK TO AVOID BREATHING DUST.
OK to wet down media with spray bottle
Questions?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us:
support@cleanwaterstore.com
See more information on our website:
www.cleanwaterstore.com/resources

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7500-REV4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clean Water Systems 7500-REV4

Summary of Contents for Clean Water Systems 7500-REV4

  • Page 1 Clean Water Made Easy www.cleanwaterstore.com 7500-REV4 Sediment Backwash Filter Installation Guide Thank you for purchasing a Clean Water System! Please review this start‐up guide entirely before beginning to install your system, and follow the steps outlined for best results. Minimum pressure of 30 PSI recommended.

  • Page 2: Table Of Contents

    Table of Contents Packing Lists ..............................3 Pre‐Installation .............................. 4 Best Practices for Piping & Drain Installation: ....................4 How the Bypass Valve Works ........................5 Installation of Your System with Copper or Metal Piping Systems .............. 5 How Your Sediment Backwash Filter Works: ....................6 Diagram of Typical Installation Well Water ....................

  • Page 3: Packing Lists

    7500-REV4 Sediment Backwash Filter Guide Packing Lists All systems include: 7500‐REV4 control valve, bypass valve, power supply, funnel for adding media, start‐up guide, and items included in one of the following options: Find Your Size System to See What is Included: Sediment Backwash Filter 0.

  • Page 4: Pre-Installation

    7500-REV4 Sediment Backwash Filter Guide Pre-Installation 1. Review your packing list and make sure you have received all the parts before installation. 2. If you are going to be turning off the water to the house and you have an electric water heater, shut off the power to the water heater before beginning installation in case water heater is accidentally drained.

  • Page 5: How The Bypass Valve Works

    7500-REV4 Sediment Backwash Filter Guide How the Bypass Valve Works Turn knob so the valve is bypassed when installing. After start up move the valve to in normal service. Installation of Your System with Copper or Metal Piping Systems If your new filter system is to be installed in a metal (conductive) plumbing system, i.e., copper, or galvanized steel pipe, the plastic components of the system will interrupt the electrical continuity of the plumbing system.

  • Page 6: How Your Sediment Backwash Filter Works

    7500-REV4 Sediment Backwash Filter Guide How Your Sediment Backwash Filter Works: Water enters the top of the tank and flows down through the media and up the distributor tube. The backwashing Sediment Backwash Filter removes sediment and is automatically backwashed.

  • Page 7: Diagram Of Typical Installation Well Water

    7500-REV4 Sediment Backwash Filter Guide Diagram of Typical Installation Well Water Diagrams of Typical Installation City Water www.cleanwaterstore.com rev12821...

  • Page 8: Tank Assembly And Installation Instructions

    7500-REV4 Sediment Backwash Filter Guide Tank Assembly and Installation Instructions: 1. Wrap the top of distributor tube with electrical or duct tape so that no gravel or Turbidex media will go down the distributor tube when adding the media. 2. Make sure you “test fit” distributor tube, find divot that keeps tube centered, before adding gravel so distributor tube does not extend past top of tank.
  • Page 9 7500-REV4 Sediment Backwash Filter Guide 11. Insert meter cable into meter cable port on bypass. 12. Install inlet and outlet piping and hook up drain line tubing to drain. 13. If you are in earthquake zone, strap your backwash filter tank to wall with metal strapping.

  • Page 10: Programming Your Valve And Setting Time And Days For Backwash

    7500-REV4 Sediment Backwash Filter Guide Programming Your Valve and Setting Time and Days for Backwash How to Start a Manual Backwash: Press the Back / Regen button Pressing “Back Regen” at any time results in an immediate manual regeneration. Pressing and holding for 3 seconds, when system is locked, results in a delayed regeneration at the preselected time.

  • Page 11: Set The Current Time Of Day

    7500-REV4 Sediment Backwash Filter Guide Set the Current Time of Day 1. If LOCK icon is lit, press, and hold both UP and DOWN buttons for 3 seconds to unlock keypad. 2. Then press the MENU/CONFIRM button to enter the main menu.

  • Page 12: Start The Initial Backwash

    7500-REV4 Sediment Backwash Filter Guide Set Regen Time This is the time your system will backwash. Default is 2:00 AM Set Backwash Time Set for 10 minutes. Set B.S.R. Time Not used. Keep or change to 0 minutes. Set Fast Rinse Time Set for 8 minutes.

  • Page 13: Advanced Programming Mode

    7500-REV4 Sediment Backwash Filter Guide 7 After the backwash, the system will automatically go into the fast rinse stage. The control valve will return to service status (indicated by the up flowing meter on the left) after the backwash and rinse are complete.

  • Page 14: Advanced Programming Recommended Settings

    7500-REV4 Sediment Backwash Filter Guide Advanced Programming Recommended Settings Review Company Info CWS 831‐462‐8500 Set Valve Model 62605 Set Language English Set Company Info CWS 831‐462‐8500 Set Hour Mode 12 HR Set Time of Day Current time of day Set Date...

  • Page 15: Maintenance

    If you notice a pressure loss you might consider changing the backwash to every 2 or 3 or in some cases every day if there is a lot of sediment (also depends on amount of water you are using). Troubleshooting the 7500-REV4 Sediment Backwash Filter Backwash Flow Rate One problem that may occur is if you do not have enough backwash flow rate to properly clean the Sediment Backwash Filter.

  • Page 16: 7500-Rev4 Water Filters Limited Warranty

    7500-REV4 Sediment Backwash Filter Guide 7500-Rev4 Water Filters Limited Warranty We warrant this water filter when installed according to factory recommendations, to be free from defects in materials and workmanship as follows: ‐‐‐‐‐‐‐‐‐‐Limited Warranty‐‐‐‐‐‐‐‐‐‐ This water conditioner unit is comprised of the finest industry components available. Each individual component used in the assembly of our equipment is covered by the original equipment manufacturer’s warranty.
