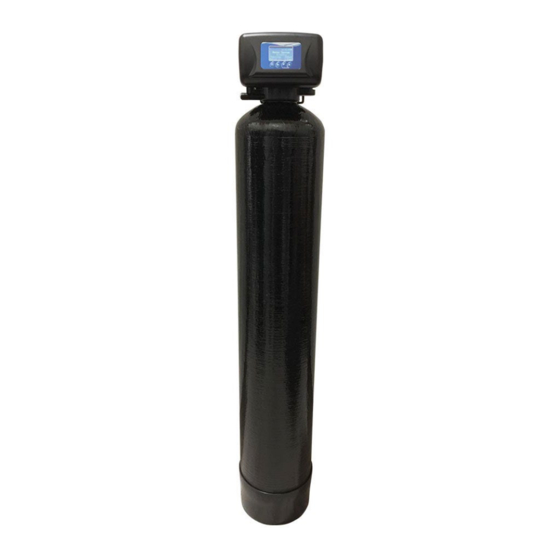

Clean Water Systems 7500-REV4 Installation Manual

Carbon filter
Hide thumbs Also See for 7500-REV4:
Table of Contents

Advertisement

Quick Links

Download this manual
Clean Water Made Easy
www.cleanwaterstore.com

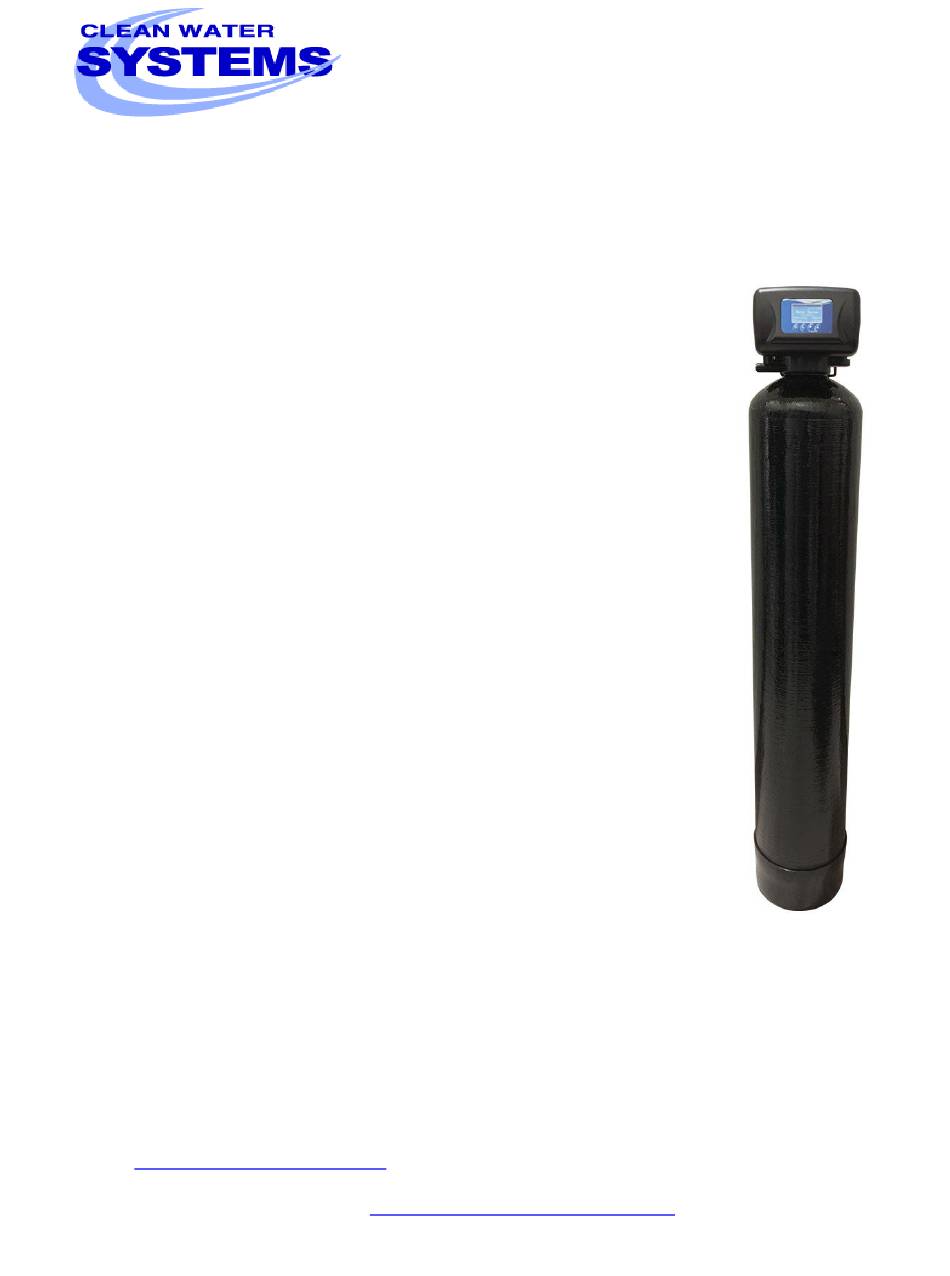

7500-REV4 Carbon Filter Installation Guide
Thank you for purchasing a Clean Water System! With proper installation and a
little routine maintenance your system will be providing chlorine free water for
many years.
Please review this start‐up guide entirely before beginning to install your system,
and follow the steps outlined for best results.
Minimum pressure of 30 PSI recommended.
Maximum pressure recommended 80 PSI.
For indoor installation only.
Protect from sunlight, rain, and freezing.
CARBON MEDIA CONTAINS DUST.
USE MASK TO AVOID BREATHING DUST.
OK to wet down media with spray bottle
FOR USE ON MUNICIPALLY TREATED, OR DISINFECTED WATER ONLY.
IF USING ON UN-CHLORINATED OR NON-DISINFECTED WATER INSTALL A
UV STERILIZER AFTER UNIT.
Questions?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us:
support@cleanwaterstore.com
See more information on our website:
www.cleanwaterstore.com/resources

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7500-REV4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clean Water Systems 7500-REV4

Summary of Contents for Clean Water Systems 7500-REV4

  • Page 1 Clean Water Made Easy www.cleanwaterstore.com 7500-REV4 Carbon Filter Installation Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing chlorine free water for many years. Please review this start‐up guide entirely before beginning to install your system, and follow the steps outlined for best results.

  • Page 2: Table Of Contents

    Table of Contents Packing Lists ..............................3 Pre‐Installation .............................. 4 Best Practices for Piping & Drain Installation: ....................4 How the Bypass Valve Works ........................5 Installation of Your System in Copper or Metal Piping Systems: ..............5 How Your Carbon Filter Works: ........................6 Diagram of Typical Installation Well Water* ....................

  • Page 3: Packing Lists

    7500-Rev4 Carbon Filter Installation & Startup Guide Packing Lists All systems include: 7500‐REV4 control valve, small tube of silicone grease, bypass valve, power supply, funnel for adding media, top screen, start‐up guide, and items included in one of the following options: Find Your Size System to See What is Included: Carbon Filter 0.75 cubic foot size...

  • Page 4: Pre-Installation

    7500-Rev4 Carbon Filter Installation & Startup Guide Pre-Installation 1. Review your packing list and make sure you have received all the parts before installation. 2. If you are going to be turning off the water to the house and you have an electric water heater, shut off the power to the water heater before beginning installation in case water heater is accidentally drained.

  • Page 5: How The Bypass Valve Works

    7500-Rev4 Carbon Filter Installation & Startup Guide How the Bypass Valve Works Turn knob so the valve is bypassed when installing. When you go to start up system turn the bypass SLOWLY to let water in and put in service.

  • Page 6: How Your Carbon Filter Works

    7500-Rev4 Carbon Filter Installation & Startup Guide How Your Carbon Filter Works: Water enters the top of the tank and flows down through the media and up the distributor tube. The backwashing Carbon Filter removes Carbon and is automatically backwashed which cleans and re‐classifies the carbon...

  • Page 7: Diagram Of Typical Installation Well Water

    7500-Rev4 Carbon Filter Installation & Startup Guide Diagram of Typical Installation Well Water* Diagrams of Typical Installation City Water *Make sure well water is microbiologically safe and does not contain coliform bacteria. Carbon systems recommended for disinfected city water or water that has been tested to be free of coliform or e.coli bacteria.

  • Page 8: Tank Assembly And Installation Instructions

    7500-Rev4 Carbon Filter Installation & Startup Guide Tank Assembly and Installation Instructions: 1. Wrap the top of distributor tube with electrical or duct tape so that no gravel or Carbon media will go down the distributor tube when adding the media.
  • Page 9 7500-Rev4 Carbon Filter Installation & Startup Guide 11. Install inlet and outlet piping and hook up drain line. 12. If you are in earthquake zone, strap your backwash filter tank to wall with metal strapping. 13. Proceed to programming your 7500‐Rev4 control valve 14.

  • Page 10: Programming Your Valve And Setting Time And Days For Backwash

    7500-Rev4 Carbon Filter Installation & Startup Guide Programming Your Valve and Setting Time and Days for Backwash How to Start a Manual Backwash: Press the Back / Regen button Pressing “Back Regen” at any time results in an immediate manual regeneration.

  • Page 11: Set Time Of Day

    7500-Rev4 Carbon Filter Installation & Startup Guide Set Time of Day 1. If LOCK icon is lit, press, and hold both UP and DOWN buttons for 3 seconds to unlock keypad. 2. Then press the MENU/CONFIRM button to enter the main menu.

  • Page 12: Start The First Backwash

    7500-Rev4 Carbon Filter Installation & Startup Guide Set Rinse Frequency Not used. Keep or change to F:00 Set Regen Time This is the time your system will backwash. Default is 2:00 AM Set Backwash Time Length Set for 10 minutes. This is the first cycle.

  • Page 13: Advanced Programming Mode

    7500-Rev4 Carbon Filter Installation & Startup Guide If possible, verify that the backwash flow corresponds with the size of your system below. You can easily run the drain hose to a bucket and verify the flow rate in gallons per minute.

  • Page 14: Advanced Program Recommended Settings

    7500-Rev4 Carbon Filter Installation & Startup Guide Advanced Program Recommended Settings Review Company Info CWS 831‐462‐8500 Set Valve Model 62605 Set Language English Set Company Info CWS 831‐462‐8500 Set Hour Mode 12 HR Set Time of Day Current time of day...

  • Page 15: Maintenance

    7500-Rev4 Carbon Filter Installation & Startup Guide Maintenance: Every 4 to 6 years (in some cases it can last longer) remove control valve and empty the carbon filter media and replace with new media. There is no routine maintenance required for the control valve or filter media, other than making sure the system is set to backwash frequently enough to keep the filter media clean.

  • Page 16: 7500-Rev4 Water Filters Limited Warranty

    7500-Rev4 Carbon Filter Installation & Startup Guide 7500-Rev4 Water Filters Limited Warranty We warrant this water filter when installed according to factory recommendations, to be free from defects in materials and workmanship as follows: ‐‐‐‐‐‐‐‐‐‐Limited Warranty‐‐‐‐‐‐‐‐‐‐ This water conditioner unit is comprised of the finest industry components available. Each individual component used in the assembly of our equipment is covered by the original equipment manufacturer’s warranty.
