Using Avaya J169/J179 IP Phone SIP in a Call Center Release 4.0.4 Issue 1 January 2020...
Page 2
RESERVES THE RIGHT TO TAKE LEGAL ACTION AGAINST YOU the express behalf of Avaya. End User agrees to indemnify and hold AND ANYONE ELSE USING OR SELLING THE SOFTWARE harmless Avaya, Avaya's agents, servants and employees against all WITHOUT A LICENSE.
Page 3
PARTNER IS HOSTING ANY PRODUCTS THAT USE OR EMBED written consent of Avaya can be a criminal, as well as a civil offense THE H.264 CODEC OR H.265 CODEC, THE AVAYA CHANNEL under the applicable law.
Page 4
The handset receiver contains magnetic devices that can AC adapters shipped with the equipment or specified by attract small metallic objects. Care should be taken to avoid Avaya to be used with the equipment. If you use any personal injury. other equipment, it may cause failures, malfunctioning, Industry Canada (IC) Statements or fire.
Page 5
Device Usage Consent television reception, which can be determined by turning the By using the Avaya device you agree that Avaya, from time to time, equipment off and on, the user is encouraged to try to correct the may collect network and device data from your device and may use interference by one or more of the following measures: such data in order to validate your eligibility to use the device.
Viewing Vu Stats ........................27 Supervisor Assist ........28 Viewing Adjunct/Switch Application Interface User-to-User Information ........................28 Service Observe ....................29 Activating Service Observe January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Page 7
................30 Assisting an agent on an observed call .................. 30 Long-term acoustic exposure protection ............30 Configuring Long term acoustic exposure protection January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Chapter 1: Introduction Purpose This document describes how to use Avaya J100 Series IP Phones in a Call Center environment. ® It also describes various Avaya Aura Call Center Elite features and their usability. ® Please note that only Avaya J169/J179 IP Phones support Avaya Aura Call Center Elite feature.

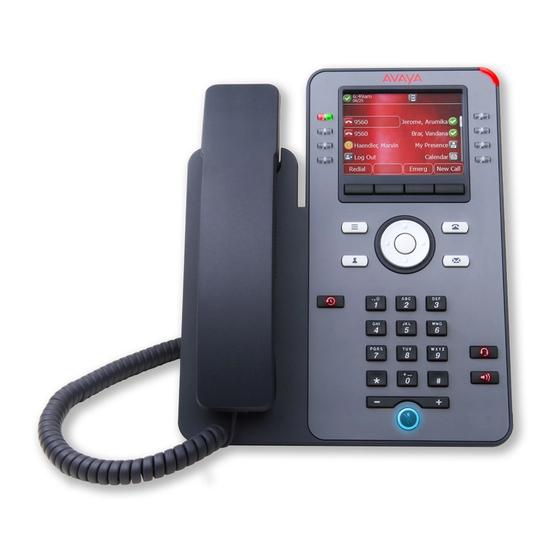

Your Phone screen displays the information about your phone, agent settings, and the information about incoming calls. The screen color and the display of icons depend on the phone model. The display of Avaya J169 IP Phone is grayscale, while Avaya J179 IP Phone is a color display phone.
Phone icons and display Call Center related icons The icons of the Avaya J169/J179 IP Phones in a Call Center setup look similar to each other. The Avaya J169 IP Phone has grayscaled icons and the Avaya J179 IP Phone has color icons.
Use this chart as a guide to possible Agent Status line display. • ACD=Automatic Call Distribution • ACW=After Call Work • Auto=Auto In • Aux=Auxiliary Work state • DAC=Direct Agent Call January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
UUI details. The UUI icon is used to distinguish UUI from other call information, such as collected digits. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Immediately after agent login, the phone screen displays MWI is indicated for the Agent ID or MWI is indicated for the extension. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
If you are not on a call, you are logged out from ACD regardless of which agent state you are in. Table continues… January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Logging in to the phone About this task ® To log in as an agent, your extension must be registered to the Avaya Aura network and you must have your agent ID and password. Before you begin Ensure that your administrator assigns you with your agent ID and password.
1. Press Main menu, and scroll to Features. 2. Press Select. 3. If configured by your system administrator, enter the Reason Code for logout. 4. Press Enter. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
3. Scroll to Aux Work. 4. Press Select. 5. If your system administrator has assigned you with a forced reason code, enter the Reason Code. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
The configuration is available either with the Auto In feature or the Manual In feature. Procedure 1. Press Main menu, and scroll to Features. 2. Press Enter. 3. From the Features list, scroll to Auto In. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
5. To go back to the ACD Available queue, press Manual In mode again. Result The Agent Status line displays the Manual and Available icons. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
If you press the End Call softkey to end the call, the light on the Headset button might turn off. You can still use the headset to answer the next call. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Your Feature screen displays Stroke Count (#), where # is the number from 0 to 9 that your system administrator has defined for specific customer events. Related links Sending stroke counts on page 22 January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Call Center phone operations Sending stroke counts About this task ® Use this procedure to send the stroke count information to the Avaya Aura Call Center Elite server. Procedure 1. Press Main menu, and scroll to Features. 2. Press Select.
Note: Headset Signaling setting is used to configure only DECT headsets and cannot be applied to Bluetooth headsets. Procedure 1. Press Main menu. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Changing your Presence status on page 25 Presence icons Presence icons for Avaya J169 IP Phone and Avaya J179 IP Phone look similar, but Avaya J169 IP Phone has grayscaled icons and Avaya J179 IP Phone has color icons. Icon...
The phone displays the corresponding Presence icon of the contact. Related links Presence on page 24 Changing your Presence status Before you begin Ensure that the feature is activated by the administrator. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
4. Scroll to Presence Integration, and press Select. 5. Scroll to DND invokes SAC. 6. Press Change, and set the value to Yes. 7. Press Save. January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
The phone displays the Supervisor Assist feature button label as Assist (#), where # is the skill ® number. However, the skill number may be blank. If the skill number is blank, Avaya Aura Call Center Elite determines the appropriate skill number to be associated with the Supervisor Assist call.
• By-Location: Activates the feature in Listen-Only mode for a VDN. You must provide a VDN and a location ID. You can observe the call only when the agent at the required location connects. You can change between Talk and Listen-Only modes, if configured on the Avaya ®...
• Select an idle Call Appearance line. • Change to an on-hold call. • Go on-hook. • Log out. Related links Service Observe on page 28 January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Page 30
28 Long-term acoustic exposure protection Avaya J100 Series IP Phones have the long-term acoustic exposure protection, to protect the ears of the users from the acoustic shocks. This feature reduces the loud volume of the conversations on the phone call to permissible acoustic limits. The user can set the permissible acoustic limit to dynamic or predefined static values.
Page 31
• Default • Off • Dynamic • 4 hours • 8 hours 6. Press Save. Related links Long-term acoustic exposure protection on page 30 January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Page 32
......30 Queue Stats ..............11, Quick Touch panel ..............display icons ................ RONA information ..............12 enable wireless headset ............January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
Page 33
............... UUI information ..............12, VDN information ............12, Viewing ASAI UUI ..............Vu stats .................27 viewing Queue Stats ............23 Vu stats ................January 2020 Using Avaya J169/J179 IP Phone SIP in a Call Center Comments on this document? infodev@avaya.com...
