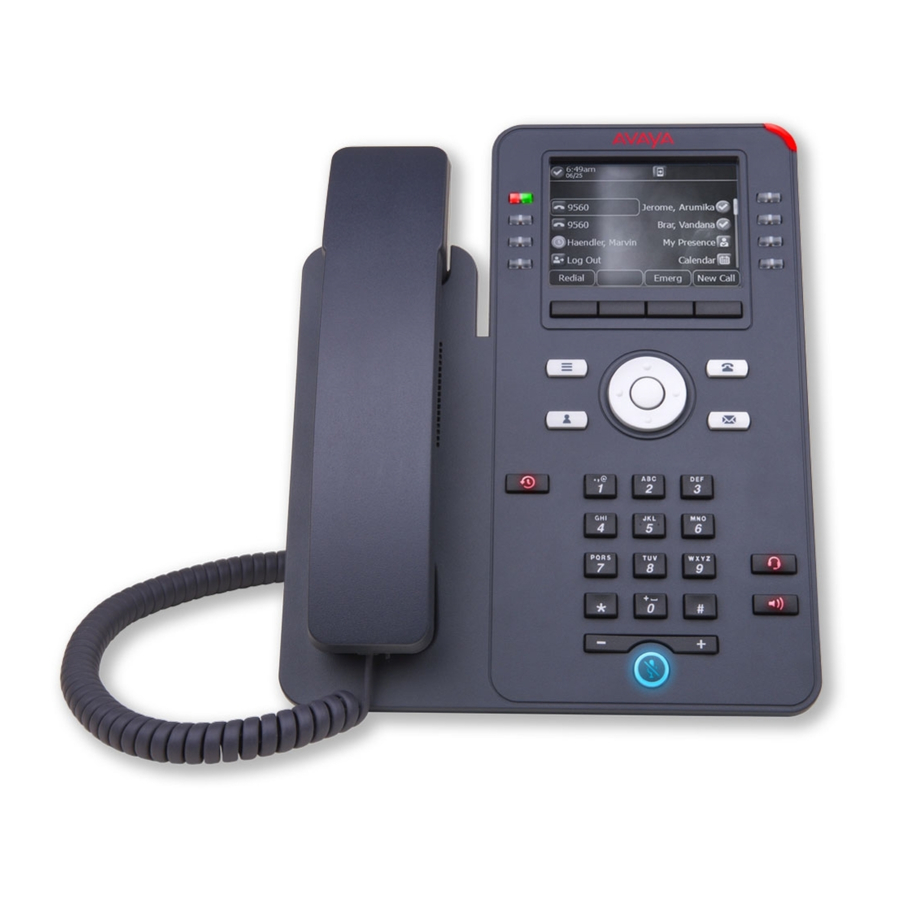

Avaya J169 Quick Reference

Quick Reference for Avaya
J169 and J179 SIP IP Phones
®
in Avaya Aura

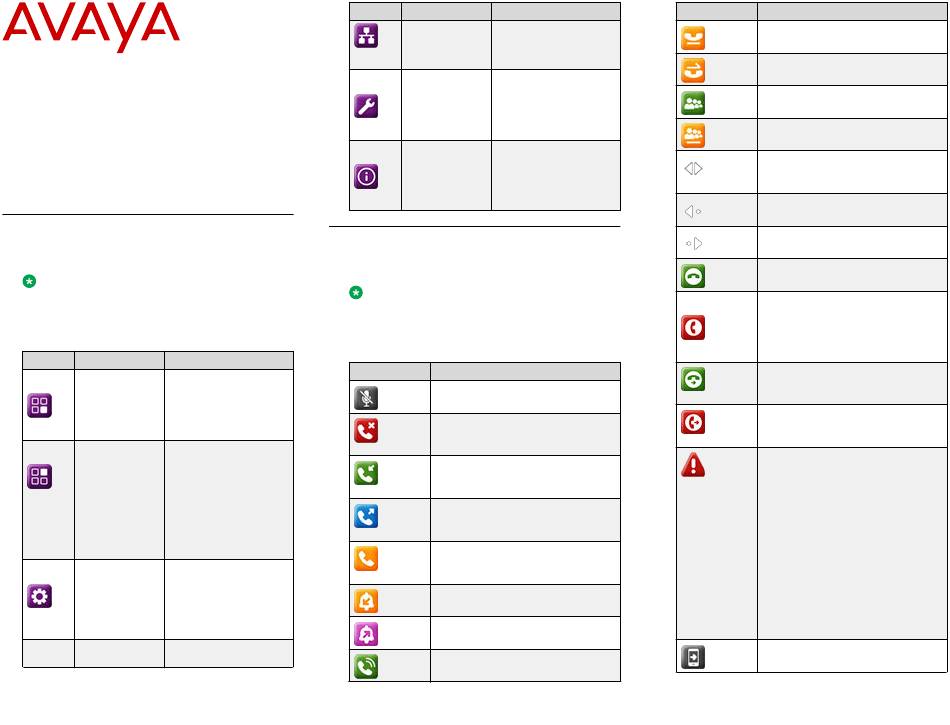

Main menu
The following table lists the Main menu icons used in
Avaya J169/J179 IP Phones:
Note:
The icons of Avaya J169 IP Phone and Avaya
J179 IP Phone look similar but Avaya J169 IP
Phone has grayscale icons and Avaya J179 IP
Phone has color icons.
Icons Name Description
Features To access administrator
activated features.
Applications • To access phone
applications such as
Contacts, Recents,
and Activate screen
saver.
• To sign off the phone,
to protect your
settings, or to let
another user log in.
Settings To change your phone
settings, customize
button labels, adjust
brightness, audio
settings, assign speed
dial entries, etc.
Network To check network
information settings.
Icons
Release 4.0.9
Issue 1
April 2021
©
2020-2021, Avaya Inc.
All Rights Reserved.
General phone icons
The following table lists the icons used in Avaya J169/
J179 IP Phones:
Icon
Table continues...
Name Description
Administration To access
administration settings.
About To view the phone
model, software
version, default device
type, and the default
server type.
Note:
The icons of Avaya J169/J179 IP Phones look
similar but the Avaya J169 IP Phone has
grayscaled icons and the Avaya J179 IP Phone
has colored icons.
Description
Microphone is muted.
Missed call on your phone. You can
see this icon in the Recents
application.
Incoming call; indicates you have
answered this call. You can see this
icon in the Recents application.
Outgoing call; indicates you have
made this call. You can see this
icon in the Recents application.
Bridged call; indicates this line is
being used for a call on another
phone.
Incoming call is alerting.
Outgoing call; indicates you have
made this call.
Call is active.
Table continues...
Icon Description
Call is on hold.
Call is on hold during a conference
or transfer call setup.
Conference is active.
Conference is on hold.
Use the Right or Left navigation
arrow to see more pages /
screens / options.
Scroll left for other options.
Scroll right for other options.
Team icon indicating this team
member is available.
Team icon indicating this team
member is busy on a call and
unavailable.
Team icon indicating this team
member is not on a call, but is
forwarding incoming calls.
Team icon indicating this team
member is busy on a call and is
forwarding incoming calls.
Indicates that the phone is not
connected to the SIP proxy server
and is operating in Failover mode.
Some features might not be
available or work incorrectly.
If the appearance line displays this
icon, it indicates that the phone has
encountered a failure and has
preserved the media session until
the user hangs up.
This icon can also indicate that the
phone is connected to the call
server but the features are not
available.
The EC500 feature is on.
Table continues...
