1.3 OPERATING ELEMENTS AND CONNECTIONS

9
8
7

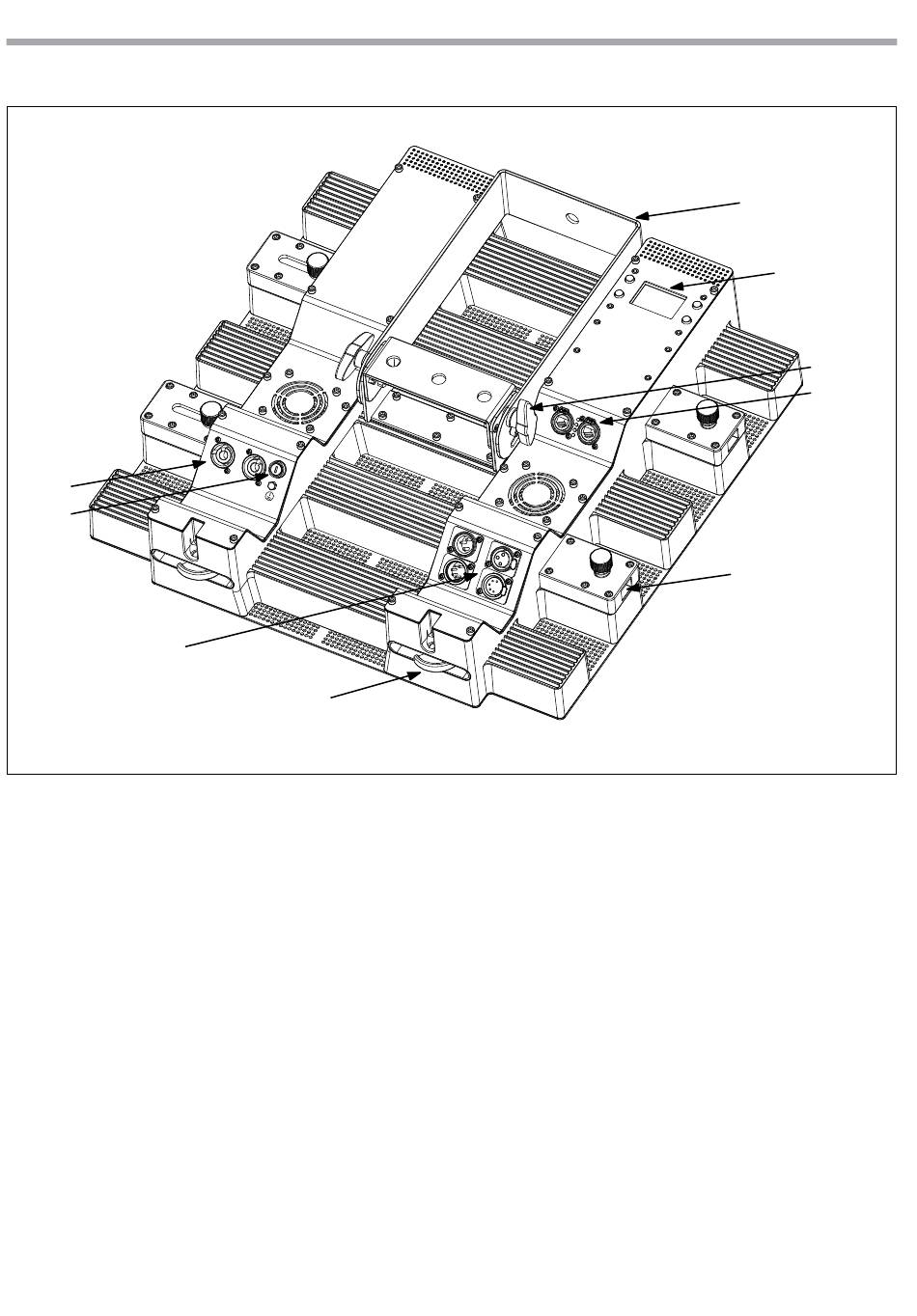

Rear panel
1. MOUNTING BRACKET
2. LOCKING KNOB for the mounting bracket.
3. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
- MENU button: scroll through the main
menu or exits from the current submenu.
- UP button: scroll 'up' through the menu
list or increase the value of the current
function.
- DOWN button: scroll 'down' through the
menu list or decrease the value of the
current function.
- ENTER button: enter the currently selected
menu or confirm the current function value.
4. RJ45 CONNECTORS
5. HORIZONTAL LOCK SYSTEM
6. VERTICAL LOCK SYSTEM
CHROMAPIX
6
7. DMX connectors:
8. MAIN FUSE HOLDER: replace a burnt-out fuse
9. Power connectors:
DMX OUT (3-pole XLR):
1= ground, 2 = DMX -, 3 = DMX +
DMX IN (3-pole XLR):
1 = ground, 2 = DMX -, 3 = DMX +
DMX OUT (5-pole XLR):
1 = ground, 2 = DMX -, 3 = DMX +, 4 N/C, 5 N/C
DMX IN (5-pole XLR):
1 = ground, 2 = DMX -, 3 = DMX +, 4 N/C, 5 N/C
by one of the same type only
- POWER
IN
(Neutrik
connection to a socket (100-240V~/50-
60Hz) via the supplied mains cable
- POWER OUT (Neutrik connector): power
output for connection of multiple units in
series
1
3
2
4
5
Fig.2
connector)
