Ambient temperature see type label
Degree of protection:
Evaluated by the manufacturer:
IP65 / IP67 according to EN
60529
2)
2) Only if cables, plugs and sockets have been connected correctly and
in compliance with the exhaust air concept, see chapter "8 Pneumatic
installation".
6.5

Mechanical data

Dimensions See data sheet
Body material exterior:
interior:
Sealing material EPDM / FKM
Stroke range
of valve spindle S eries 2103
and 23xx
Third-party devices
(modified guide
element required)
10
Evaluated by UL:
UL Type 4x Rating
2)
PPS, PC, VA
PA6; ABS
3 – 32 mm
3 – 40 mm
english
Type 8696
Technical data
6.6

Type labels

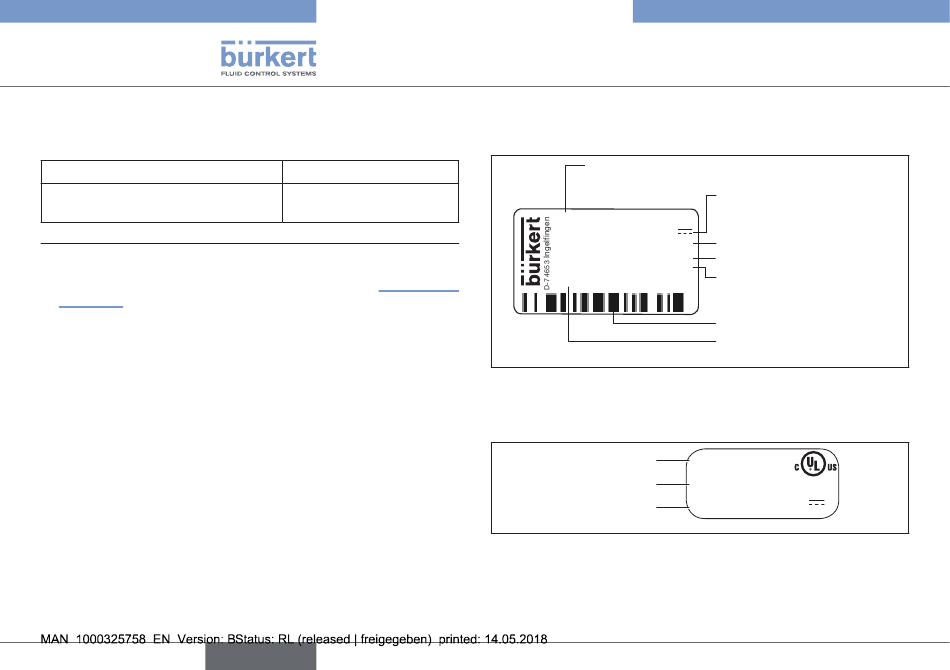

6.6.1 Type label (example)
Type; Features of the type code applicable
to UL and ATEX
8696 -E1-...-0 PU02
Single act Pilot 0.6 24V
Pmax 7 bar
Tamb -10 - +60 °C
CE
S/N 1001
00123456
W15MA
Fig. 4: Type label (example)
6.6.2 UL additional label (example)
Degree of protection
Circuit with limited power
Supply voltage device
Fig. 5: UL additional label (example)
Control function; pilot valve;
Supply voltage pilot valve
Max. operating pressure
Max. ambient temperature
Serial number; CE mark
Bar code
Identification number; Date
of manufacture (encoded)
Type 4X enclosure
NEC Class 2 only
Supply voltage: 24 V
