10.3.1 Operating status
AUTOMATIC (AUTO)
Normal controller mode is implemented and monitored in AUTO-
MATIC operating state.
LED1 flashes green.
MANUAL (MANU)
In MANUAL operating state the valve can be opened and closed
manually via the keys.
LED1 flashes red / green alternately.
The DIP switch 4 can be used to switch
ON DIP
between the two operating states AUTOMATIC
and MANUAL.
1 2 3 4
DIP switches Function
4 ON Operating status MANUAL (MANU)
OFF Operating status AUTOMATIC (AUTO)
Tab. 6: DIP switches
Type 8696
Start-up

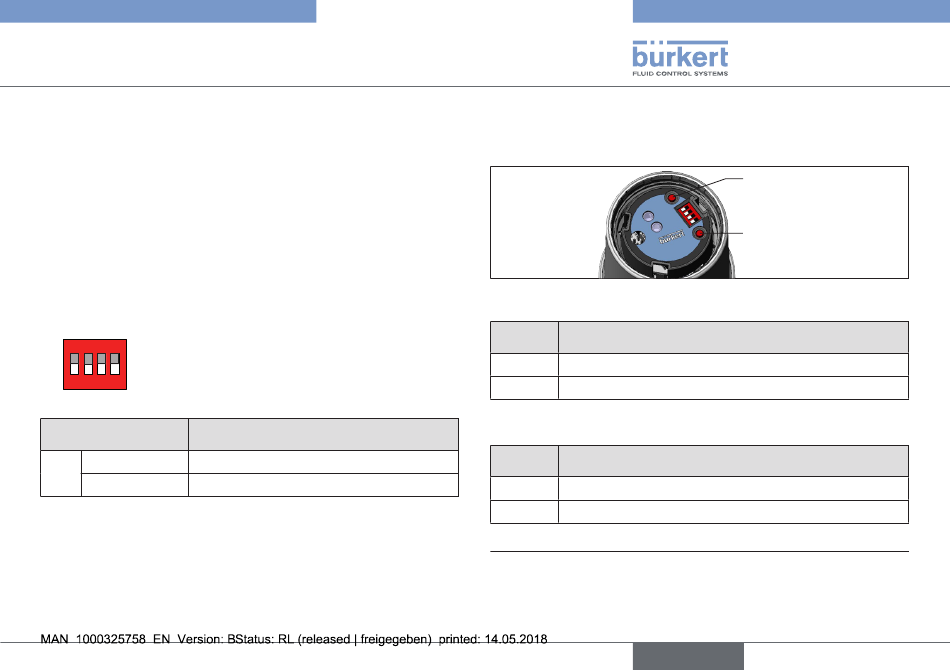

10.3.2 Functions of the keys
The configuration of the 2 keys on the board varies depending on
the operating status (AUTOMATIC / MANUAL).
Fig. 14: Keys
MANUAL operating status (DIP switch 4 set to ON):
Key Function
9)
1 Aerate (manually open / close the actuator)
2 Deaerate (manually open / close the actuator)
Tab. 7: Configuration of the keys for MANUAL operating status
AUTOMATIC operating status (DIP switch 4 set to OFF):
Key Function
1 Press for 5 s to start the X.TUNE function
2 -
Tab. 8: Configuration of the keys for AUTOMATIC operating status
9) No function if the binary input was activated with the "Manual/Auto
change-over" via the communications software.
10) depending on the operating principle of the actuator.
english
Key 1
Key 2
10)
10)
