Appendix C – Installing the SD-CARD
To insert a card into the reader, orientate it as shown below and push the card into the reader until
a click sound occurs. Remove the card by pushing it into the reader until it clicks, and the reader
will eject the card. Avoid removing the SD-CARD during access to the card.

Appendix D - Enabling the CAN bus channel 1 write capability

Connecting the RTCU to a CAN network can be dangerous. If the RTCU is not configured with the
correct network parameters, it can lead to network corruption and may interfere with other
connected equipment on the bus. Especially in vehicles, great precautions must be observed to
prevent interruption of communication.
By default, reading from the CAN bus is enabled and writing to the CAN bus is disabled by a
hardware jumper inside the unit.
Installing this jumper, and thereby enabling the CAN-bus Write capability of the unit, is done on
the sole responsibility of the user. Logic IO can not be held responsible for any problems, or
damage due to the decision to enable the CAN-bus Write capability.
The following steps must be taken to enable the CAN bus Write capability of the unit:
ATTENTION: The device internal electronics are sensitive to Electrostatic Discharge
(ESD) and must be handled only in an ESD safe environment.
Avoid touching the electronics components and parts.
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark

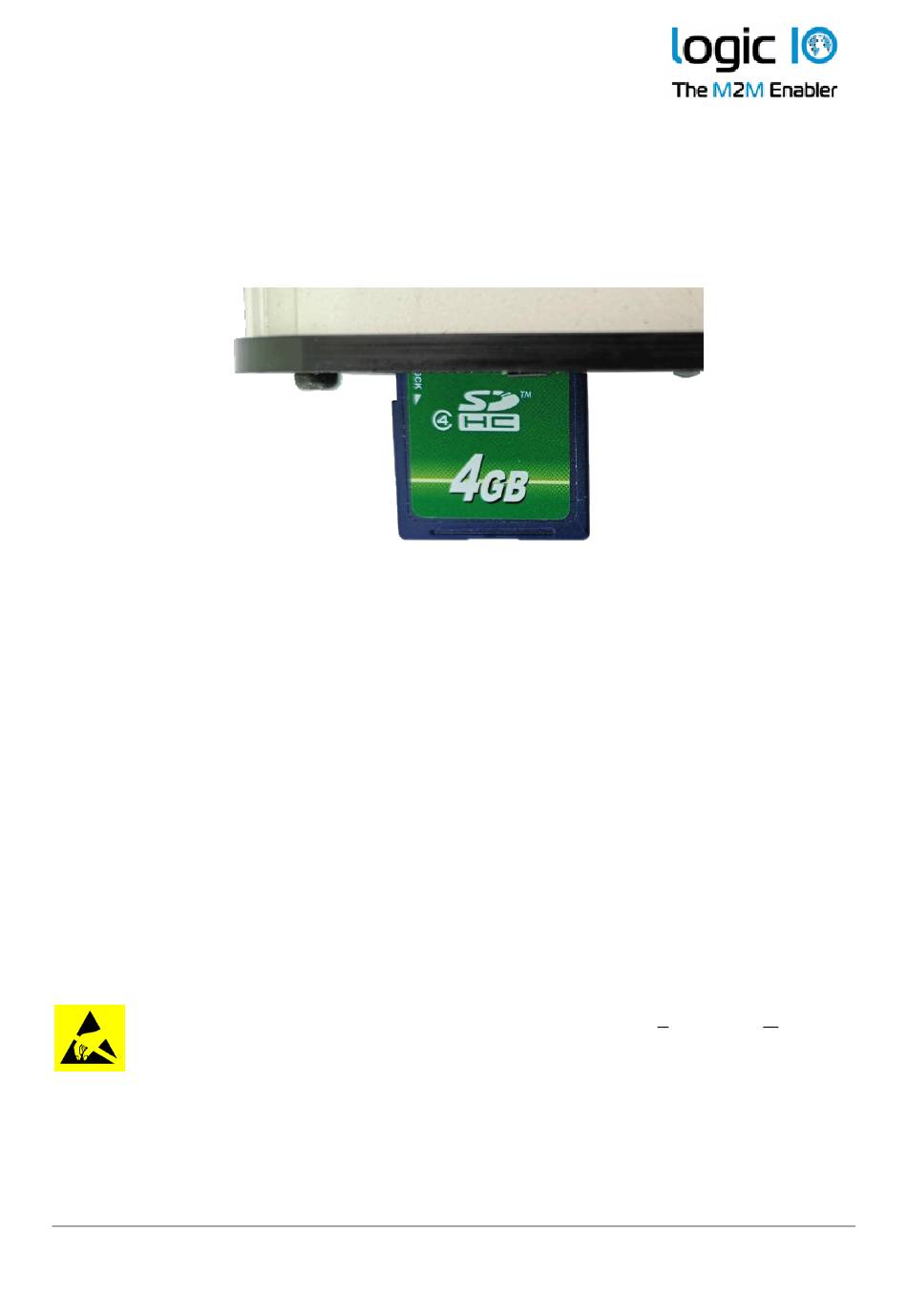

SD-CARD orientation
