RTCU NX-200 Technical Manual V1.00
Advanced Automotive M2MI/IoT Gateway

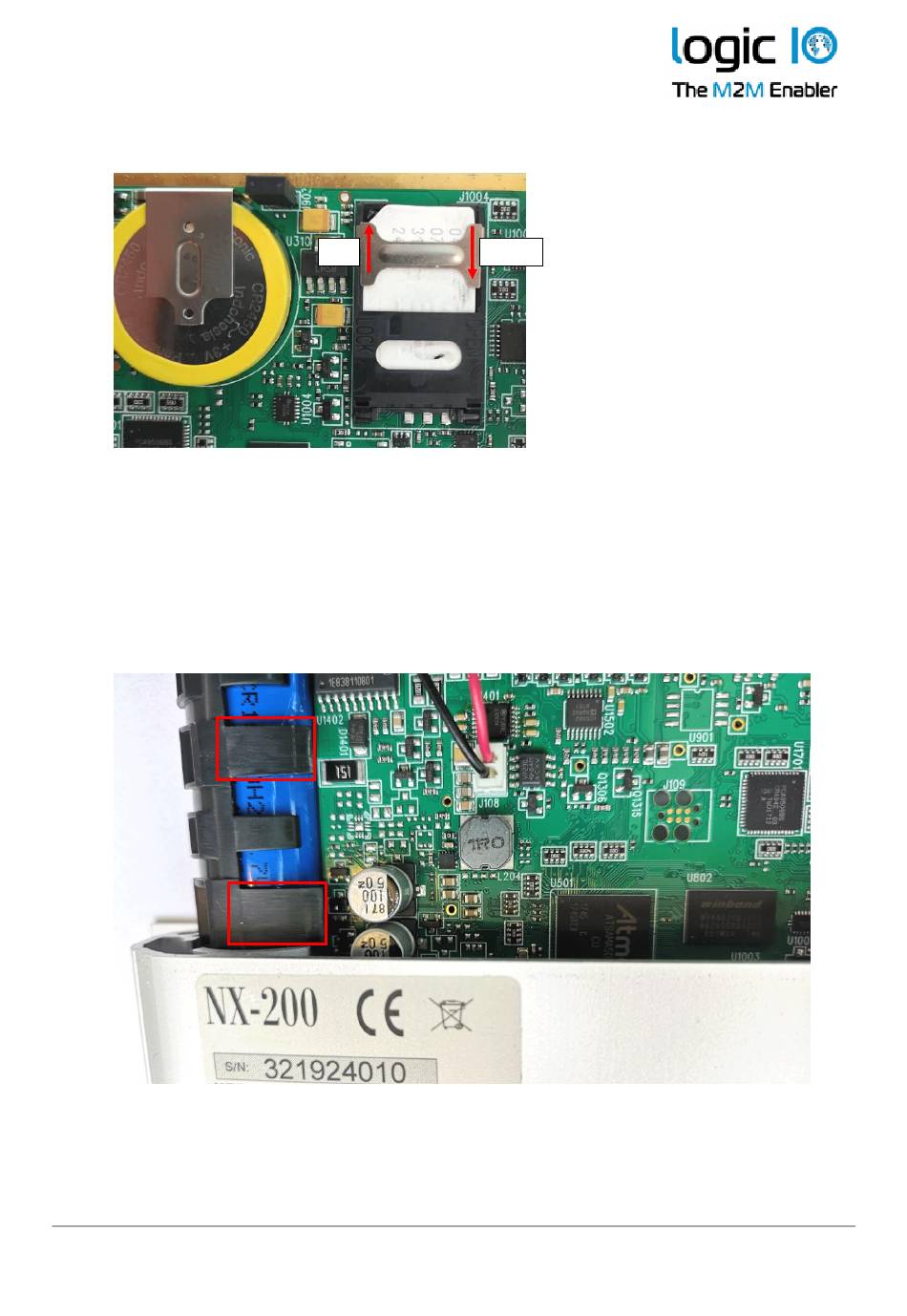

6. Close and lock the card reader
7. Push the circuit board into the encapsulation gently until the internal battery holder hits
the battery compartment of the encapsulation. The circuit board can't be pushed further
until the fixing flaps of the battery holder are squeezed inside the battery compartment of
the encapsulation.
8. Squeeze the first of the two flaps with two fingers on both top and bottom side of the
battery holder, push into the encapsulation, then squeeze the second flap.
9. When the baseboard is pushed into the encapsulation, align the backplate with the
connectors, and then secure the endplate with the three screws, that were removed in step
1.
