- Page 1 RTCU NX-900 Advanced Industrial M2M/IoT Gateway Technical Manual Version 1.01...
-
Page 2: Introduction
NX32 applications can execute with no changes. The RTCU NX-900 is designed to meet the ever-increasing challenges on security, in that it offers full TLS on all major protocols and includes a hardened protected execution environment with dual-boot and automatic fallback and recovery. - Page 3 RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway * * * * THIS PAGE IS INTENTIONALLY LEFT BLANK * * * Logic IO ApS. Ph: (+45) 7625 0210 Holmboes Allé 14 Fax: (+45) 7625 0211 8700 Horsens Page 3 of 50 Email: support@logicio.com...
-
Page 4: Table Of Contents
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Table of contents Introduction ............................2 Important Information .......................... 6 Migration from RTCU AX9 turbo: ...................... 9 Graphical overview: ........................... 10 Connections ............................11 Overview ............................11 Power supply ..........................14 DC Supply ..........................15 AC Supply .......................... - Page 5 RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Approved Micro SD cards ......................39 Product Identification Label with Barcode ..................40 Power consumption ..........................41 Appendix A – Device configuration guide ..................43 Appendix B – Installing the SIM card ....................46 Appendix C –...
-
Page 6: Important Information
Logic IO Aps has failed to eliminate these errors or inaccuracies for this reason. -
Page 7: Wireless Communication
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Technical Highlights Platform: ➢ Based on the RTCU M2M Platform. ➢ NX32L (NX32 for Linux) execution architecture. RTCU IDE development tool. Operates under a full and highly optimized Linux variant. Open and extendable with Platform SDK. - Page 8 RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway User Interaction: ➢ 4 x bi-colour LED and 4 x position DIP-switch. ➢ High-speed Mini-USB service-port connector. Audio: ➢ Fully digitized audio system. ➢ Transfer, store, and play audio. ➢ Digitized cellular audio.
-
Page 9: Migration From Rtcu Ax9 Turbo
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Migration from RTCU AX9 turbo: There are the following differences between the RTCU AX9 turbo and the RTCU NX-900: Topic AX9 turbo NX-900 DC Out 3.3 VDC 5 VDC Digital input – S0... -
Page 10: Graphical Overview
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Graphical overview: There are four user-controlled LEDs and four system LEDs for simple information and status on front of the RTCU NX-900: User LEDs System LEDs The external antenna connectors are located at the top-side of the device as shown below: Logic IO ApS. -
Page 11: Connections

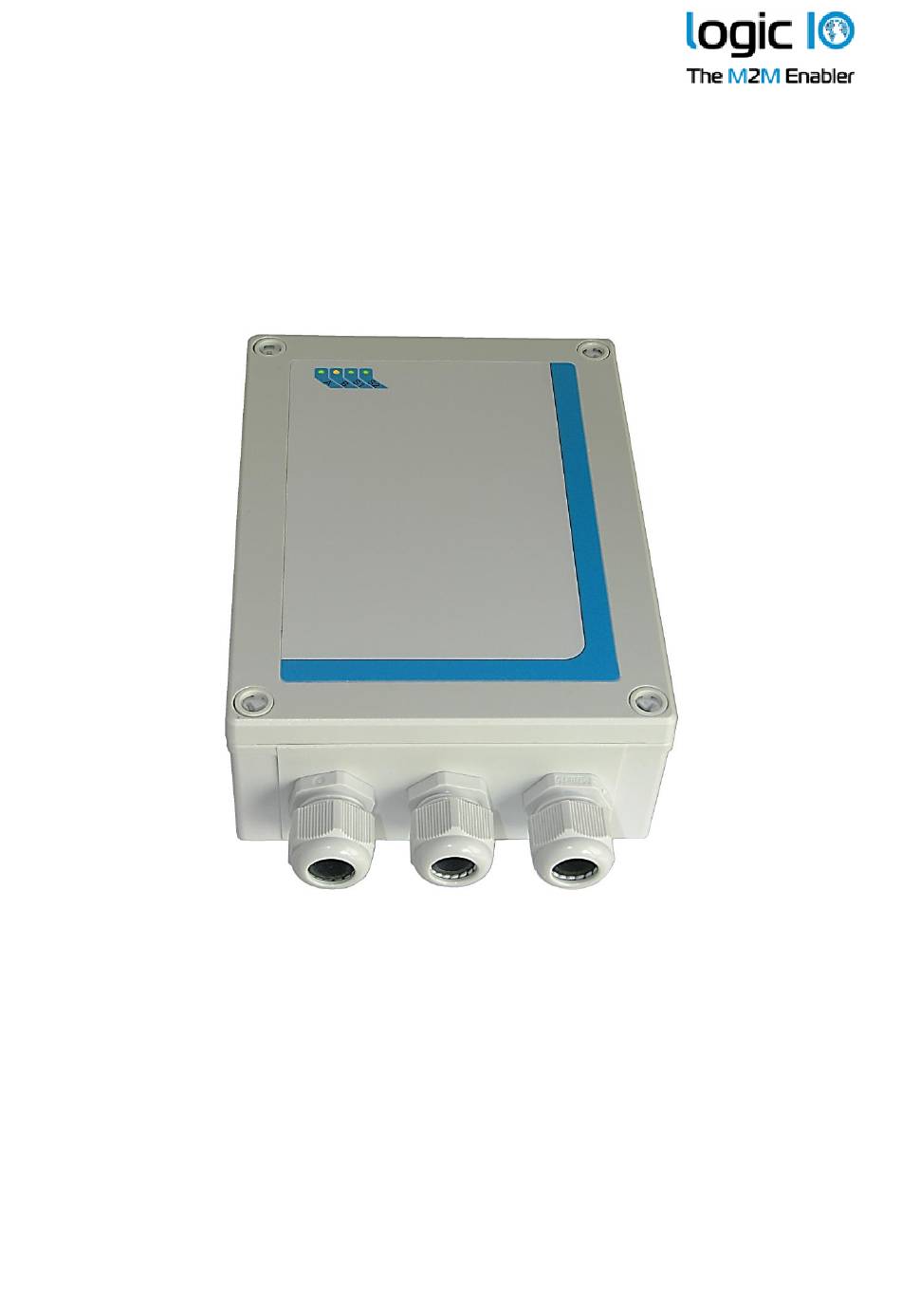

The placement of the terminals makes installation easy by using the cable glands and thereby maintaining the IP-65 protection. The RTCU NX-900 is delivered with three M20 cable glands. A graphical overview of the device is shown below:... - Page 12 RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Stacked terminal overview Terminal Name Description TOP row BOT row Contact set for relay output 1. Contact set for relay output 2. Contact set for relay output 3. Contact set for relay output 4.
- Page 13 RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Angled terminal back row overview Terminal Name Description SER2_TXD Transmit data from serial port 2, RS232 compatible. SER2_RXD Receive data for serial port 2, RS232 compatible. SER2_CTS Clear-To-Send for serial port 2, RS232 compatible.
-
Page 14: Power Supply
Dual Supply Note: The RTCU NX-900 can be supplied with both VAC and VDC at the same time. The device will run on the VAC supply if the VDC supply voltage is < +24VDC. If the VDC supply voltage is higher it will run on the VDC supply. -
Page 15: Dc Supply
Advanced M2M/IIoT Gateway DC Supply The RTCU NX-900 can be supplied with 8-36VDC from an external DC power source. Positive power is applied to the DCIN pin and ground is connected to the XGND pin. The DC supply of the NX-900 is protected against wrong polarity. If a system ground is connected to either SGND or AGND, a wrong polarity on the supply lines will destroy the internal GND connection. -
Page 16: Ac Supply
The RTCU NX-900 device can be supplied with 100-265VAC (50/60Hz) from a standard wall plug or any other high-voltage VAC power rail. The AC supply of the RTCU NX-900 is a highly efficient switch mode power supply and the AC input is protected internally with a 2A/250V Fast Acting non-replaceable fuse. - Page 17 RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway reference as the outside and a potential difference may occur. This difference can interrupt the behavior of the device and in worst case damage that part of the device. This must be taken in consideration when the NX-900 devices are supplied with AC supply.
-
Page 18: Digital I/O
The RTCU NX-900 device offers a very advanced power management which makes it possible to have one or more outputs enabled while the RTCU is in low-power mode. Please consult the RTCU IDE on-line help for more information. -
Page 19: Digital Inputs / S0 Inputs / Wakeup (Ignition) Input
S0 compliant inputs (IEC62053-31, Class A compatible) In S0 configuration the relevant RTCU NX-900 input will act as a ‘pulse input device’, and a current is supplied into the input connector so that a simple switch between SGND and the appropriate input will activate it. - Page 20 The DI5 / wakeup (ignition) input is a special input as it also functions as the ignition. If the input is activated with a logical high when the RTCU NX-900 is in power down mode, it will wake the device. A power apply will also wake the device up if it is in power-down mode.
-
Page 21: Analog I/O
Analog I/O Analog inputs The RTCU NX-900 device has four analog inputs which can be configured individually to work either as voltage or current measurement inputs by using the configuration jumper. The range in voltage mode is 0-10VDC and in current mode 0-20mA. -
Page 22: Denmark
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Specification for each analog input (voltage mode) Min. Typ. Max. Unit Protected against transients and low-pass filtered Resolution Accuracy is based on measurements Accuracy %FSR @ 25 ˚C Cut-off frequency Input impedance kΩ... -
Page 23: Analog Outputs
250Ω. Each output is ESD and transient protected. Please note: The RTCU NX-900 device must be supplied with minimum 15 VDC or AC in order for the analog outputs to work according to specifications. - Page 24 RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Specification for each analog output (voltage mode) Min. Typ. Max. Unit Protected against transients and low-pass filtered Resolution Accuracy is based on measurements Accuracy %FSR @ 25 ˚C Input impedance Ω Specification for each analog output (current mode) Min.
-
Page 25: Usb Programming Port
A standard USB cable can be used between the device and the PC. RS232 communication ports (EIA/TIA-232 and V.28/V.24 compatible) Two general purpose RS232 ports available on the RTCU NX-900 device. Both are compliant with the EIA/TIA-232 standard. -
Page 26: Rs485 Communication Ports (Eia/Tia-485-A Compatible)
When the RTCU NX-900 device is used as endpoint device, the hardware jumpers TER1 and TER2 can be installed to terminate the RS485 communication lines with 120Ω. -
Page 27: Rs485 Port 1
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway RS485 port 1 RS485 signals are available on the angled back terminals. If TER1 jumper is inserted, a 120Ω endpoint resistor is enabled. For the location of TER1 refer to Appendix A... -
Page 28: 1-Wire
Total weight DC-Out Two DC outputs are available on the RTCU NX-900 for supplying external equipment; a 5V and a 12V/24V output. It is possible to control these DC outputs in order to save power. Both DC outputs are short circuit- (to ground), ESD- and transient-protected. -
Page 29: 12V/24V Dc-Out
Signal ground. Ethernet The RTCU NX-900 offers an on-board IEEE 802.3 compatible 100BASE-T Ethernet MAC controller and transceiver for communication with peripherals and back-end systems over standard Ethernet. Please refer to the RTCU IDE documentation for details on the usage of this interface. -
Page 30: 3D Movement Sensor
Advanced M2M/IIoT Gateway 3D movement sensor The RTCU NX-900 device contains a 3-axis accelerometer in order to detect vibration and motion. It makes it possible to detect movement and position change in 3 directions, X-Y-Z with a force as high as 16g in acceleration. -
Page 31: Led Indicators
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway LED Indicators Four bi-colored (red and green) LED indicator is present on the front of the device (see graphical overview). Two bi-colored LED’s (A and B) are available to the user, and the remaining two LED’s (S1 and S2) are signaling the status and possible errors of the RTCU device. -
Page 32: System Led S1 And S2
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway System LED S1 and S2 The RTCU is equipped with two system LED’s, which shows the status and possible errors of the RTCU device. The different patterns are listed in the table below. If the color of the system LED S1 is yellow, the device is actively communicating with the RTCU IDE (or another program, supporting the RTCU RACP protocol). -
Page 33: Switches
(and all other LEDs OFF) Switches DIP-Switch The RTCU NX-900 device contains four dipswitches, where three of them are available for the application to use. The dipswitches are located inside the device (see drawing below or graphical view). System switch (RST) The RTCU NX-900 device contains a combined reset/diagnostic switch. -
Page 34: Internal Li-Ion Battery
Do not expose the device to water, saltwater or allow the battery to get wet. • Avoid strong impacts and shocks. For more information regarding the environmental limitations, see “RTCU NX-900 Specifications” below or consult the RTCU NX-900 datasheet. Logic IO ApS. -
Page 35: World-Wide Lte Cat. 4 Cellular Engine
UMTS release 7, max. 42Mbps down / 5.76Mbps upload, (Cat 6) • Digitized audio / DTMF capability. Wi-Fi and Bluetooth The RTCU NX-900 device contains a combined Wi-Fi and Dual-mode Bluetooth radio that shares the same antenna interface. Wi-Fi Technical Data •... -
Page 36: Ism Rf
Advanced M2M/IIoT Gateway ISM RF The RTCU NX-900 is provided with an ISM band RF module which gives the device the ability to communicate with other devices wirelessly. The device communicates in the 868 MHz frequency band. The RF module hardware is set up to comply with the European EN 300 220 requirements. -
Page 37: Antennas
Please consult the installation guide that follows the antenna. GNSS antenna The RTCU NX-900 supports GPS and GLONASS so a suitable GNSS antenna must therefore be used. The connection is with a SMA connector and the GNSS antenna must be a 3V active antenna with a SMA male connector. -
Page 38: Internal Sim-Card Reader
SIM-Card reader Micro SD-Card reader The RTCU NX-900 device has a standard Micro SD card reader which is located inside the device (see drawing below or graphical view). The Micro SD card reader is a lid-based system with a mechanical lock for reliable insertion and operation. -
Page 39: Approved Micro Sd Cards
For applications that use the SD-CARD media extensively and where a failure is critical, it is recommended to use approved Industrial Grade SD-CARDs. Logic IO has approved and recommends industrial grade SD-CARDs from ATP that is available in capacities from 512 MB to 32 GB. -
Page 40: Product Identification Label With Barcode
Advanced M2M/IIoT Gateway Product Identification Label with Barcode The RTCU NX-900 product identification is found on the exterior of the device and contains a unique serial-number in readable form and as a barcode. The first three digits in the serial-number identify the device type, and for the RTCU NX-900 device this unique code is 331. -
Page 41: Power Consumption
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Power consumption The table below shows detailed information about the typical power consumption for the RTCU NX-900 device while it is running. DC power consumption: Device operating in normal mode Device active... -
Page 42: Denmark
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway The table below shows detailed information about the typical power consumption for the RTCU NX-900 device when it is in power-saving modes. The following power-saving modes are used: ➢ Mode 1: LED blinks every ~10 s, resumes the application when it is awoken. -
Page 43: Appendix A - Device Configuration Guide
Advanced M2M/IIoT Gateway Appendix A – Device configuration guide The RTCU NX-900 has many features and some of them require configuration by using hardware jumpers inside the device. A brief overview over the jumper settings can be found in the following table. - Page 44 Enables/disables on-board 120Ω line termination resistors which are according to standards; RS485 communication requires a proper line termination value (120Ω assuming a CAT5 twisted pair cable is used) resistors in both ends of the bus. If the RTCU NX-900 device is used as endpoint, the relevant jumper can be installed.
- Page 45 RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway The following figure shows the location of the jumpers when the lid of the device is removed. Red lined boxes show the default state of the jumpers. Logic IO ApS. Ph: (+45) 7625 0210 Holmboes Allé...
-
Page 46: Appendix B - Installing The Sim Card
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Appendix B – Installing the SIM card The SIM card reader is a lid-based type with a mechanical lock for secure installation of the SIM card. Open the hinged lid of the SIM card reader, orientate the card as shown below, and insert it into the lid of the card reader. -
Page 47: Appendix C - Installing The Micro Sd Card
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Appendix C – Installing the Micro SD card To insert a Micro SD card into the reader, open the hinged lid of the card reader, orientate it as shown below, and push the card into the lid. Close the lid and slide the metal lid in the direction that is shown with an arrow on the lid until a click is heard. -
Page 48: Appendix D - Open Source Disclaimer
Advanced M2M/IIoT Gateway Appendix D – Open Source Disclaimer The RTCU NX-900 products include several open source software tools. This open source software is governed by the terms and conditions of the applicable open source license, and you are bound by the terms and conditions of the applicable open source license in connection with your use and distribution of the open source software in this product. -
Page 49: Rtcu Nx-900 Specifications
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway RTCU NX-900 Specifications Cellular Engine GNSS RTCU M2M Platform • • • LTE Cat.4 Engine(World Wide). GPS, GLONASS, GALILEO and QZSS. NX32 for Linux - NX32L. Max 150 Mbps(DL)/Max 50 Mbps(UL). •... -
Page 50: Denmark
RTCU NX-900 Technical Manual V1.01 Advanced M2M/IIoT Gateway Environmental Specification Power Management Digital I/O Interface • • • Operating temperature: -40 to 60°C. Low-power modes. 4 x relay output. • Max. 5A @ 250VAC / 30 VDC • Battery charge temperature: Wait for Event: Timer, Digital input, •...
