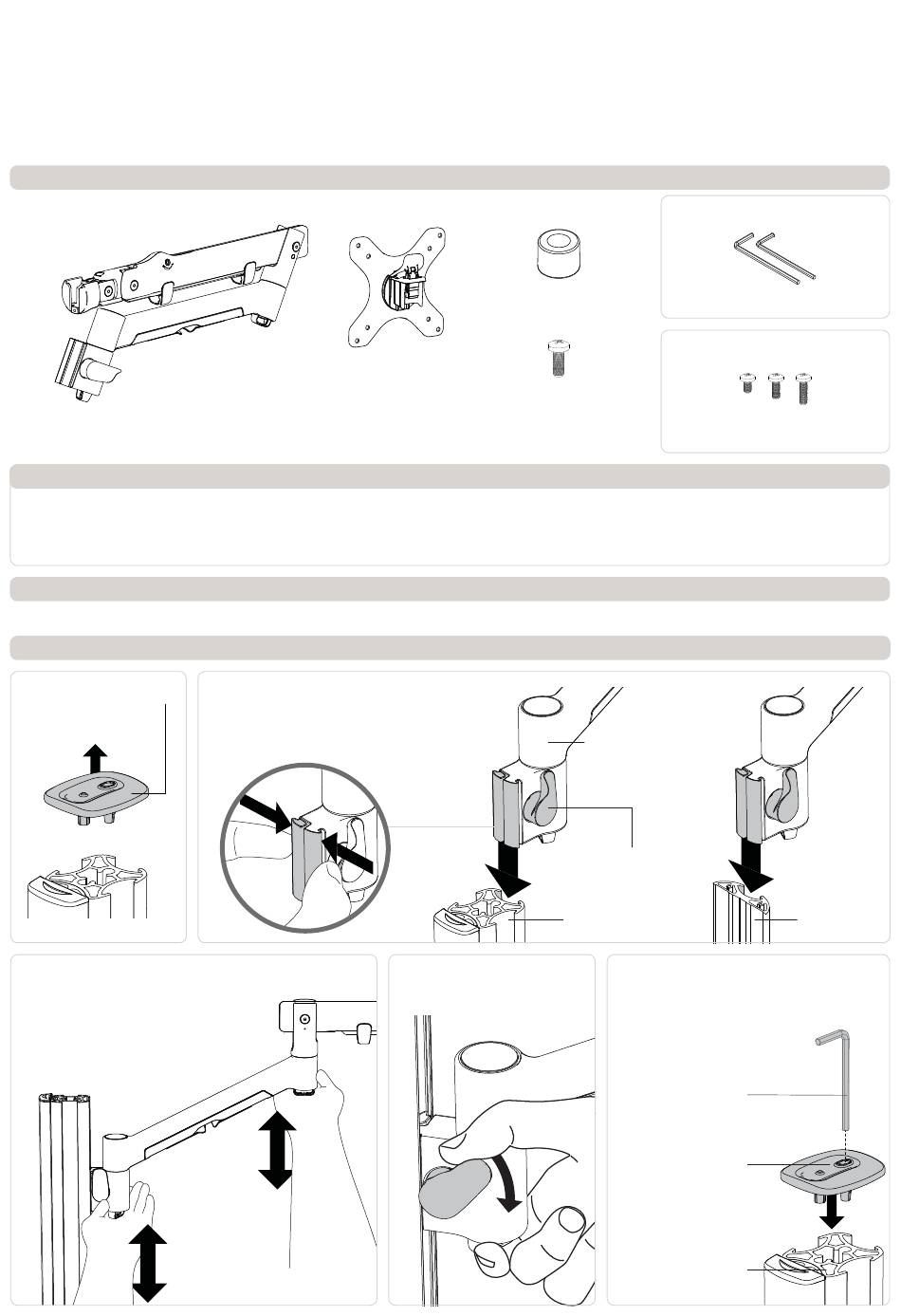

Component Checklist

Arm Assembly
IMPORTANT INFORMATION:
! IMPORTANT - Install Systema Monitor Spring Arm as per installation instruction.
! This product supports a minimum load of 1.5kg (3.3lbs) and maximum load of 8kg (17.6lbs).
! The manufacturer accepts no responsibility for incorrect installation.
! Compatible with Systema Posts: SP10, SP40, SP75 and Wall Channels: SW6 & SW35.

Step 1. Check Components

Check what you have received against the component checklist and hardware above.
Step 2. Mount Arm Assembly
2.1 Remove Post Top Cap.
Existing Systema Post
2.3 Move Channel Clamp to desired
height and ensure arm is supported.
SYSTEMA
VESA monitor head
2.2 Insert Arm Assembly into Channel
Note: Squeeze and hold Clamp Head before
inserting into the channel on Post Assembly or
Wall Channel.
Display Mounting
Spacers (x4)
M4 x 14mm (x1)
Silver Phillips Head
Security Screw
Note: Ensure Clamp
Head Lever is vertical
and unlocked.
Pole Assembly
2.4 Lock Channel Clamp at
preferred height.
'Click'

Installation Instructions

Systema | Monitor Spring Arm
HARDWARE
3/4mm Allen Keys
Display Mounting Screws
M4 x 12/16/25mm (x4)
Black Phillips Head Mounting Screws
Arm Assembly
2.5 Insert Post Top Cap into Post Assembly.
Allen Key
Post Top Cap
Note: An Allen Key
may be stored in the
Post Top Cap.
Post Assembly
Wall Channel
