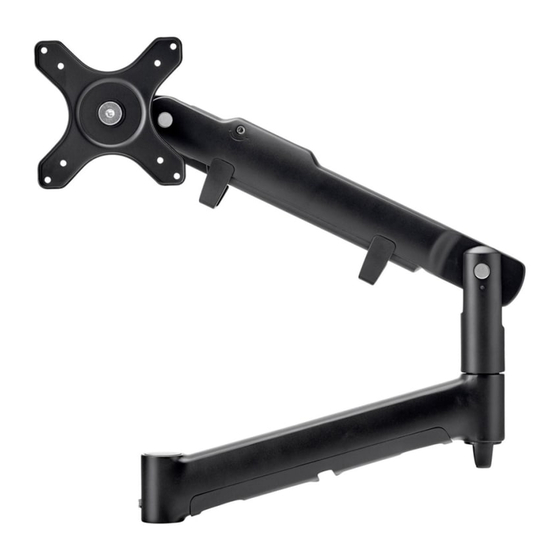

Dynamic Arm
COMPONENT CHECKLIST
A
Dynamic
Monitor Arm
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with Atdec AWM Series products.
! The Dynamic Arm (AWM-AD) requires a Post Clamp (AWM-LC, sold separately) for installation on an AWM Post.
! The Dynamic Arm (AWM-AD) requires a Desk Base (AWM-LB, sold separately) for installation directly onto an AWM fixing.
! The manufacturer accepts no responsibility for incorrect installation.
C
Screw
M4x25mm
(x4)
B
F
VESA
Spacer
head
(x4)
(x1)
D
E
Screw
Screw
M4x16mm
M4x12mm
(x4)
(x4)
G
H
Security
4mm
screw
allen key
(x1)
(x1)
Installation Guide
AWM-AD
REQUIRED TOOLS
• Phillips Head Screwdriver
WEIGHT RANGE
0 - 9kg
(0 - 20lbs)
AWM-AD Page 1 of 4
Advertisement
Related Manuals for Atdec AWM-AD
Summary of Contents for Atdec AWM-AD
- Page 1 ! The Dynamic Arm (AWM-AD) requires a Post Clamp (AWM-LC, sold separately) for installation on an AWM Post. ! The Dynamic Arm (AWM-AD) requires a Desk Base (AWM-LB, sold separately) for installation directly onto an AWM fixing. ! The manufacturer accepts no responsibility for incorrect installation.
- Page 2 4.1 Insert VESA head into the monitor arm 4.2 Ensure that the VESA head sits flush within 4.3 Push the lever down to secure the monitor arm. There should be no gap. it to the arm assembly Monitor arm No Gap AWM-AD Page 2 of 4...
- Page 3 When installing subsequent installation faster. monitors, pre-tension the arm to the recorded amount, then fine-tune the tension by Marker following steps 6.3 to 6.5. AWM-AD Page 3 of 4...
- Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20180724 AWM-AD Page 4 of 4 atdec.com | atdec.co.uk | atdec.com.au...
