Step 7. Adjusting the Display Bracket
Portrait/Landscape

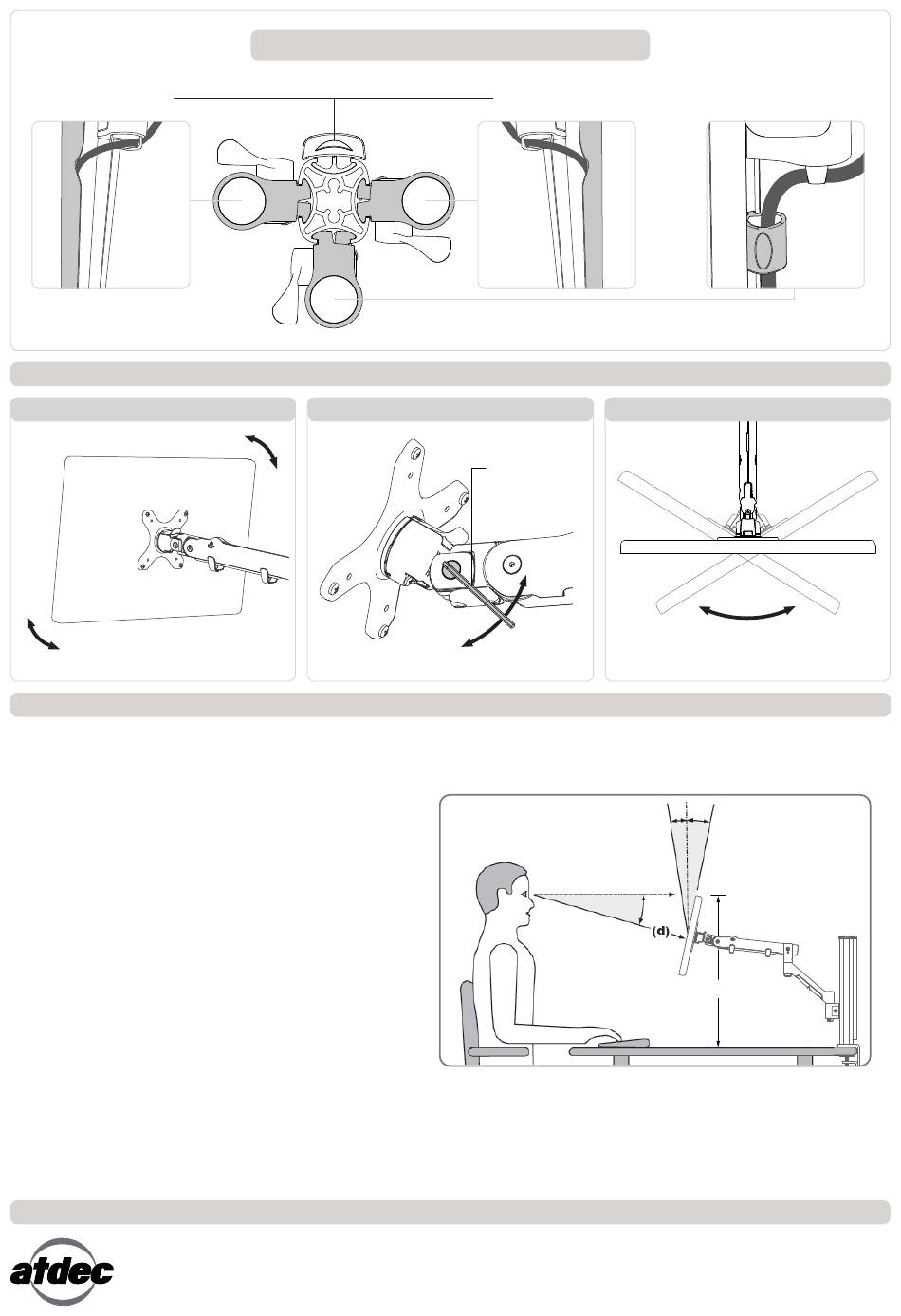

Ergonomic Guidelines

Many experts believe that the extended use of any computer screen has the potential to cause serious injury to your eyes,
neck and back. This can be largely avoided by correctly positioning your display.
Viewing angle: Ergonomists recommend that the optimal position
of your display should be slightly below eye level. When looking at
the display's centre the user should have a downward visual angle
of approximately 10°-20°.
Height: As a guide, the height (h) of your display should
approximately be as follows:
- Tall Male (Max): 560mm (22")
- Short Male (Min): 368mm (14.5")
- Tall Female (Max): 520mm (20.5")
- Short Female (Min) 356mm (14")
Distance: For visual comfort, a viewing distance (d) between
500mm (20") to 750mm (29.5") is recommended.
Tilt Angle: Angular adjustments to reduce reflection on your
monitor should range between 5° forward tilt to 15° backward tilt.
Installation Complete
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 12.02.14 ©
For a triple configuration Atdec recommends using:
Tilt (Screen angle up/down)
Tighten
Note: Support Screen when adjusting tilt.
Post Cable Cover
Pan (Screen angle left/right)
3mm Allen Key
Loosen
10º - 20º
Post Cable Clip
No Allen Key necessary
5º 15º
(h)
