Step 3. Install VESA monitor head

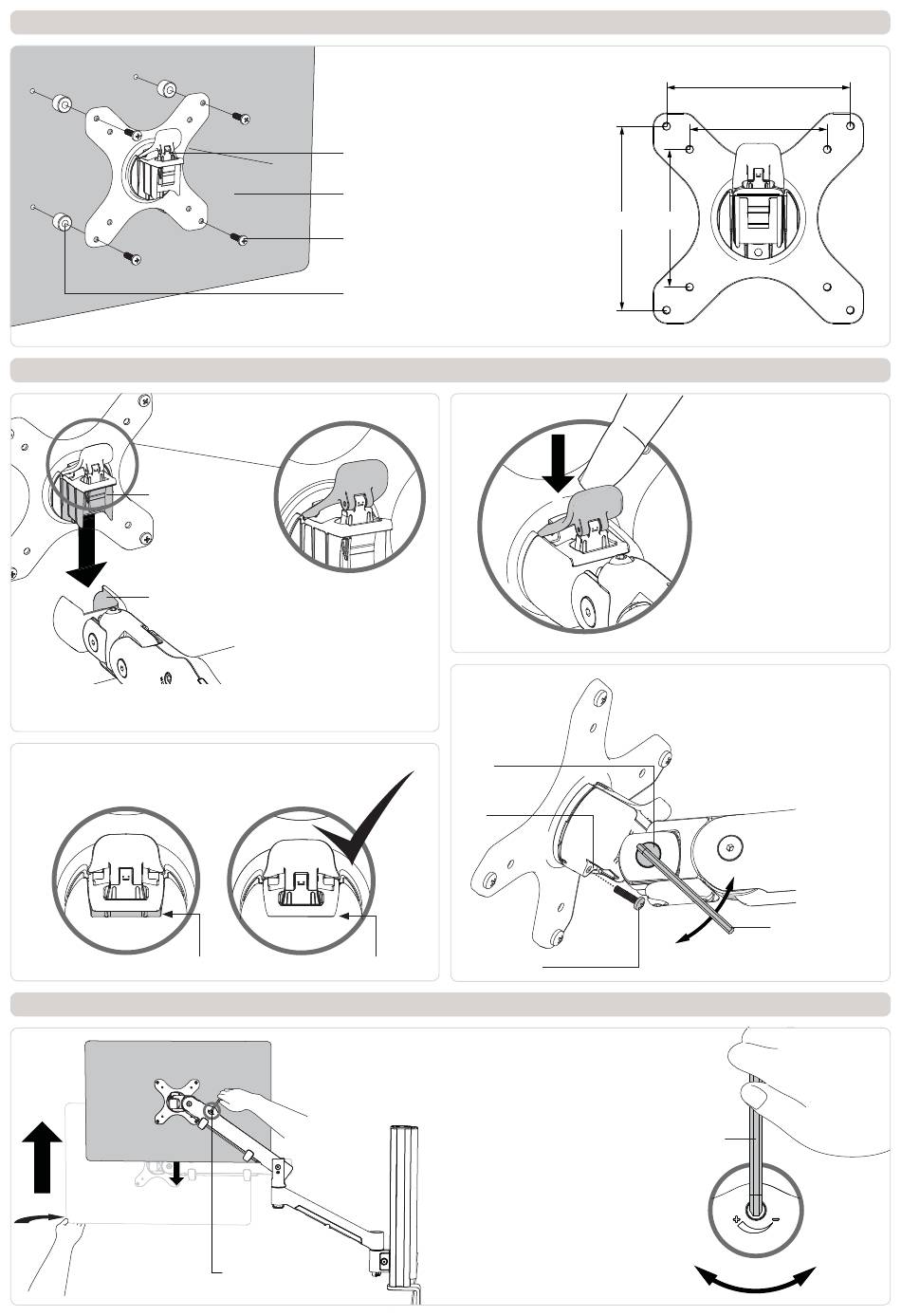

Step 4. Mount Display

VESA monitor head
Arm Assembly
4.1 Insert VESA monitor head into the receptacle in the Arm
Assembly.
x
4.2 Ensure that the VESA monitor head sits flush within the
Arm Assembly receptacle. There should be no gap.
Gap
Step 5. Adjust Spring Tension
3.1 Install VESA monitor head as shown.
VESA monitor head
Screen
M4x12/16/25mm
Phillips Head Mounting Screws
Spacers (may be required for
recessed and uneven surfaces)
Note: Ensure the Lever is
flicked up before installation
onto the Arm Assembly.
No Gap
5.1 To ensure the monitor will stay in position anywhere
within its range of movement, the spring tension on the
arm will need to be adjusted to suit the weight of the
monitor.
Spring Tension
Adjustment
100mm 75mm
Note: Support
Screen when
adjusting tilt.
Monitor head
screw
Security Screw
Hole
M4 x 14mm
Security Screw
Support the weight of the
monitor at a high position
(as shown) and tighten the
spring tension until you
feel the arm supporting the
weight of the monitor.
100mm
75mm
4.3 Once the VESA monitor
head is sitting flush, push
the lever down to secure it
to the Arm Assembly.
4.4 OPTIONAL
Ensure the Monitor is supported,
then loosen the Monitor head
screw with the 3mm Allen Key
and tilt screen up before installing
the M4 x 14mm Security Screw
into the Security Screw hole.
Loosen
3mm Allen Key
Tighten
4mm Allen Key
+ Tighten Loosen -
