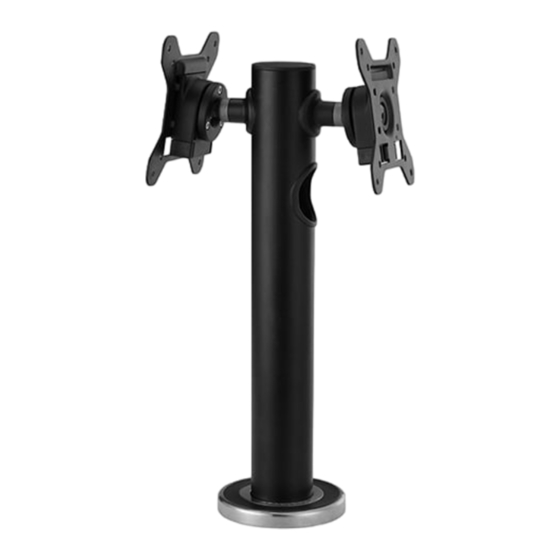

Atdec Spacedec SD-POS-VBM-B2B Installation Instructions

Atdec Spacedec SD-POS-VBM-B2B Installation Instructions

Advertisement

Quick Links

SD-POS-VBM
Component Checklist (Check you have received all parts against the Component Checklist below)
Screw Cover
(x1)
POS Assembly (x1)
Mounting Options
Your POS Multi offers 355° of
Rotation. This can also be limited
to suit a specific application.
The Direction in which you
mount POS Multi will determine
where the 5° gap in Rotation is
located, and how you choose to
limit the rotation.
Rotation Options
0° Rotation (Fixed)
0-90° Rotation
0-180° Rotation
0-270° Rotation
0-355° Rotation
Step 1. Limit Rotation
A. Determine the degree of
rotation you require. (Refer to
Mounting Options above)
B. To Limit the Rotation,
use the 2.5mm Allen Key to
insert the supplied M5
Grub Screw into your
chosen Locking Hole until it
sits flush with the Base Plate.
NOTE: If you want the full
355° rotation, you do NOT
need to install a grub screw.
Step 2. Locate and Secure your POS Multi
A. Position the Installation
Template in the desired location
on your work surface. Ensure the
straight edge sits perpendicular
with the User's line of sight. Mark
the center points of each of the
required holes onto the work
surface with a pencil.
B. Drill 4 x 3mm (
/
") Pilot
1
8
Holes to a depth of 15mm (
Use a 45mm (1¾") hole saw to
drill the Cable Access Hole in the
work surface.
C. Reposition POS Multi with
the "Direction Arrow" pointing in
the direction required for your
chosen rotation. Secure the POS
to the work surface using the
supplied 14 Gauge Screws (x4).
Installation Instructions
Installation Template
VESA plate (x1)
(x1)
Top Cap (x1)
Tightening Tool (x1)
Direction
Arrow
180°
270°
2.5mm Allen Key
M5 Grub Screw
Base Plate
/
").
9
16
4x M5
4x
M5x75mm Screws
(To suit 70mm
4 x Ø3mm (
/
")
1
8
Pilot Holes
Hardware
M4x10mm Screws (x4)
M4x12mm Screws (x4)
M4x16mm Screws (x4)
Security Screw (x1)
OR
5° Gap in
Rotation
90°
355°
USER
Locking Holes
4 x Ø3mm (
Pilot Holes
Centre for
Cable Management
45mm(1¾") Cable
Hole
Access Hole
14 Gauge
Screws (x4)
Ø45mm
(1¾") Cable
Access Hole
Display | POS Multi
2.5mm Allen Key (x1)
2mm Allen Key (x1)
14 Gauge Screws (x4)
M5 Grub Screw (x1)
5° Gap in
Rotation
355°
90°
Direction
Arrow
Direction Arrow
0° Locking Hole (Fixed)
0-90° Locking Hole
0-180° Locking Hole
0-270° Locking Hole
/
")
1
8
INSTALLATION
TEMPLATE
USER
270°
180°
USER
