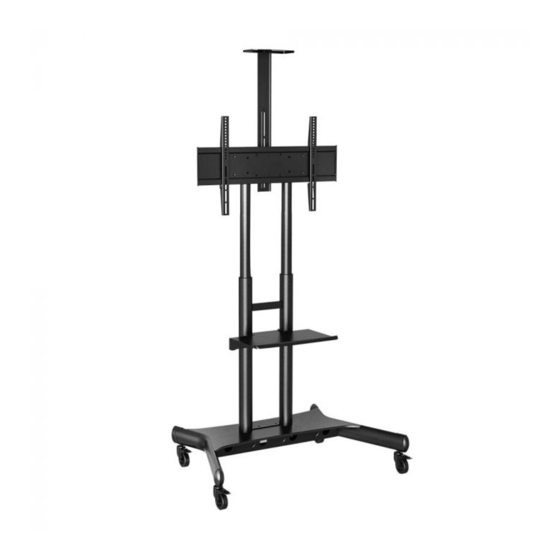

AV Cart 75

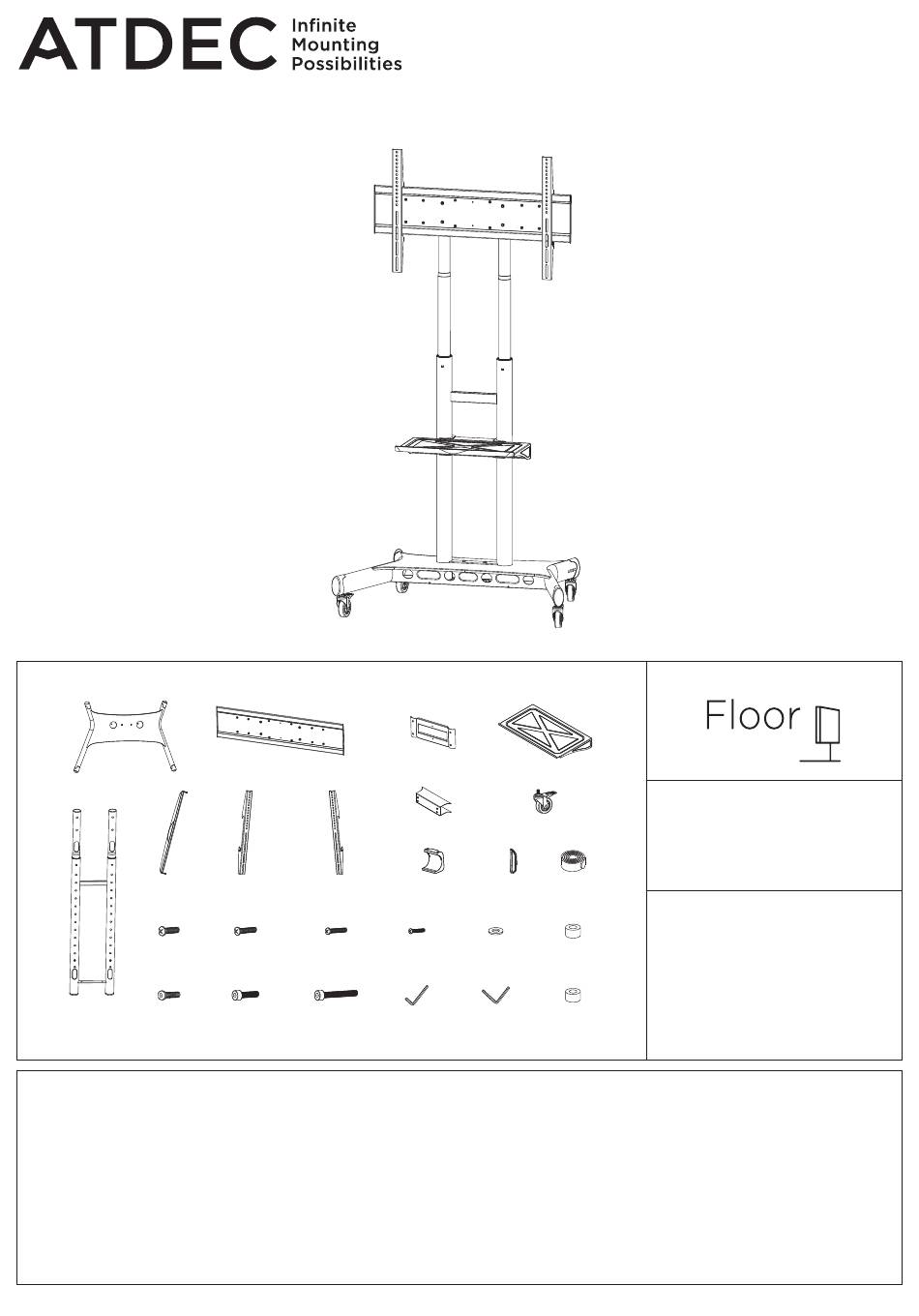

COMPONENT CHECKLIST

A
Base (x1)
F
Shelf Lip
(x1)
A1
M8x25
Screw (x4)
B
A2
Column (x1)
M8x20
Screw (x2)

IMPORTANT INFORMATION

!
Please ensure this product is installed as per these installation instructions.
!
The manufacturer accepts no responsibility for incorrect installation.
!
Failure to mount this product correctly may cause serious injury/death during or following installation.
!
This product should only be installed by professional installers of good mechanical aptitude, who fully understand these
instructions and the consequences of incorrect installation.
!
Do not over tighten screws.
!
Two person installation is recommended.
!
Product not suitable for use outdoors.
!
After installation is complete check to verify that AV Cart is secure and safe for use.
!
Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA
locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range.
Please contact Atdec if you would like further information.
!
WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control
or toys placed on the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.
C
Mounting Plate (x1)
G
H
LHS VESA
RHS VESA
Bracket (x1)
Bracket (x1)
B1
C1
M6x25
M5x25
Screw (x4)
Screw (x4)
B2
C2
M8x20
M8x72
Cap Screw (x2)
Cap Screw (x4)
D
E
Mounting Brace (x1)
Shelf (x1)
I
J
Shelf Clamp (x1)
Castor (x4)
K
L
Shelf Connection
Grommet
Hook and
(x2)
(x2)
Loop (x3)
D1
E1
M4x12
ø16xø6.2
ø15x10mm
Screw (x4)
Washer (x4)
Spacer (x4)
D2
E2
M5 Allen
M6 Allen
ø19x13mm
Key (x1)
Key (x1)
Spacer (x4)
Installation Guide

REQUIRED TOOLS

• Phillips Head Screwdriver
M

CAPACITY

F1
DISPLAY
0 - 75kg (0 - 165lb)
50" - 80"
SHELF
F2
0 - 11kg (0 - 24lb)
AD-TVC-75
AD-TVC-75 Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV Cart 75 and is the answer not in the manual?

Questions and answers

Summary of Contents for Atdec AV Cart 75

  • Page 1 Please contact Atdec if you would like further information. WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.
  • Page 2 WARNING! ! CART CAN TIP OVER RESULTING IN RISK OF INJURY! ! DO NOT ALLOW CHILDREN UNDER 16 TO PLAY WITH OR MOVE CART ! MOVE CART SLOWLY ONLY ADULTS SHOULD DO NOT APPLY NEVER APPLY FORCE DO NOT PULL APPLY FORCE ON LOCK UNLOCK...
  • Page 3 4. Install shelf Note: To adjust shelf height loosen 4x screws under shelf, slide shelf up or down into position then tighten screws to set. 5. Attach mounting plate 6. Attach VESA brackets to display Remove, retain for step 7.2 F1 E1 (A1,B1,C1)+E1+F1/D1+E1 M5x25mm C1...
  • Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20210915...
