Step 6. Cable Management - Atdec SYSTEMA SW6S Installation Instructions Manual

Step 5. Adjust Spring Tension (cont.)

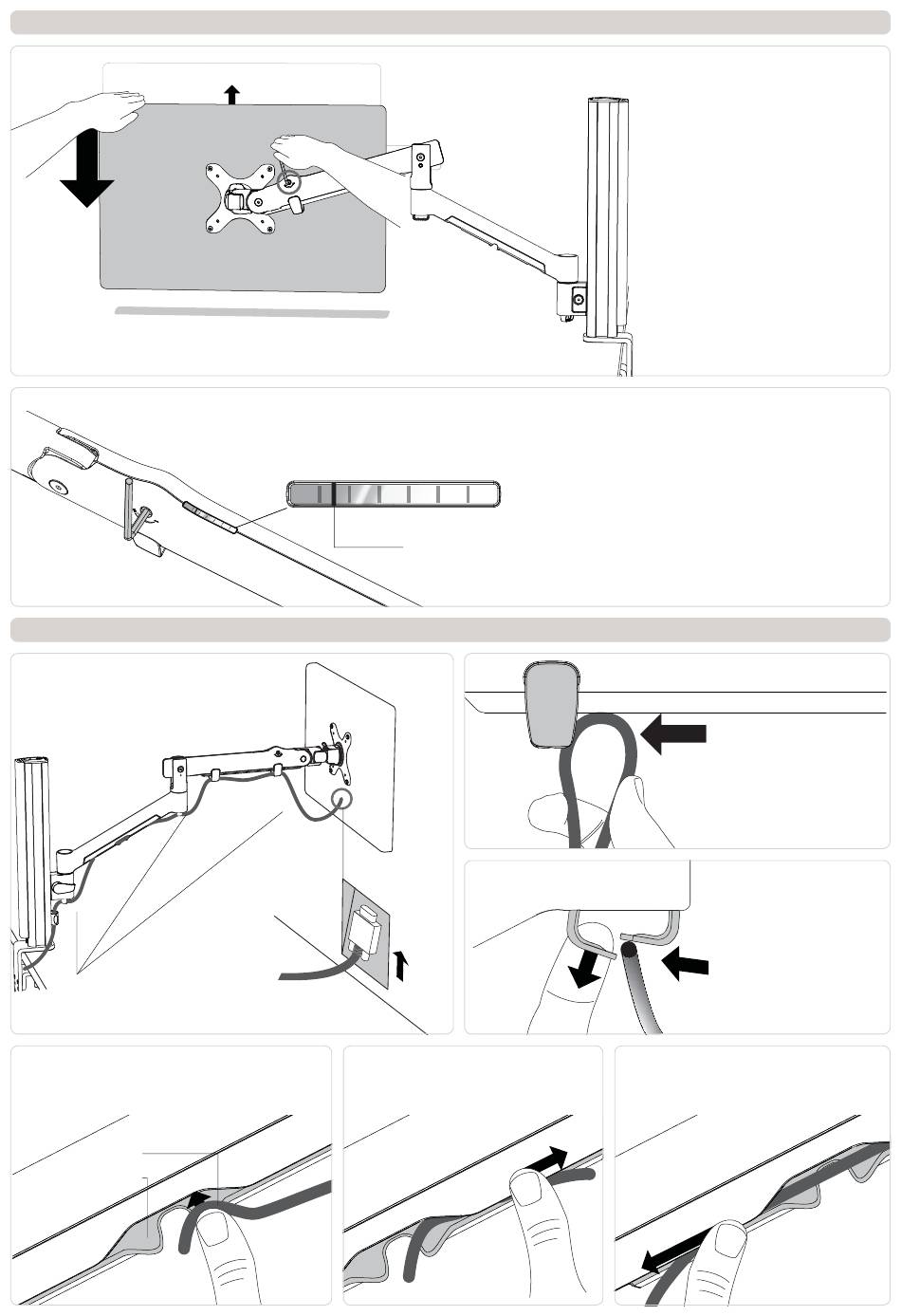

Step 6. Cable Management

6.1 Plug your cables into the
monitor and follow this cable
management system route.
Note: Ensure enough cable slack
is given to allow for movement.
6.4 Push the cable up into the gap in the lower
arm Cable Cover.
Cable
Cable Cover
Spring Tension Gauge
Red Marker
6.5 Whilst maintaining pressure on the
cable, slide the cable into the groove and
follow it up.
5.2 Push the monitor down to
the bottom. If the screen bounces
back this may indicate too much
tension. Loosen the spring tension
1 turn at a time until no bounce
is observed.
Once adjustments have been
made, move the arm assembly
through the full range of movement
to ensure it moves freely and holds
its position.
5.3 MULTIPLE ARM INSTALLATIONS
When installing multiple SYSTEMA products using
monitors of the same weight, observe the location of
the red marker on the Spring Tension Gauge and
set the tension to the same position on all arms.
Max weight: 8 kg.
6.2 Loop the cable
and push it through the
Forearm Cable Clip gap.
6.3 At the Elbow, pull one
side of the clip down and
push the cable through
the gap.
6.6 Whilst maintaining pressure on the
cable, slide the cable into the groove and
follow it down.
