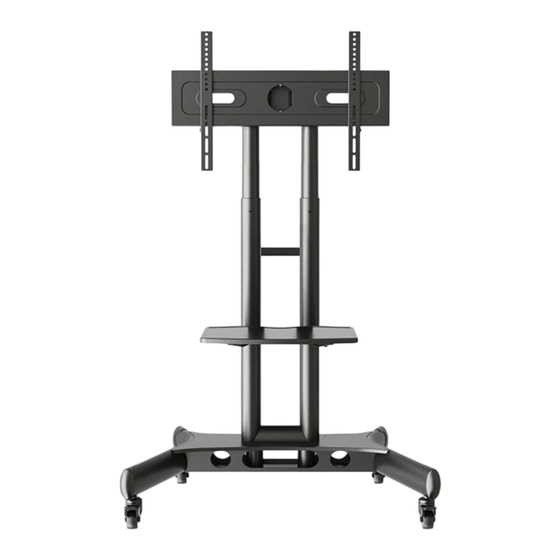

Atdec AD-TVC-45 Installation Manual

AV Cart 45
COMPONENT CHECKLIST
A
Base (x1)
H
Grommet
(x4)
B
Column
(x1)
A2
M8x26
Cap Screw Cap Screw
(x6)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these
instructions and the consequences of incorrect installation.
! Do not over tighten screws.
! Two person installation is recommended.
! Product not suitable for use outdoors.
! After installation is complete check to verify that TV Cart is secure and safe for use.
! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA
locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range.
Please contact Atdec if you would like further information.
! WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control
or toys placed on the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.
C D
Mounting Plate (x1) Mounting
Brace (x1)
I J K
Shelf LHS Vesa LHS Vesa
(x1) Bracket (x1) Bracket (x1)
B2 C2 D2
M8x55 M5x15 Display
Screw (x2) Lock (x2)
(x4)
E F G
Cover Shelf Castor
(x1) Clamp (x2) (x4)
L M N
LHS Shelf RHS Shelf Hook and
Support (x1) Support (x1)
Loop (x3)
E2 F2
ø16.5xø12.5 M6 Allen
Washer (x4) Key (x1)
Installation Guide
AD-TVC-45
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
DISPLAY
0-45kg (0-100lb)
32"-65"
SHELF
0-4.5kg (0-10lb)
Atdec AD-TVC-45 Page 1 of 4
