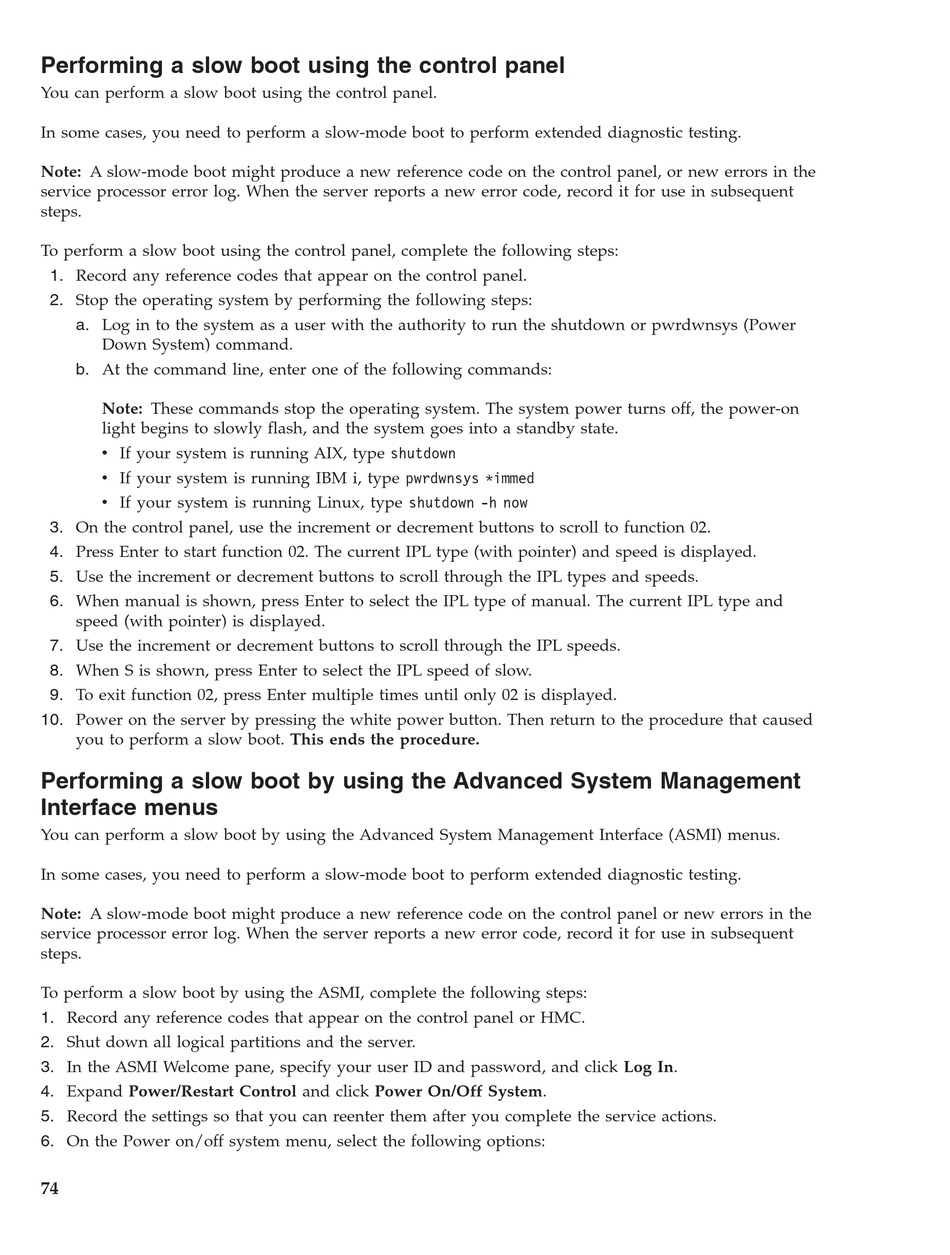

Performing a slow boot using the control panel

You can perform a slow boot using the control panel.
In some cases, you need to perform a slow-mode boot to perform extended diagnostic testing.
Note: A slow-mode boot might produce a new reference code on the control panel, or new errors in the
service processor error log. When the server reports a new error code, record it for use in subsequent
steps.
To perform a slow boot using the control panel, complete the following steps:
1. Record any reference codes that appear on the control panel.
2. Stop the operating system by performing the following steps:
a. Log in to the system as a user with the authority to run the shutdown or pwrdwnsys (Power
Down System) command.
b. At the command line, enter one of the following commands:
Note: These commands stop the operating system. The system power turns off, the power-on
light begins to slowly flash, and the system goes into a standby state.
v If your system is running AIX, type shutdown
v If your system is running IBM i, type pwrdwnsys *immed
v If your system is running Linux, type shutdown -h now
3. On the control panel, use the increment or decrement buttons to scroll to function 02.
4. Press Enter to start function 02. The current IPL type (with pointer) and speed is displayed.
5. Use the increment or decrement buttons to scroll through the IPL types and speeds.
6. When manual is shown, press Enter to select the IPL type of manual. The current IPL type and
speed (with pointer) is displayed.
7. Use the increment or decrement buttons to scroll through the IPL speeds.
8. When S is shown, press Enter to select the IPL speed of slow.
9. To exit function 02, press Enter multiple times until only 02 is displayed.
10. Power on the server by pressing the white power button. Then return to the procedure that caused
you to perform a slow boot. This ends the procedure.
Performing a slow boot by using the Advanced System Management
Interface menus
You can perform a slow boot by using the Advanced System Management Interface (ASMI) menus.
In some cases, you need to perform a slow-mode boot to perform extended diagnostic testing.
Note: A slow-mode boot might produce a new reference code on the control panel or new errors in the
service processor error log. When the server reports a new error code, record it for use in subsequent
steps.
To perform a slow boot by using the ASMI, complete the following steps:
1. Record any reference codes that appear on the control panel or HMC.
2. Shut down all logical partitions and the server.
3. In the ASMI Welcome pane, specify your user ID and password, and click Log In.
4. Expand Power/Restart Control and click Power On/Off System.
5. Record the settings so that you can reenter them after you complete the service actions.
6. On the Power on/off system menu, select the following options:
74
