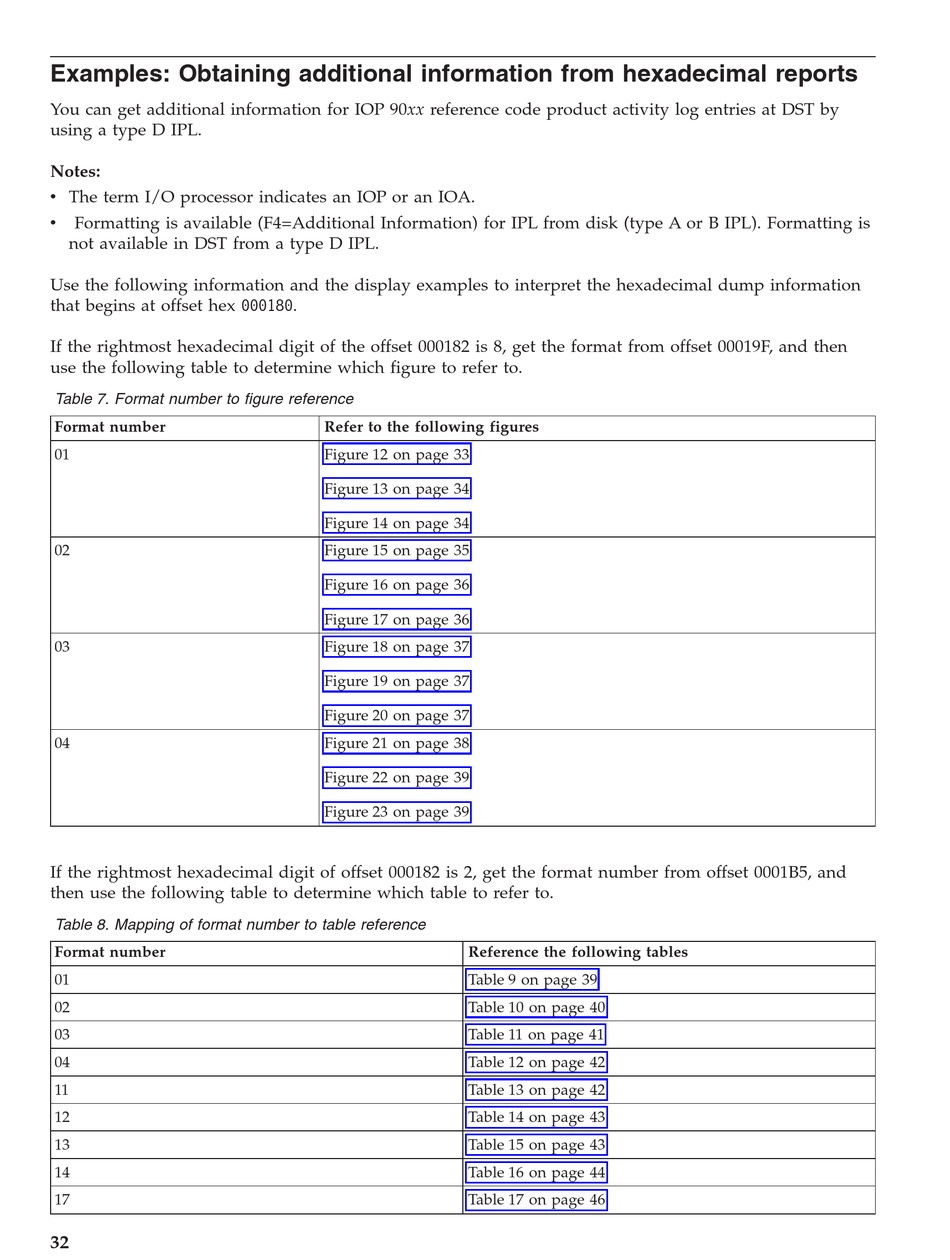

Examples: Obtaining additional information from hexadecimal reports

You can get additional information for IOP 90xx reference code product activity log entries at DST by
using a type D IPL.
Notes:
v The term I/O processor indicates an IOP or an IOA.
Formatting is available (F4=Additional Information) for IPL from disk (type A or B IPL). Formatting is
v
not available in DST from a type D IPL.
Use the following information and the display examples to interpret the hexadecimal dump information
that begins at offset hex 000180.
If the rightmost hexadecimal digit of the offset 000182 is 8, get the format from offset 00019F, and then
use the following table to determine which figure to refer to.
Table 7. Format number to figure reference
Format number
01
02
03
04
If the rightmost hexadecimal digit of offset 000182 is 2, get the format number from offset 0001B5, and
then use the following table to determine which table to refer to.
Table 8. Mapping of format number to table reference
Format number
01
02
03
04
11
12
13
14
17
32
Refer to the following figures
Figure 12 on page 33
Figure 13 on page 34
Figure 14 on page 34
Figure 15 on page 35
Figure 16 on page 36
Figure 17 on page 36
Figure 18 on page 37
Figure 19 on page 37
Figure 20 on page 37
Figure 21 on page 38
Figure 22 on page 39
Figure 23 on page 39
Reference the following tables
Table 9 on page 39
Table 10 on page 40
Table 11 on page 41
Table 12 on page 42
Table 13 on page 42
Table 14 on page 43
Table 15 on page 43
Table 16 on page 44
Table 17 on page 46
