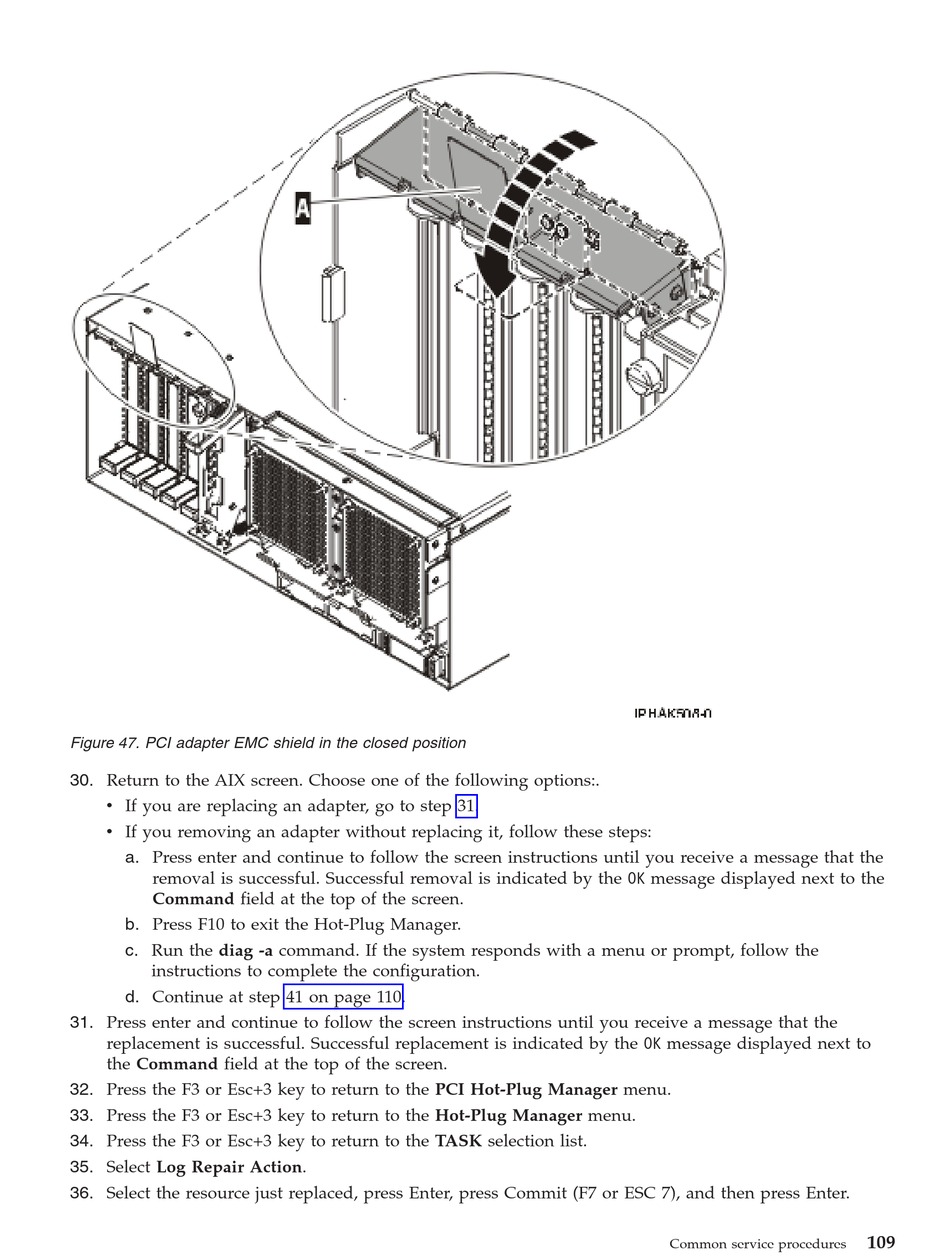

Figure 47. PCI adapter EMC shield in the closed position
30. Return to the AIX screen. Choose one of the following options:.
v If you are replacing an adapter, go to step 31.
v If you removing an adapter without replacing it, follow these steps:
a. Press enter and continue to follow the screen instructions until you receive a message that the
removal is successful. Successful removal is indicated by the OK message displayed next to the
Command field at the top of the screen.
b. Press F10 to exit the Hot-Plug Manager.
c. Run the diag -a command. If the system responds with a menu or prompt, follow the
instructions to complete the configuration.
d. Continue at step 41 on page 110.
31. Press enter and continue to follow the screen instructions until you receive a message that the
replacement is successful. Successful replacement is indicated by the OK message displayed next to
the Command field at the top of the screen.
32. Press the F3 or Esc+3 key to return to the PCI Hot-Plug Manager menu.
33. Press the F3 or Esc+3 key to return to the Hot-Plug Manager menu.
34. Press the F3 or Esc+3 key to return to the TASK selection list.
35. Select Log Repair Action.
36. Select the resource just replaced, press Enter, press Commit (F7 or ESC 7), and then press Enter.
