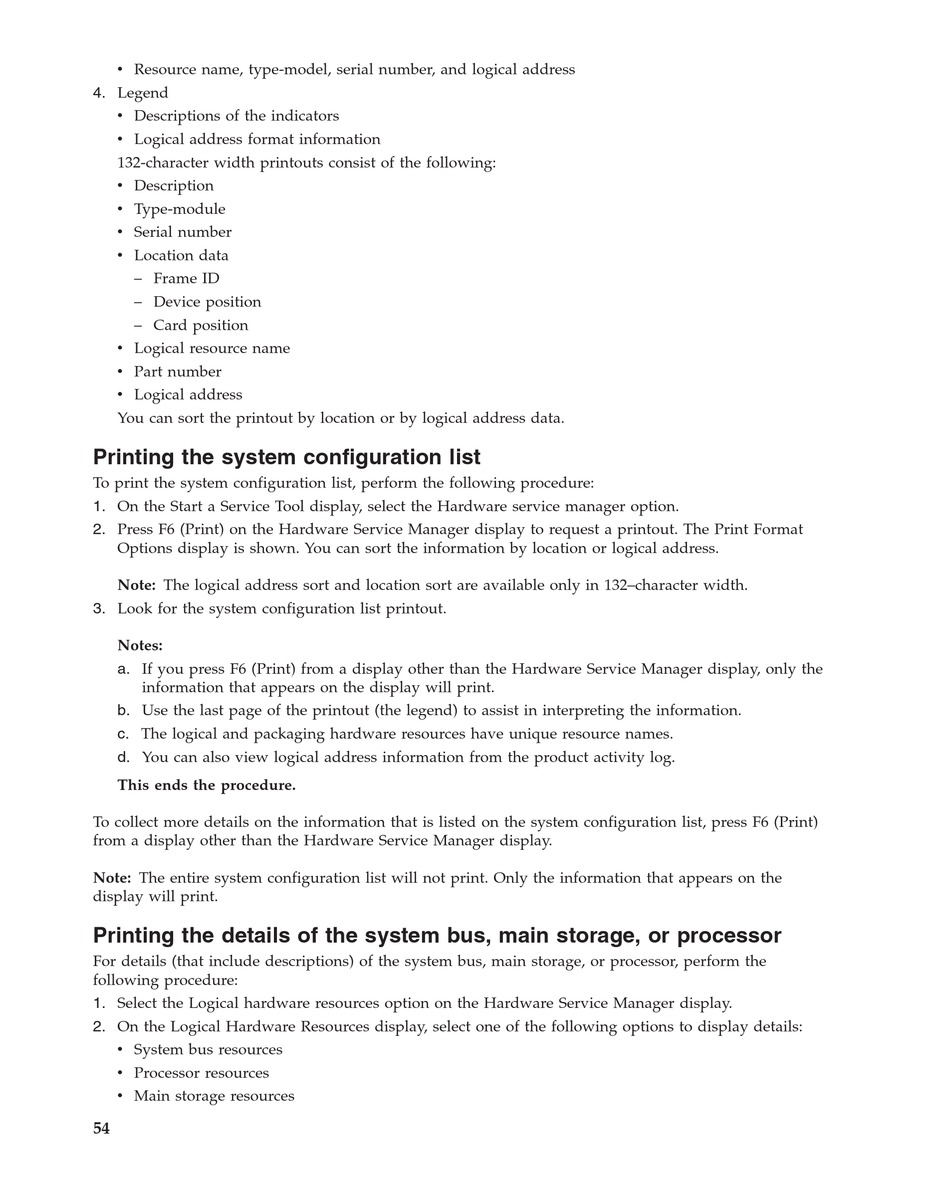

v Resource name, type-model, serial number, and logical address
4. Legend
v Descriptions of the indicators
v Logical address format information
132-character width printouts consist of the following:
v Description
v Type-module
v Serial number
v Location data
– Frame ID
– Device position
– Card position
v Logical resource name
v Part number
v Logical address
You can sort the printout by location or by logical address data.

Printing the system configuration list

To print the system configuration list, perform the following procedure:
1. On the Start a Service Tool display, select the Hardware service manager option.
2. Press F6 (Print) on the Hardware Service Manager display to request a printout. The Print Format
Options display is shown. You can sort the information by location or logical address.
Note: The logical address sort and location sort are available only in 132–character width.
3. Look for the system configuration list printout.
Notes:
a. If you press F6 (Print) from a display other than the Hardware Service Manager display, only the
information that appears on the display will print.
b. Use the last page of the printout (the legend) to assist in interpreting the information.
c. The logical and packaging hardware resources have unique resource names.
d. You can also view logical address information from the product activity log.
This ends the procedure.
To collect more details on the information that is listed on the system configuration list, press F6 (Print)
from a display other than the Hardware Service Manager display.
Note: The entire system configuration list will not print. Only the information that appears on the
display will print.

Printing the details of the system bus, main storage, or processor

For details (that include descriptions) of the system bus, main storage, or processor, perform the
following procedure:
1. Select the Logical hardware resources option on the Hardware Service Manager display.
2. On the Logical Hardware Resources display, select one of the following options to display details:
v System bus resources
v Processor resources
v Main storage resources
