Menu Contents - TVLogic LVM-420A Operation Manual

Menu Contents

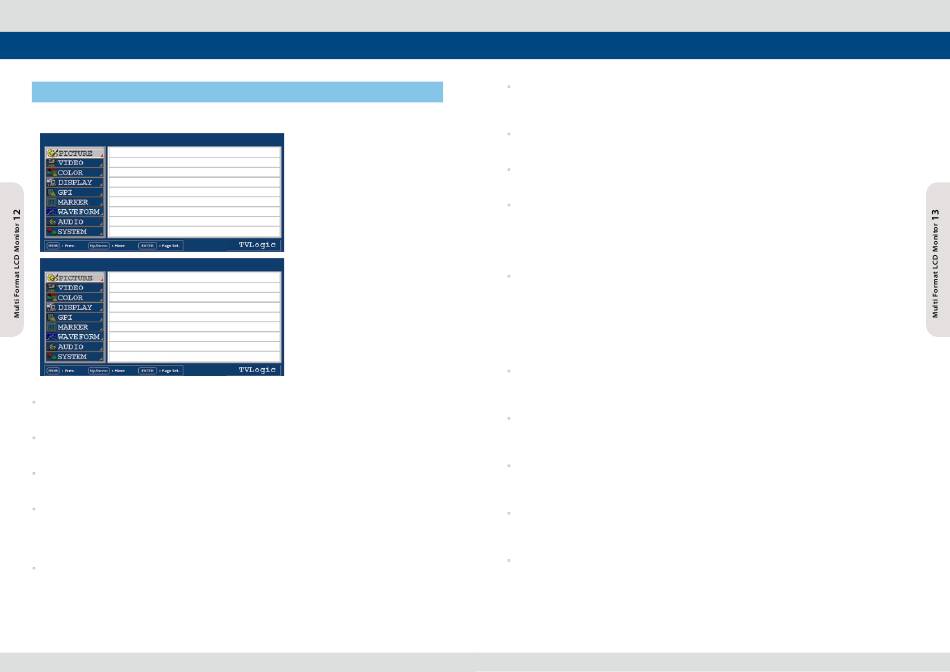

[1] PICTURE
Below is the description for each function of the PICTURE menu.
SDI A LVM-420A
PAGE I >> PAGE II
BRIGHT
CONTRAST
CHROMA
PHASE
APERTURE
NTSC SETUP
VGA H POSITION
VGA V POSITION
SDI A LVM-420A
PAGE II >> PAGE I
BLUE ONLY
FOCUS ASSIST LEVEL
FOCUS ASSIST COLOR
USER ASPECT HORIZONTAL
USER ASPECT VERTICAL
BACK LIGHT
NOISE REDUCTION
BRIGHT
◦
- Controls the degree of brightness between MIN (-100) and MAX (100).
◦ CONTRAST
- Controls the contrast ratio between MIN (-100) and MAX (100).
CHROMA
◦
- Controls saturation between MIN (-50) and MAX (50).
◦ PHASE
- Controls PHASE value (hue) between MIN (-50) and MAX (50).
- Only available in COMPOSITE 1/2/3 and S-VIDEO modes.
- Phase control in DVI ANALOG mode is between MIN (0) and MAX (63).
APERTURE
◦
- Controls the picture sharpness between MIN (0) and MAX (25).
1080/60i
0
0
0
0
MIN
7.5IRE
MIN
MIN
1080/60i
OFF
MIN
RED
1920
1080
50
MIN
Menu Contents
NTSC SETUP
◦
- This item sets the IRE value under NTSC mode between 0 IRE and 7.5 IRE.
- Only available in COMPOSITE 1/2/3 and S-VIDEO modes containing a NTSC signal.
◦ VGA H POSITION
- Controls horizontal position of DVI analog image between MIN (-15) and MAX (15).
VGA V POSITION
◦
- Controls vertical position of DVI analog image between MIN (-10) and MAX (10).
BLUE ONLY
◦
- Used to activate MONO mode or remove red and green from the input signal and display the
screen only under a blue signal.
- Press the button again to activate the Focus Assist mode which will indicate the border lines
of display in the color that can be selected in the Waveform menu.
FOCUS ASSIST LEVEL
◦
- Controls focus assist level.
- Available values are between 0 ~ 100. Larger value means greater detail detection.
- Focus assist color is presented when the difference between the border selections exceeds the
selected value.
- This features is only available when FOCUS ASSIST mode is selected. FOCUS ASSIST mode can be
selected by choosing BLUE ONLY menu in the PICTURE of main menu.
◦ FOCUS ASSIST COLOR
- Initialize the displayed color when the value of FOCUS ASSIST is exceeded.
- Available values are red, green and blue.
USER ASPECT HORIZONTAL
◦
- Used to set the horizontal aspect ratio of the screen arbitrarily.
* Value range : 1280 ~ 1920
USER ASPECT VERTICAL
◦
- Used to set the vertical aspect ratio of the screen arbitrarily.
* Value range : 720 ~ 1080
BACK LIGHT
◦
- Controls the backlight level of the LCD panel.
- The values are between MIN (0) and MAX (100). Higher value means brighter screen.
NOISE REDUCTION
◦
- Configure 3D-Noise Reduction filter.
- Adjustment range is from 0 to 10
- Turn off 3D-Noise Reduction Filter, when the value is "0".
