TVLogic LVM-420A Operation Manual page 9

Menu Contents

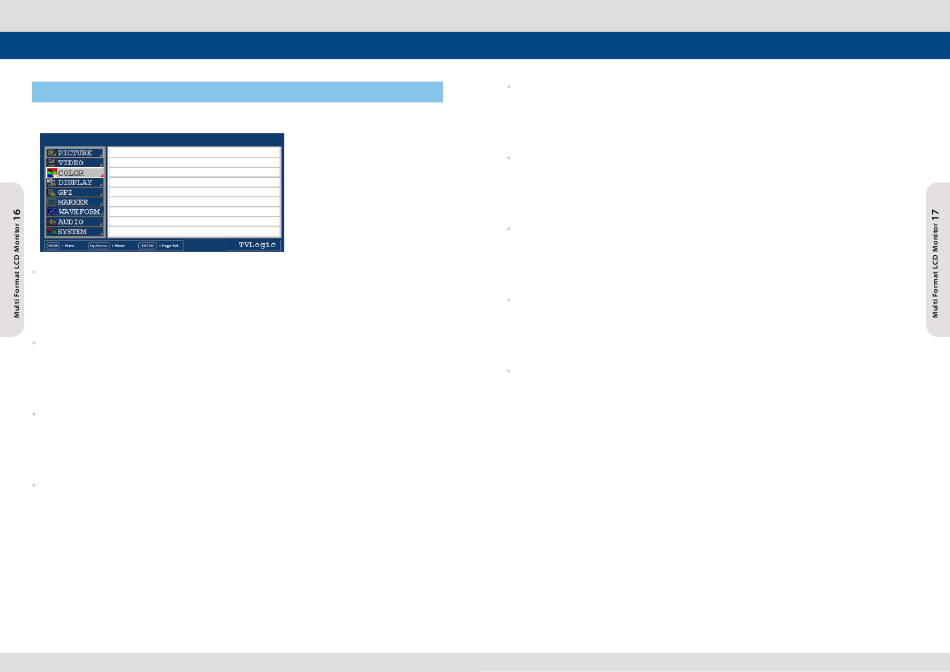

[3] COLOR
Below is the description for each function of the COLOR menu.
SDI A LVM-420A
COLOR TEMP
GAIN RED
GAIN GREEN
GAIN BLUE
BIAS RED
BIAS GREEN
BIAS BLUE
COLOR COPY
◦ COLOR TEMP
- This item ontrols color temperature and allows instant access to preset color temperature settings.
- Available color temperatures are 3200K, 5000K, 5600K, 6500K, 9300K and Custom 1/2/3.
- RGB GAIN, BIAS and COLOR COPY values activate only in CUSTOM 1/2/3 modes.
- Backlight value is adjustable for each color temperature.
◦ GAIN RED
- Controls red color.
- The value is selectable between MIN (-256) and MAX (255).
- Adjusts red color of bright section.
- Only available in CUSTOM 1/2/3 mode.
GAIN GREEN
◦
- Controls green color.
- The value is selectable between MIN (-256) and MAX (255).
- Adjusts green color of bright section.
- Only available in CUSTOM 1/2/3 mode.
GAIN BLUE
◦
- Controls blue color.
- The value is selectable between MIN (-256) and MAX (255).
- Adjusts blue color of bright section.
- Only available in CUSTOM 1/2/3 mode.
1080/60i
6500K
0
0
0
0
0
0
6500K
Menu Contents
BIAS RED
◦
- This item adjusts black level to control red color.
- The value is selectable between MIN (-100) and MAX (+100).
- Adjusts red color of dark section.
- Only available in CUSTOM 1/2/3 mode.
BIAS GREEN
◦
- This item adjusts black level to control green color.
- The value is selectable between MIN (-100) and MAX (+100).
- Adjusts green color of dark section.
- Only available in CUSTOM 1/2/3 mode.
BIAS BLUE
◦
- This item adjusts black level to control blue color.
- The value is selectable between MIN (-100) and MAX (+ 100).
- Adjusts blue color of dark section.
- Only available in CUSTOM 1/2/3 mode.
◦ COLOR COPY
- Used to copy pre-stored color temperature settings into a CUSTOM 1/2/3 mode.
- In CUSTOM mode, find and select the color temperature to be used as a starting point of custom
color temperature.
- Only available in CUSTOM 1/2/3 mode.
◦ GAMMA CURVE
- Used to change the Gamma Curve from 1.0 to 3.0.
- Available values are from 1.0 to 3.0.
