Satel INT-SCR-BL Manual

The INT-SCR-BL multifunctional keypad with proximity
card reader can operate as:
partition keypad – a device supported by the CA-64 alarm
control panel, as well as INTEGRA control panels with
any firmware version, and identified as INT-S/SK. It is
designed to control arming of one partition. The device
makes it possible to execute the functions of access
control and electromagnetic door lock operation. It
enables changing the user code and calling the control
functions for outdoor devices, and identifies users by
their access code.
partition keypad with proximity card reader – a device
supported by the INTEGRA control panels with firmware
version 1.05 or later and identified as INT-SCR. It
performs identical functions as the partition keypad, but
allows the users to use proximity cards.
entry keypad – a device supported by the INTEGRA
control panels with firmware version 1.05 or later and
identified as INT-ENT. The main task of the entry
keypad is activation of the delay in the partition for the
zones with reaction type
period during which these zones will act as delayed
ones is programmable for the keypad. After expiry of the
programmed time, the interior delayed zones again act
as instant ones, unless the partition is disarmed.
Design of the keypad enables it to be installed outdoors.
The device is additionally equipped with a bell button to
control the OC type low-current output. Press the button to
short the output to the common ground.
This manual applies to the module with firmware version
1.01 or later.
1. Description of the Keypad
The partition keypad has 13 keys with permanent or
temporary (automatically activated) mode backlit and LED
indicators:
-
(red color),
ALARM
-
(green color),
ARMED
-
(yellow color).
TROUBLE
Information conveyed by means of the LED indicators depends on the keypad operating mode.
Alternative blinking of all the LEDs (from the left to the right) indicates lack of communication between
the keypad and the control panel. This situation may take place when the STARTER program is
running in the control panel, or when the cable connecting the keypad and the control panel is
damaged.
MULTIFUNCTIONAL KEYPAD
WITH PROXIMITY CARD READER
®
3. I
NTERIOR DELAYED
INT-SCR-BL
. The time

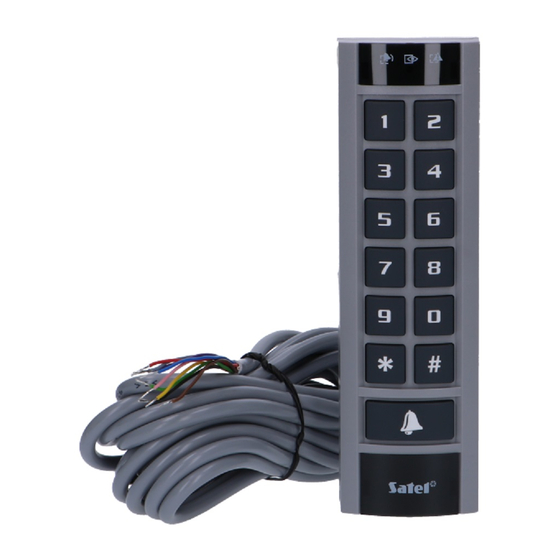

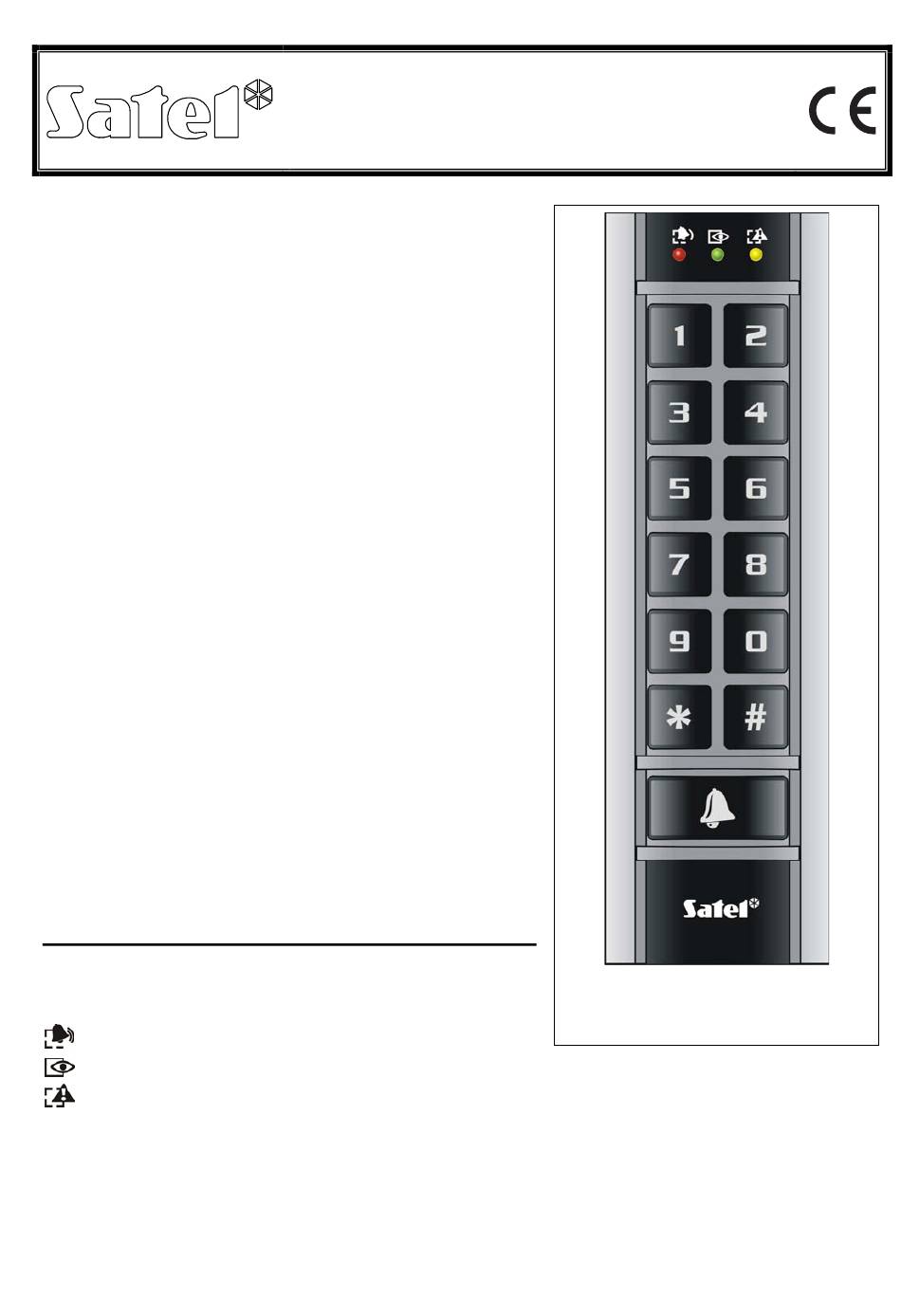

Fig. 1. INT-SCR-BL multifunctional
int-scr_en 08/08
keypad.
