Satel INT-S-GR Manual

The INT-S-GR and INT-S-BL partition keypads are designed for work in conjunction with
INTEGRA and CA-64 alarm control panels. They differ in the backlight color of their keys,
which is green in the INT-S-GR and blue in the INT-S-BL. The partition keypads are used to
control the arming mode in one partition, to perform a function of monitoring access and
controlling operation of the electromagnetic door locks, as well as monitoring closure of those
doors. The keypads make it possible to change the user code and call the functions
controlling the external devices.
This manual applies to the partition keypad with firmware version 1.2.

1. Description of partition keypad

The partition keypad has 12 keys with permanent or temporary (automatically activated)
mode backlight and LED indicators.
LED designation:
- (red color) - steady light
ALARM
indicates an alarm in the keypad
controlled
indicates that an alarm was triggered
in the partition.
- (green color) - steady light
ARMED
indicates that the partition to which the
keypad is assigned has been armed.
Blinking indicates countdown of the
exit delay.
- (yellow color) – blinking
TROUBLE
indicates that a technical problem has
occurred. The signaling applies to
troubles from the entire alarm system,
not only from the keypad controlled
partition. The type of trouble can be
checked on the LCD keypad. Arming
the keypad controlled partition will
disable
Disarming the partition will restore the
trouble signaling.
Alternative blinking of all the LEDs (from top to bottom) indicates lack of communication
between the keypad and the control panel. This situation may take place when the STARTER
PARTITION KEYPADS
®
partition, while
the trouble signaling.

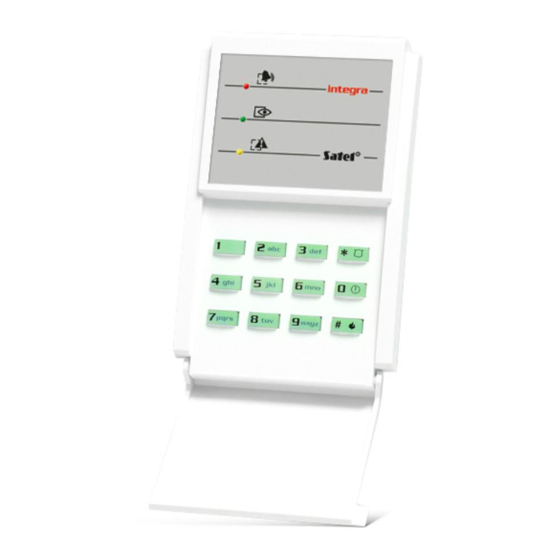

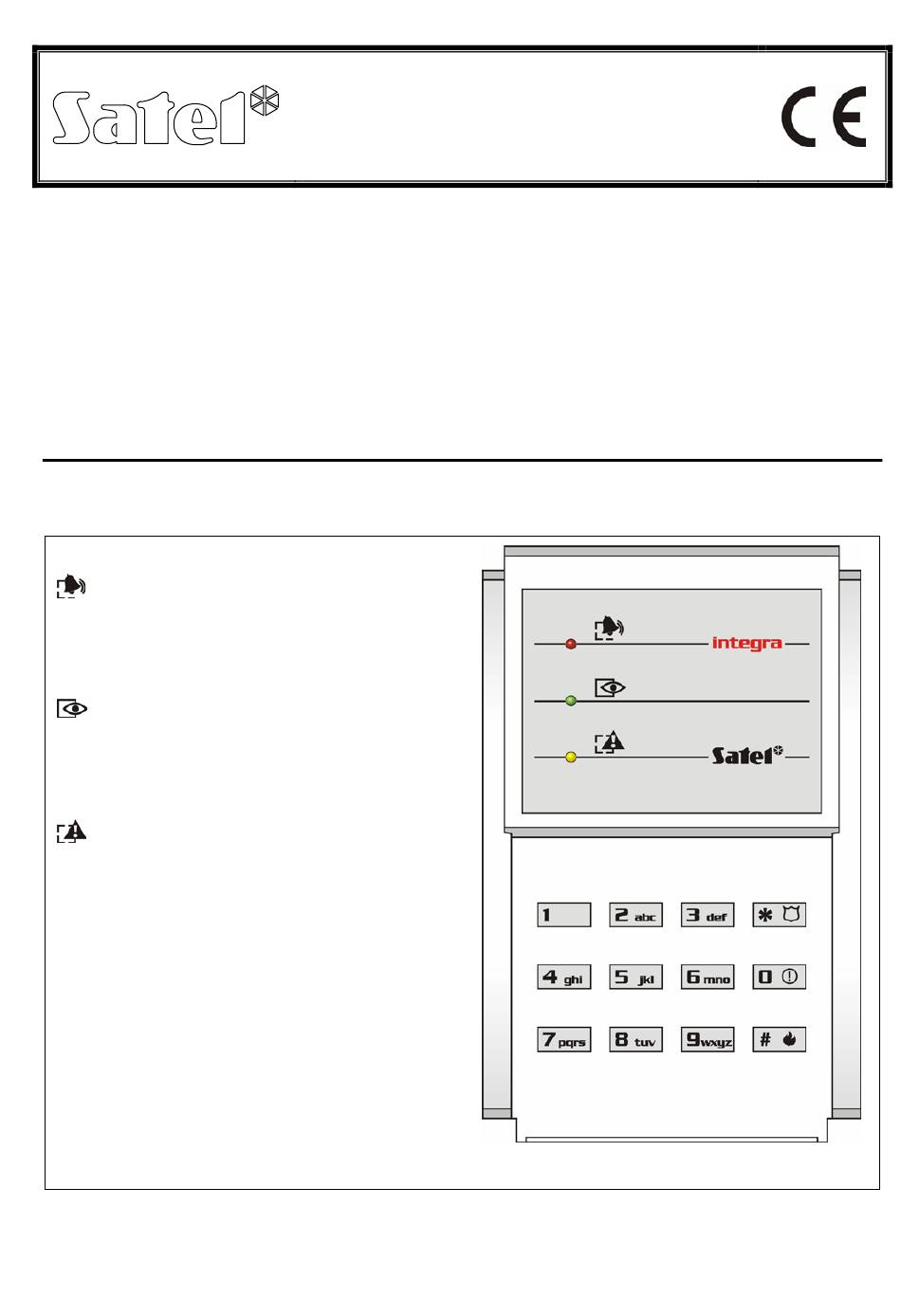

Figure 1. Partition keypad.
INT-S-GR
INT-S-BL
blinking
int-s_e 04/06
