Satel INT-SK-GR Manual

The INT-SK-GR partition keypad is designed for work in conjunction with INTEGRA and
CA-64 alarm control panels. It is used to control the arming mode in one partition, to perform
a function of monitoring access and controlling operation of the electromagnetic door locks,
as well as monitoring closure of those doors. The keypad makes it possible to change the
user code and call the functions controlling the external devices.
This manual applies to the partition keypad with firmware version 1.10.

1. Description of partition keypad

The partition keypad has 12 keys with permanent or temporary (automatically activated)
mode backlight and LED indicators.
(red color) - steady light indicates an alarm in the keypad controlled partition,
ALARM
while blinking indicates that an alarm was triggered in the partition.
(green color) - steady light indicates that the partition to which the keypad is
ARMED
assigned has been armed. Blinking indicates countdown of the exit delay.
(yellow color) – blinking indicates that a technical problem has occurred. The
TROUBLE
signaling applies to troubles from the entire alarm system, not only from the keypad
controlled partition. The type of trouble can be checked on the LCD keypad. Arming
the keypad controlled partition will disable the trouble signaling. Disarming the
partition will restore the trouble signaling.
Alternative blinking of all the LEDs (from top to bottom) indicates lack of communication
between the keypad and the control panel. This situation may take place when the STARTER
program is running in the control panel, or when the cable connecting the keypad and the
control panel is damaged.
Note: All LEDs may be OFF in the arming mode, depending on the control panel settings.
PARTITION KEYPAD
®

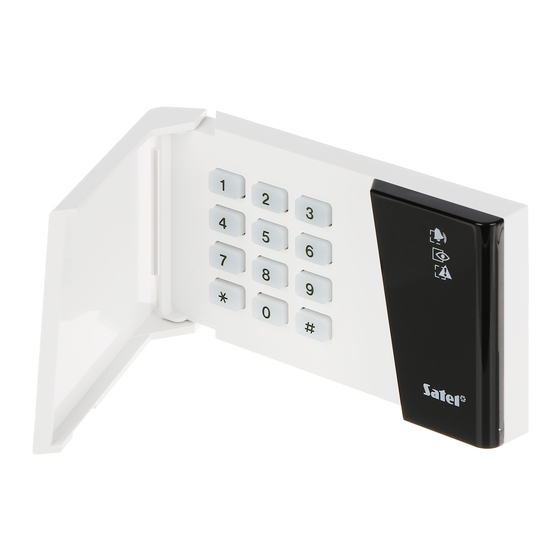

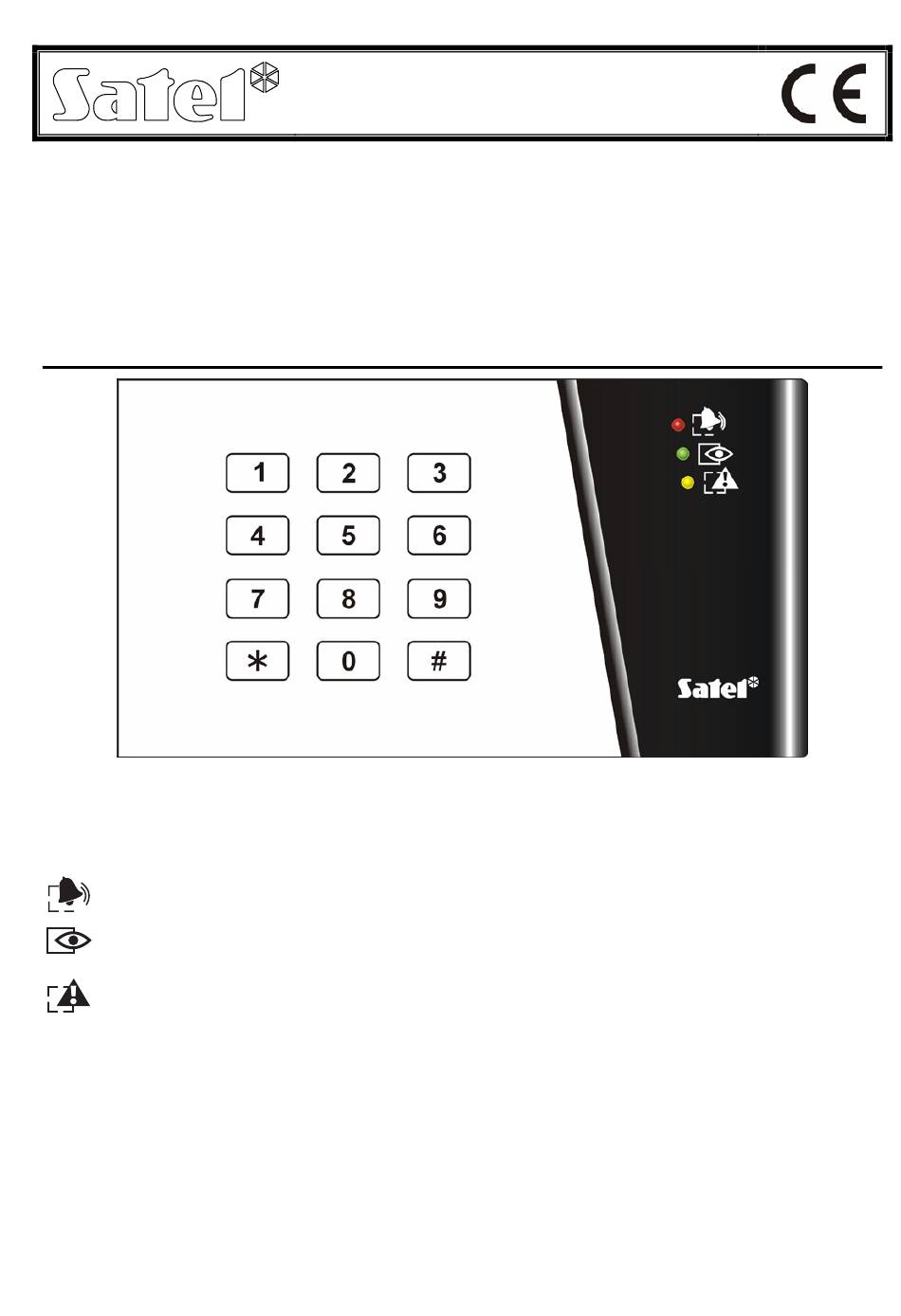

Figure 1. Partition keypad.
INT-SK-GR
