Satel INT-SF Quick Installation Manual

INT-SF

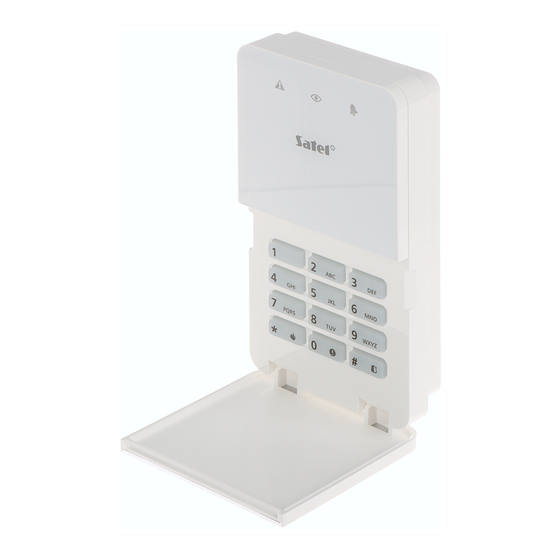

Partition keypad
The device should be installed by qualified personnel.
Before installation, please read the full manual thoroughly.
Disconnect power before making any electrical connections.
The keypad is designed for indoor installation. The place of installation should be readily
accessible to the system users.

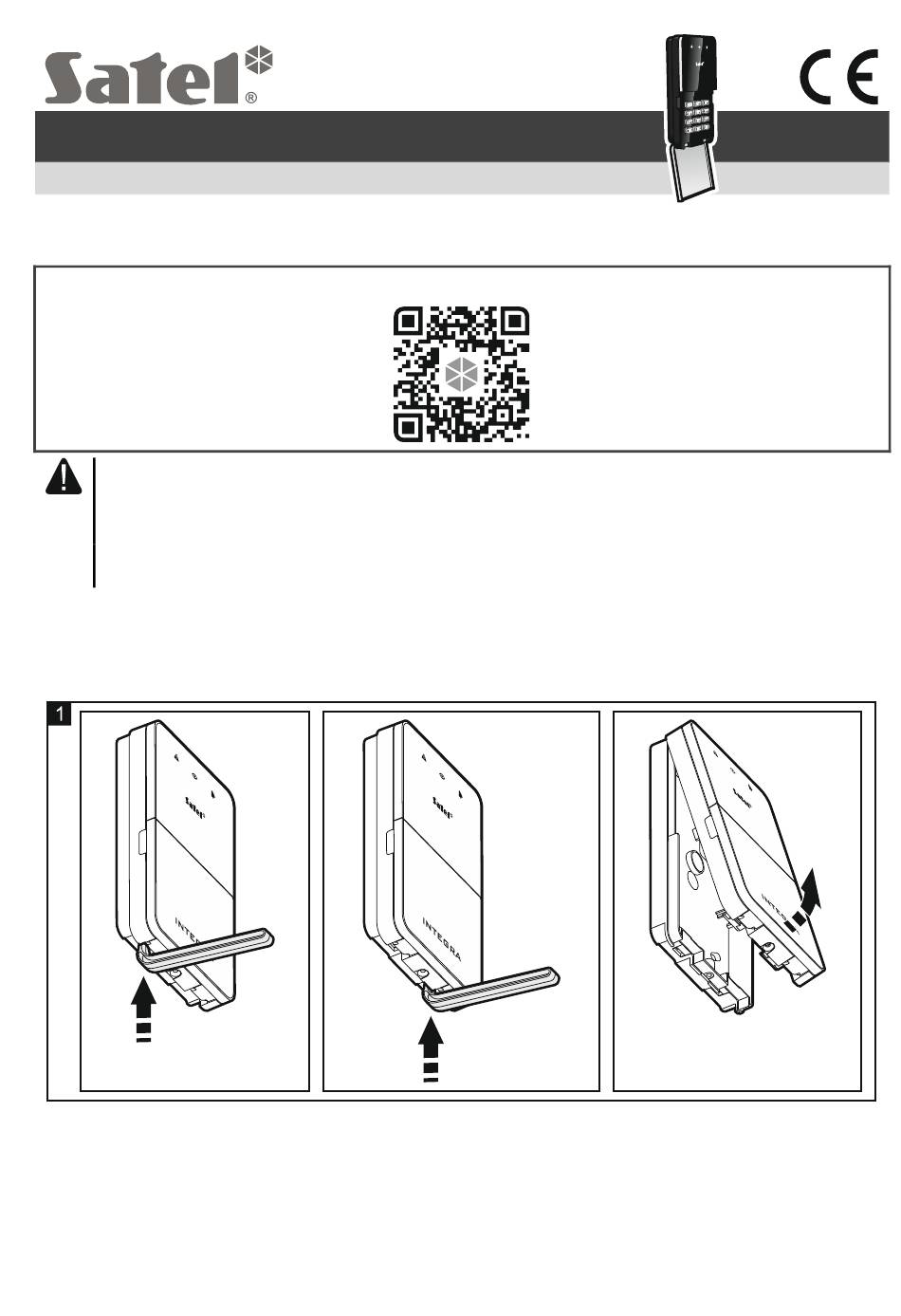

1. Open the keypad enclosure (Fig. 1). The enclosure opening tool, shown in the illustration,
is included in the keypad delivery set.
2. Set the partition keypad address (see "Address setting").
3. Run the wires through the opening in the enclosure base.
4. Using wall plugs (anchors) and screws, fasten the enclosure base to the wall. Select wall
plugs specifically intended for the mounting surface (different for concrete or brick wall,
different for drywall, etc.).
5. Connect the CLK, DTA and COM terminals to the appropriate terminals of the control
panel expander bus (see the control panel installer manual).
Quick installation guide
Full manual is available on
www.satel.eu
int-sf_sii_en 07/20
