Satel INT-SK Quick Installation Manual

INT-SK
PARTITION KEYPAD
The alarm system should be installed by qualified personnel.
Disconnect power before making any electrical connections.

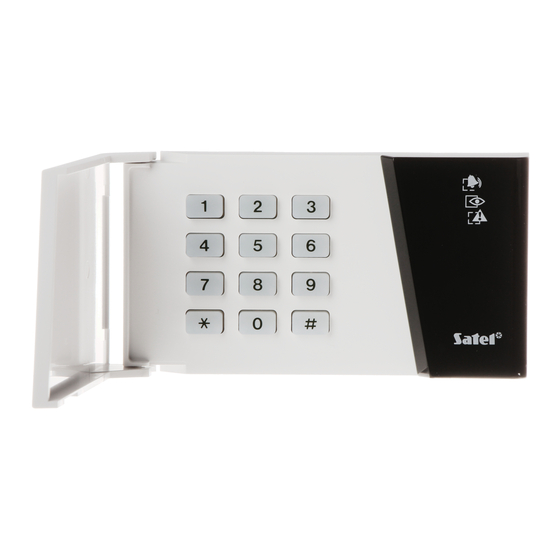

The INT-SK partition keypad offers control of one partition in the alarm system and provides
access control features. The device can be used in conjunction with the INTEGRA and
INTEGRA Plus control panels.
The keypad is designed for indoor installation. The place of installation should be readily
accessible to the system users.
1. Open the keypad enclosure.
2. Set the partition keypad address (see "Setting address").
3. Place the enclosure base on the wall and mark the location of mounting holes.
4. Drill the holes for wall plugs (screw anchors).
5. Run the wires through the opening in the enclosure base.
6. Using wall plugs (screw anchors) and screws, fasten the enclosure base to the wall.
7. Connect the CLK, DTA and COM terminals to the appropriate terminals of the control
panel expander bus (see the control panel installer manual). It is recommended that an
unshielded non-twisted cable be used for making the connection. If you use the twisted-
pair type of cable, remember that CLK (clock) and DTA (data) signals must not be sent
through one twisted-pair cable. The wires must be run in one cable.
8. If the partition keypad is to control an electric strike, electromagnetic lock or another door
actuator, connect corresponding wires to the NO terminals (see Fig. 1). It is not
recommended that the door actuator be powered from the same source as the partition
keypad.
9. Connect the wires of door status sensor to the IN and COM terminals. If the door status is
not to be monitored, connect the IN terminal to the keypad COM terminal or, when
configuring the keypad, set value 0 for the M
®
Quick installation guide
Full manual is available on www.satel.eu

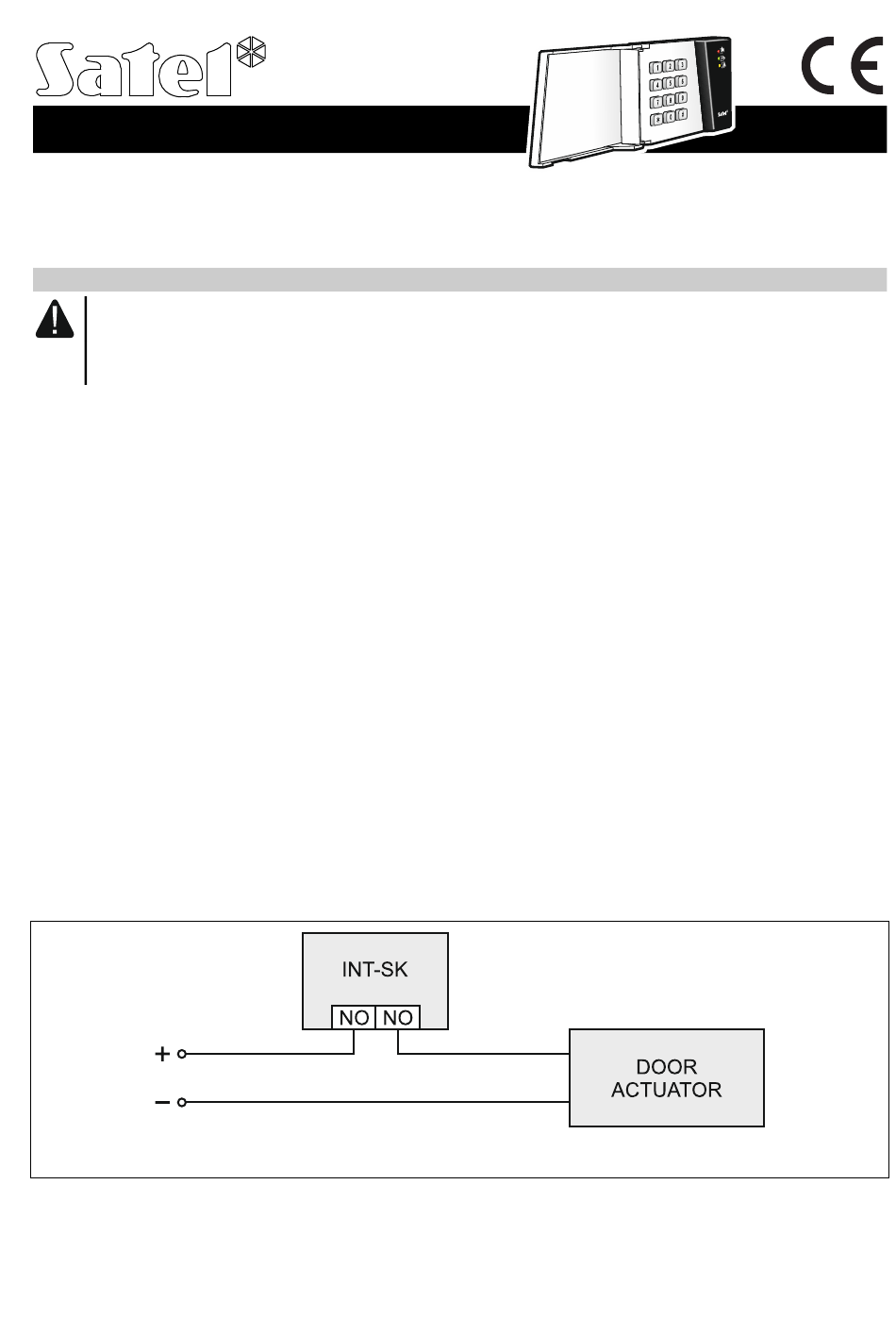

Fig. 1. Connecting wires to NO terminals of the keypad.
.
AX DOOR OPEN TIME
int-sk_sii_en 12/15
parameter.
