INT-SCR
MULTIFUNCTIONAL KEYPAD
WITH PROXIMITY CARD READER

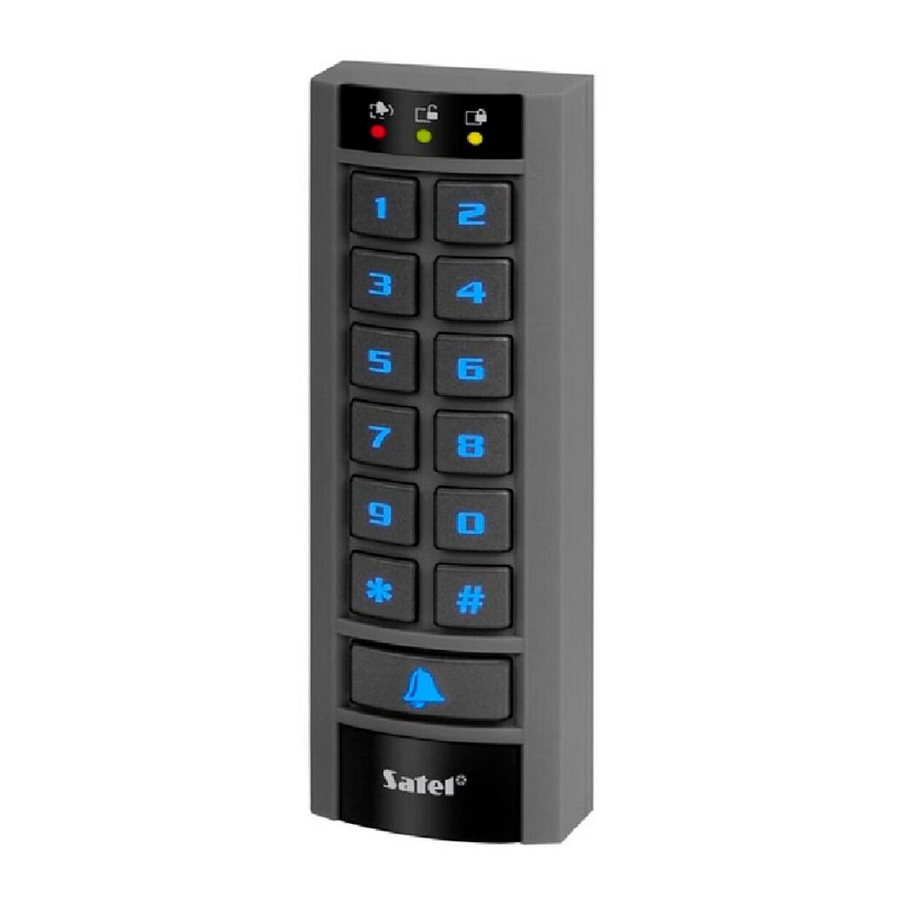

The INT-SCR multifunctional keypad with proximity card reader is compatible with the
INTEGRA and INTEGRA Plus alarm control panels. It can work as:
partition keypad with proximity card reader – identified in the alarm system as
INT-SCR. It allows the user to control one partition of the alarm system. The device
makes it possible to manage access to a single door. The user can use the access code
or the proximity card (i.e. a 125 kHz passive transponder in the form of a card, tag, etc.).
entry keypad – identified in the alarm system as INT-ENT. It allows the user to activate
delay for the "3. Interior delayed" type zones in the partition controlled with the keypad.
The user can use the access code or the proximity card (i.e. a 125 kHz passive
transponder in the form of a card, tag, etc.).
partition keypad – identified in the alarm system as INT-S/SK. It provides the same
features as the partition keypad with proximity card reader, but the user can only use the
access code.
The keypad is designed for both indoor and outdoor installation.
Quick installation guide
Full manual is available on
Fig. 1. Keypad wires.
www.satel.eu
+12V
red
blue
COM
DTA
green
black
CLK
yellow
NO
pink
NC
grey
C
brown
IN
purple
BELL
int-scr_sii_en 11/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Satel INT-SCR
Summary of Contents for Satel INT-SCR
- Page 1 partition keypad with proximity card reader – identified in the alarm system as INT-SCR. It allows the user to control one partition of the alarm system. The device makes it possible to manage access to a single door. The user can use the access code or the proximity card (i.e.
- Page 2 INT-SCR SATEL 1. Installation The device should be installed by qualified personnel. Disconnect power before making any electrical connections. If an additional cable must be used to make connections, use the unshielded non-twisted cable. If you use the twisted-pair type of cable, remember that CLK (clock) and DTA (data) signals must not be sent through one twisted pair.
- Page 3 SATEL INT-SCR Fig. 3. Connecting the actuator to the keypad. 8. If the keypad is to supervise the door status, connect the detector supervising the door status to the brown wire (door status input) and the blue wire (COM). If the keypad is not to supervise the door status, connect the brown and blue wires together or, when configuring the keypad, set value 0 for the “Max.
- Page 4 (DTA) and black (CLK) wires to the corresponding terminals of the control panel expander bus). The declaration of conformity may be consulted at www.satel.eu/ce SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
