Satel INT-S Quick Installation Manual

INT-S

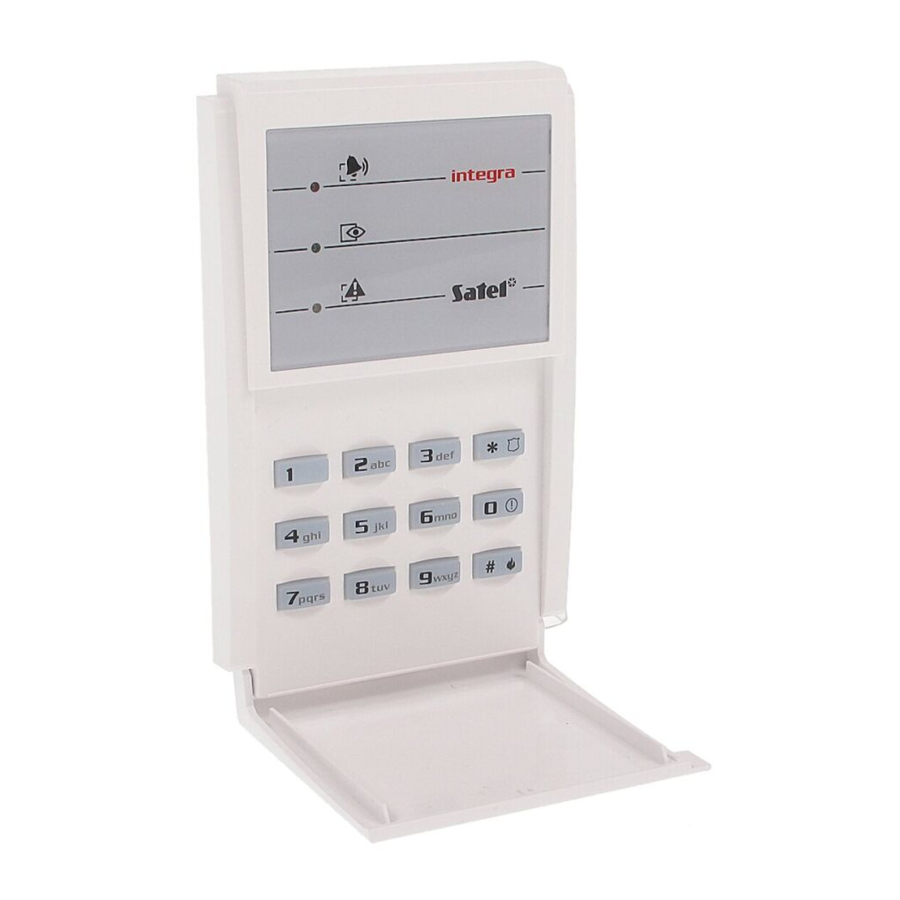

Partition keypad
The alarm system should be installed by qualified personnel.
Before installation, please read the full manual thoroughly.
Disconnect power before making any electrical connections.
The keypad is designed for indoor installation. The place of installation should be readily
accessible to the system users.
1. Open the keypad enclosure.
2. Set the partition keypad address (see "Address setting").
3. Place the enclosure base on the wall and mark the location of mounting holes.
4. Drill the holes for wall plugs (anchors).
5. Run the wires through the opening in the enclosure base.
6. Using wall plugs (anchors) and screws, fasten the enclosure base to the wall. Select wall
plugs specifically intended for the mounting surface (different for concrete or brick wall,
different for drywall, etc.).
7. Connect the CLK, DTA and COM terminals to the appropriate terminals of the control
panel expander bus (see the control panel installer manual).
8. If the partition keypad is to control an electric strike, electromagnetic lock or another door
actuator, connect this device to the NO terminals as shown in Fig. 1. It is not
recommended that the door actuator be powered from the same source as the partition
keypad.
9. If the keypad is to supervise the door status, connect the detector supervising the door
status to the IN and COM terminals. If the keypad is not to supervise the door status,
connect the IN terminal to the COM terminal or, when configuring the keypad, set value 0
for the "Max. door open time" parameter.
10. Connect the power wires to the 12V and COM terminals. The keypad may be powered
directly from the control panel, from an expander with power supply or from a power
supply unit.
11. Close the keypad enclosure.
12. Power on the alarm system.
13. Start the identification function in the control panel (see the control panel installer
manual). The keypad will be identified as "INT-S/SK".
Quick installation guide
Full manual is available on
www.satel.eu
int-s_sii_en 07/20
