- Page 1 07/14 Partition keypad INT-SF Firmware version 2.00 SATEL sp. z o.o. • ul. Schuberta 79 • 80-172 Gdańsk • POLAND tel. 58 320 94 00 • info@satel.pl www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

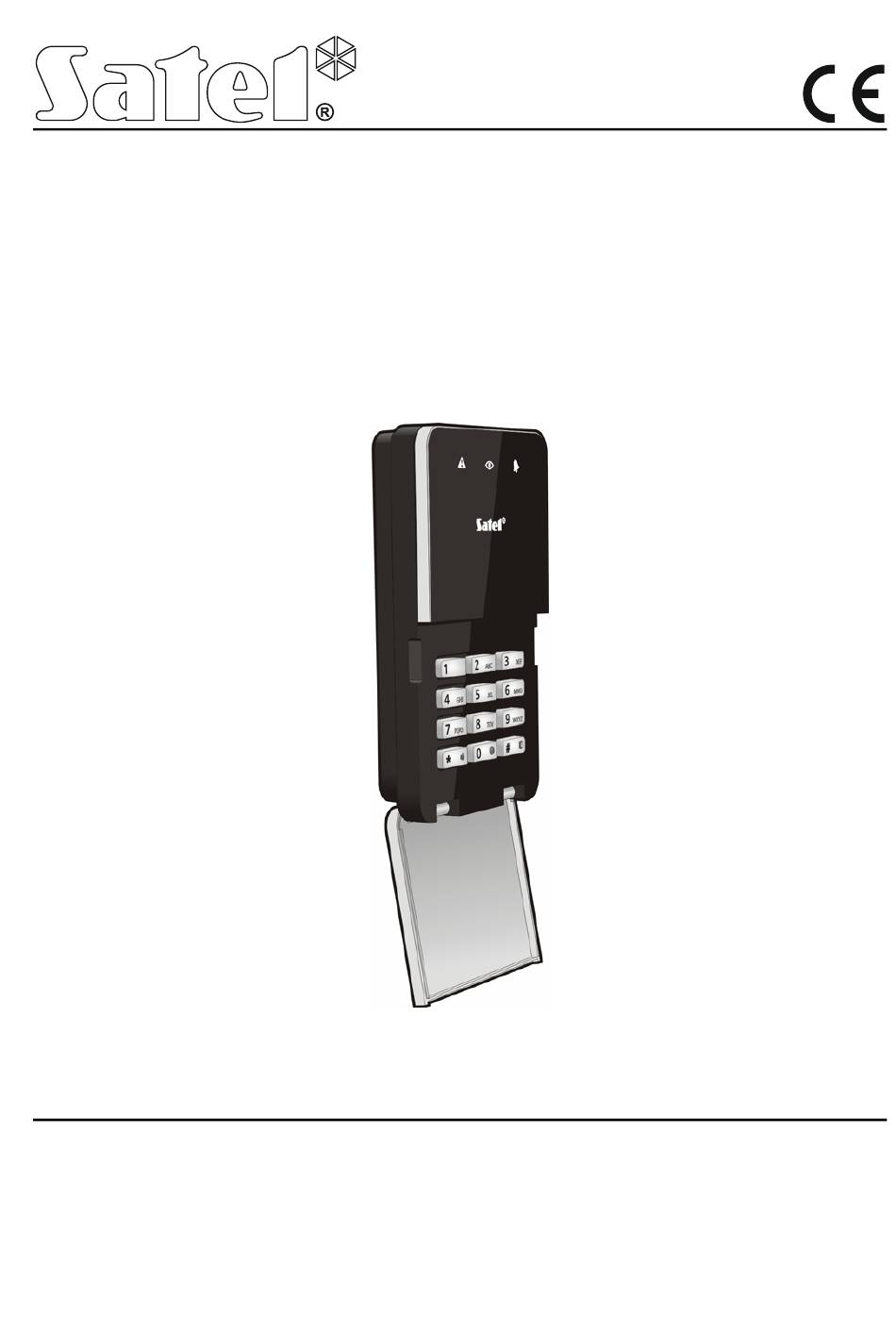

- Page 3 The INT-SF partition keypad offers control of one partition in the alarm system and provides access control features. The device can be used in conjunction with the INTEGRA and INTEGRA Plus control panels. Fig. 1. INT-SF partition keypad with closed and open flap cover.
-
Page 4: Installation
INT-SF SATEL 2. Installation Disconnect power before making any electrical connections. The keypad is designed for indoor installation. The place of installation should be readily accessible to the system users. 1. Open the keypad enclosure (see Fig. 2). The enclosure opening tool, shown in the illustration, is included in the keypad delivery set. -
Page 5: Setting Address
SATEL INT-SF DOOR ACTUATOR Fig. 3. Connecting wires to NO terminals of the keypad. 9. Connect the wires of door status sensor to the IN and COM terminals. If the door status is not to be monitored, connect the IN terminal to the keypad COM terminal or, when configuring the keypad, set value 0 for the M parameter. - Page 6 INT-SF SATEL - door status monitoring input (NC) - relay output 3. Configuration Parameters and options of the partition keypad can be configured using: LCD keypad: S S H E S ERVICE MODE TRUCTURE...
- Page 7 SATEL INT-SF Lock [Lock feature] – if this option is enabled, the partition keypad supports the access control functions (you can program the following parameters: L OCK FEATURES ELAY etc.). TIME ELAY DOOR OPEN TIME Lock features [Lock function] – relay operating mode: ON if partition armed [On if part.armed] –...
- Page 8 INT-SF SATEL AUX. alarm [Medical alarm] – if this option is enabled, pressing and holding the for 3 seconds will trigger the medical alarm. PANIC alarm – if this option is enabled, pressing and holding the key for 3 seconds will trigger the panic alarm.
-
Page 9: Operation
SATEL INT-SF Confirmation – you can select whether and how the partition keypad is to communicate with the user during operation: No – the partition keypad will not inform the user in any way about execution of or refusal to execute an operation. -
Page 10: Available Functions
INT-SF SATEL All LEDs blinking in turn indicate that there is no communication with the control panel. 4.2 Description of audible signaling 4.2.1 Beeps generated when operating Audible signaling can be disabled or replaced with blinking of the keypad backlight (see section "Configuration"). - Page 11 SATEL INT-SF 4.3.2 [Code] Depending on the type and rights of the user, partition keypad settings and alarm system status, entering the code and confirming it with the key will execute one or a few of the following functions: unlocking the door (activating the relay), ...
-
Page 12: Specifications
INT-SF SATEL 4.3.6 Silencing alarm at the partition keypad Press any number key. The signaling will be silenced for about 40 seconds. 4.3.7 Code changing The user can change their code, if the C ] option HANGING ACCESS CODE HANGING CODE is enabled.
