Maximal11V, Maximal33V, Maximal55V; Battery Hookup And Tamper Switch Installation - Altronix MaximalV Series Installation Manual

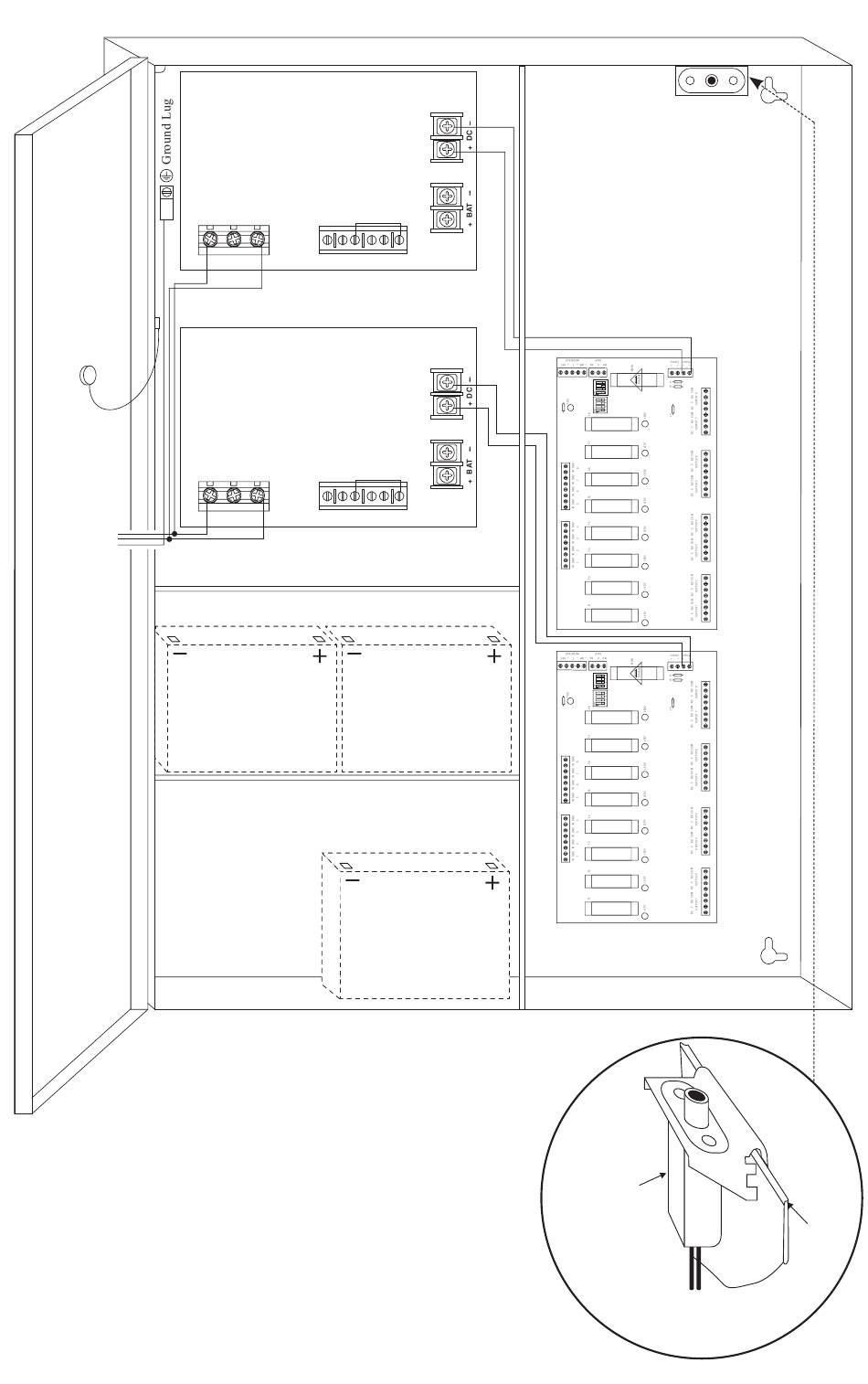

Fig. 3 - Maximal11V, Maximal33V, Maximal55V
Wire
Strap
(from
Enclosure
to Door)
Input
220VAC,
50/60Hz
*12VDC operation: For 12VDC operation
only a single battery is needed.
Connect red battery lead
to terminal marked
[+ BAT] and to the
[positive (+)] terminal
of the battery . Connect
black battery lead to
terminal marked [BAT –]
and to the [negative (–)]
terminal of the battery .
- 10 -
Power Supply Board
BAT FAIL
L G N
NC C NO
Line Neutral
Power Supply Board
BAT FAIL
L G N
NC C NO
Line
Neutral
Optional
12VDC Battery**
**24VDC operation: Connect two (2) 12VDC batteries in series
Maximal11V / Maximal33V / Maximal55V / Maximal77V / Maximal75V Access Power Controllers (Fused)
AC FAIL
NC C NO
AC FAIL
NC C NO
Optional
12VDC Battery**
Optional
12VDC Battery**
Fig. 3a
Tamper Switch
Honeywell
Model 112
Tamper Switch
or equivalent
(Not Included)
to Access Control Panel
or U.L. Listed
Reporting Device
Enclosure
Edge of
Enclosure
