C5G_SD_DEMO.sh
• FPGA Configure File : C5G_SD_DEMO.sof
• Nios II Program:C5G_SD_DEMO.elf
Demonstration Setup
• Make sure Quartus II and Nios II are installed on your PC.
• Power on the C5G board.
• Connect USB Blaster to the C5G board and install USB Blaster driver if necessary.
• Execute the demo batch file "C5G_SD_DEMO.bat" for USB-Blaster II under the batch file
folder, C5G_SD_DEMO\demo_batch
• After Nios II program is downloaded and executed successfully, a prompt message will be
displayed in nios2-terminal.
• Copy test files to the root directory of the SD Card.
• Insert the Micro SD Card into the SD Card socket of C5G, as shown in

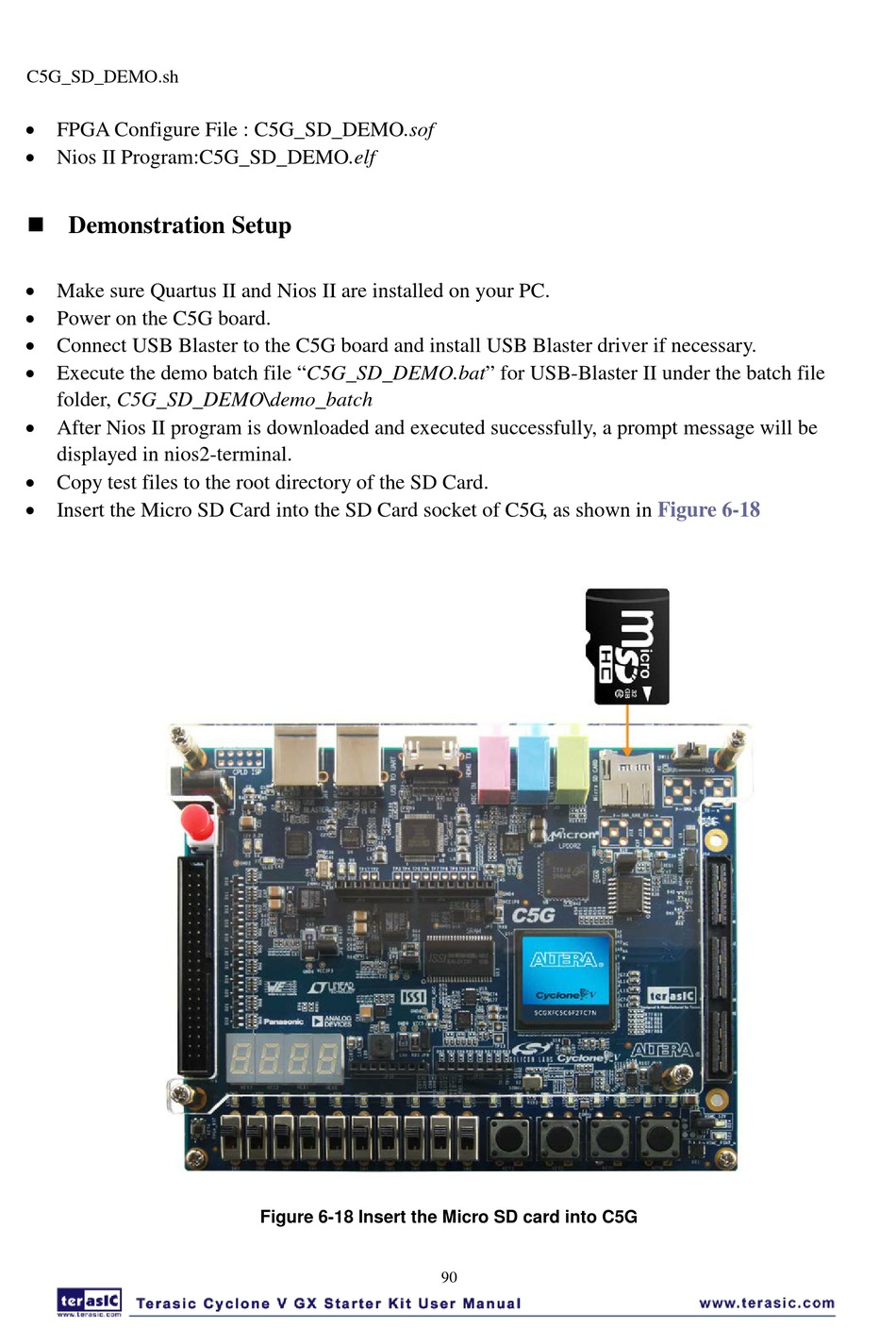

Figure 6-18 Insert the Micro SD card into C5G
90
Figure 6-18
