Installation

Remove all packing materials from the LED Powerbrick Set. Check that all foam and plastic padding is
removed. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Note : Link all cables before connecting electric power.

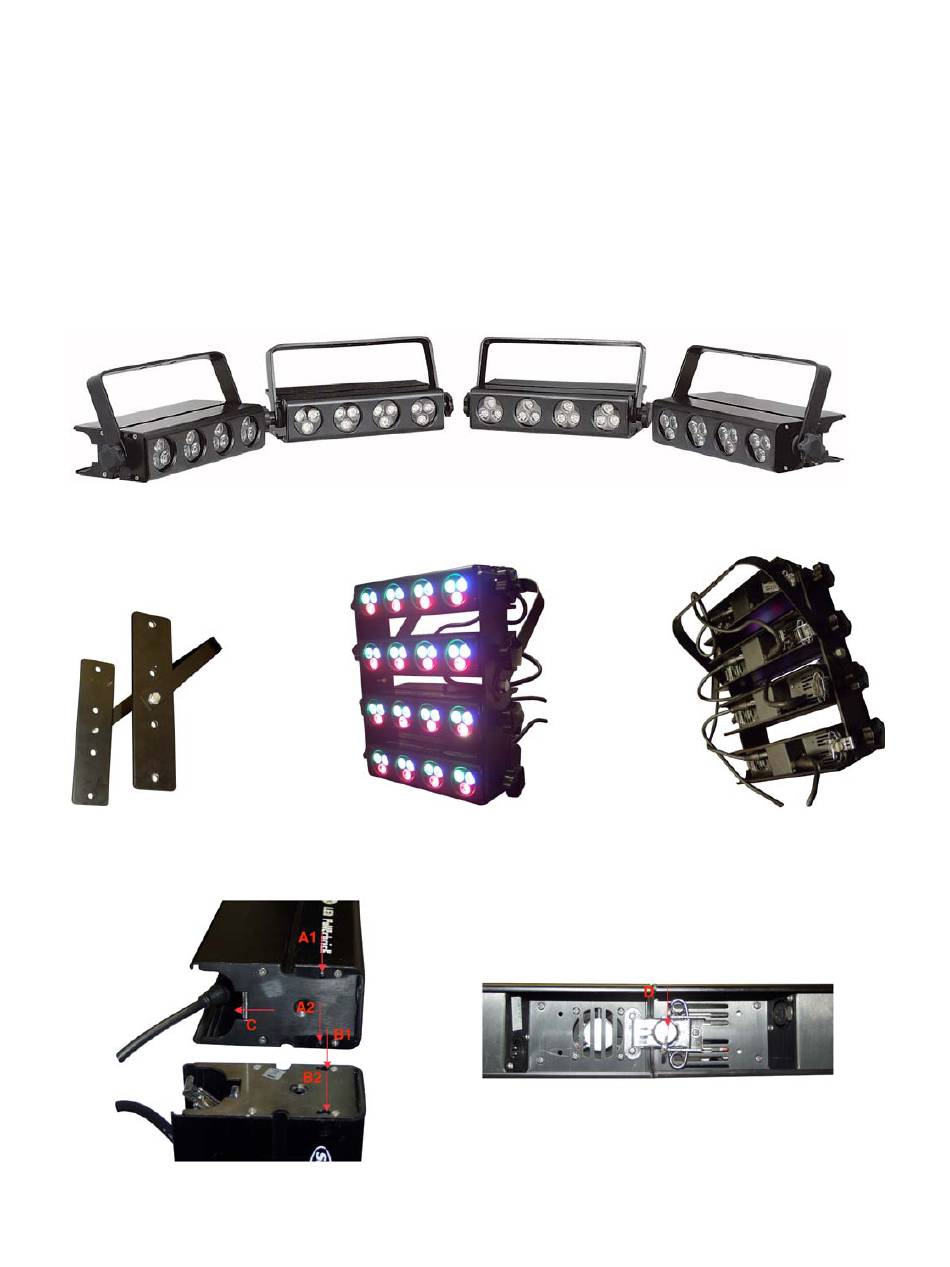

You have 3 possibilities to set up your LED Powerbrick Set:
1) Separate

2) Connected on top of eachother by using the supplied brackets

Bracket Mounting the separate Powerbricks Backside connection

3) Connected Side by Side

Be sure to put the devices next to eachother and slide Pin A1 in hole B1, do the same for pin A2 in hole B2.
Then slide the first device in the direction of C. The last step is securing the devices at the back by using clasp
D and turning it clockwise to tighten the locking mechanism.
