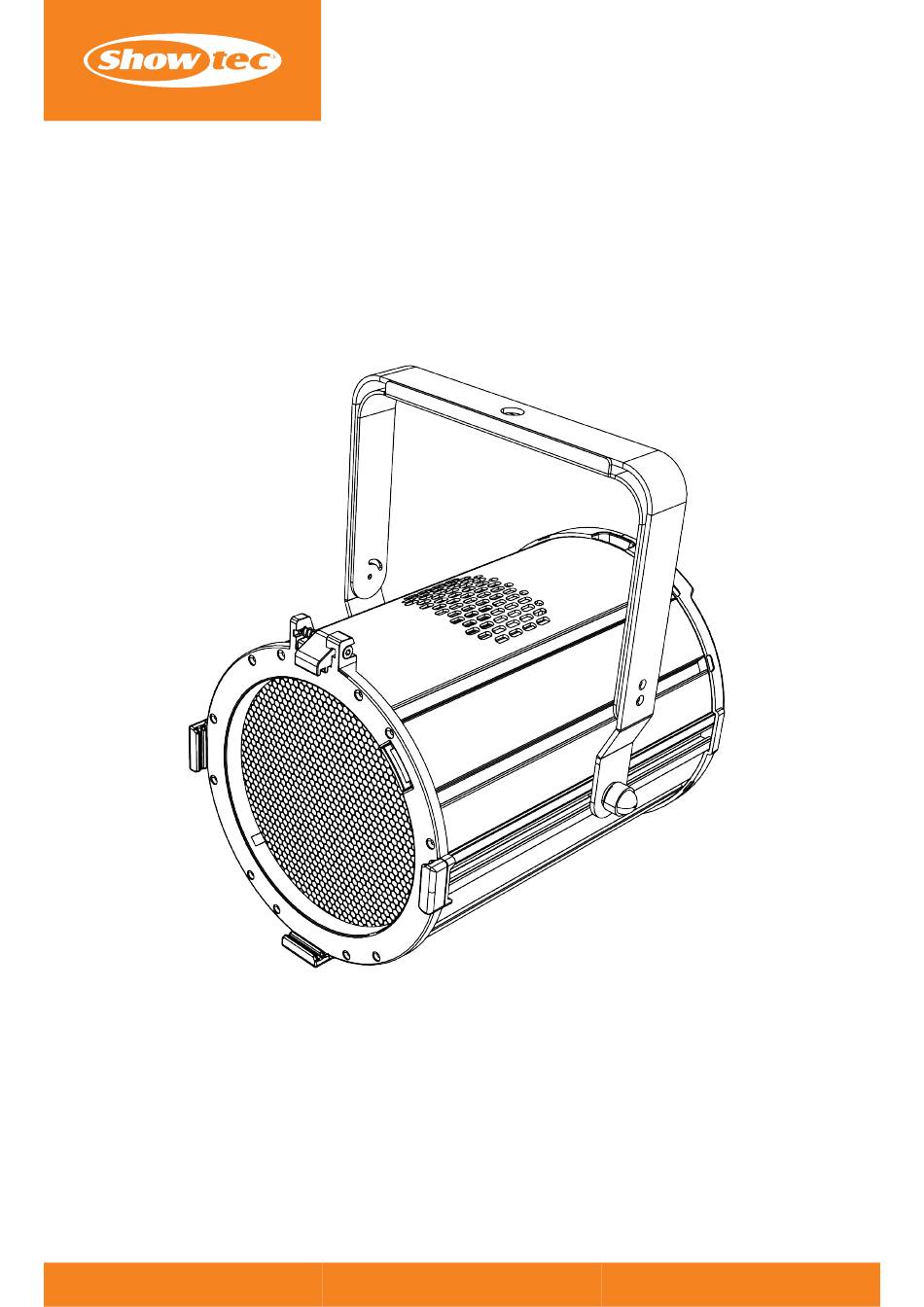

- Page 1 USER MANUAL ENGLISH V1.0 ACT Par 200W RGBAL Product code: 34065...
- Page 2 ACT Par 200W RGBAL Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
ACT Par 200W RGBAL Table of contents 1. Introduction ............................ - Page 4 ACT Par 200W RGBAL 6.6.8. Special Functions ........................
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Showtec ACT Par 200W RGBAL • • 3x diffusers: 30°, 50° and 80° • •... -
Page 6: Symbols And Signal Words
ACT Par 200W RGBAL 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 7: Safety
ACT Par 200W RGBAL Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. - Page 8 ACT Par 200W RGBAL WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply • • Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 9: Requirements For The User
ACT Par 200W RGBAL Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -

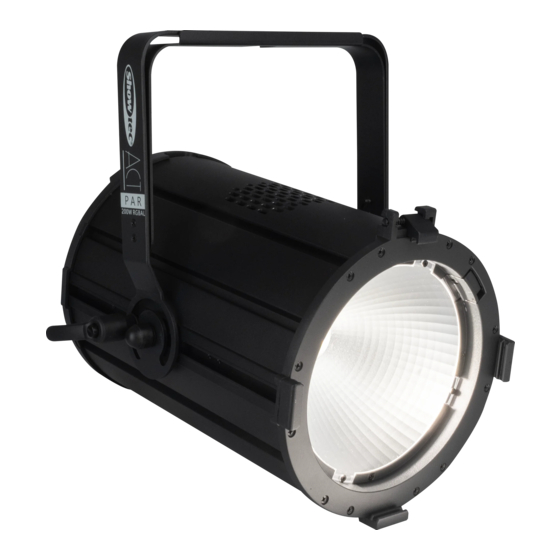

Page 10: Description Of The Device
(Red, Green, Blue, Amber and Lime) can produce a wide range of colors, including white. In addition to the control panel on the back, the ACT Par 200W RGBAL has 2 knobs to control the color and intensity when using it in stand-alone mode. -
Page 11: Product Specifications
ACT Par 200W RGBAL 3.3. Product Specifications Model: ACT Par 200W RGBAL Source: Light source type LED Light source quantity 1 Light source power 200 W LED color type R / G / B / A / L Luminous flux (total) 5481 lm... -
Page 12: Dimensions
ACT Par 200W RGBAL Mounting options Bracket / Floor Safety attachment Yes Thermal Specifications: Maximum ambient temperature 40 °C Minimum operating temperature 0 °C Included Items: Included cables Power Pro Cable Included optics Diffusers 3.4. Dimensions Figure 4 3.5. Optional Accessories You can additionally purchase the following accessory: •... -
Page 13: Installation
ACT Par 200W RGBAL Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 14: Rigging
ACT Par 200W RGBAL 4.4. Rigging To mount the device, follow the steps below: 01) Use a clamp to attach the device to the supporting structure. Make sure that the device cannot move freely. 02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device. -
Page 15: Angle Adjustment
4.6. Diffuser Installation The ACT Par 200W RGBAL can be used as a spotlight, a medium flood or a soft beam by installing one of the 3 included diffusers: 30°, 50°, or 80°. To install a diffuser, press the diffuser into the lens opening (03) of the device. Make sure that the diffuser is held in position by the diffuser clip (02). -
Page 16: Barndoor Installation
ACT Par 200W RGBAL 4.7. Barndoor Installation An optional barndoor (see 3.5. Optional Accessories on page 11) is available for use with the ACT Par 200W RGBAL. To install the barndoor, follow the steps below: 01) Slide the spring-loaded barndoor clip (05) to the side and flip it backwards. -
Page 17: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 5 devices ACT Par 200W RGBAL • • at 200–240 V: 10 devices ACT Par 200W RGBAL... -
Page 18: Setup
5.2. Stand-alone Setup When the ACT Par 200W RGBAL is not connected to a controller or to other devices, it functions as a stand- alone device. It can be operated manually via the control panel and via the manual controls. -
Page 19: Dmx Linking
ACT Par 200W RGBAL Figure 9 5.3.3. DMX Linking To connect multiple devices on one DMX data link, follow the steps below: 01) Use a 3-pin/5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the 1 device. -
Page 20: Dmx Addressing
04) Continue assigning the starting addresses of the remaining devices by adding each time 12 to the previous number. Make sure that you do not have any overlapping channels in order to control each ACT Par 200W RGBAL correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 21: Operation
6.2. Control Modes The ACT Par 200W RGBAL can be operated with a DMX controller and as a stand-alone device. The ACT Par 200W RGBAL supports the following control modes: •... -
Page 22: Control Panel
ACT Par 200W RGBAL 6.3. Control Panel Figure 11 OLED display ENTER button DOWN button UP button MENU button • • Use the MENU button to exit the current submenu, to return to the main menu and to return to the start screen. -
Page 23: Menu Overview
ACT Par 200W RGBAL 6.5. Menu Overview Level 1 Level 2 Level 3 Level 4 DMX Address 001–512 RAW – 5 Ch. Mode Basic – 8 Ch. Adv. – 12 Ch. DMX Functions (see 6.6.1. DMX Functions on page 23) Manual Defined DMX Fail... -
Page 24: Main Menu Options
ACT Par 200W RGBAL 6.6. Main Menu Options The main menu has the following options: DMX Functions Show Settings Static Color Fixture Settings Display Settings Fixture Test Fixture Information Special Functions 01) Press the UP/DOWN buttons to navigate through the menu. -
Page 25: Dmx Fail
ACT Par 200W RGBAL 6.6.1.3. DMX Fail In this pop-up submenu you can determine the behavior of the device in case there is no DMX signal. 01) Press the UP/DOWN buttons to select one of the following 3 options: •... -
Page 26: Function Mode
ACT Par 200W RGBAL 6.6.2.1. Function Mode In this submenu you can select one of the following 3 options: Select this option to control the device with the manual dimmer control (16) and the • • Knob: color select control (17). See Control Modes (see 6.2. -
Page 27: Fixture Settings
ACT Par 200W RGBAL 6.6.4. Fixture Settings In this menu you can adjust the fixture settings. 01) Press the UP/DOWN buttons to select one of the following 3 options: • • Dimmer Curve: There are 4 options available: Linear, Square Law, Inverse Square Law and S- Curve •... -
Page 28: Fixture Test
ACT Par 200W RGBAL 6.6.6. Fixture Test In this menu you can perform a test of the parameters of the device and manually adjust the color and the dimmer and strobe values. 01) Press the UP/DOWN buttons to select one of the following 2 options: •... -
Page 29: Special Functions
ACT Par 200W RGBAL 6.6.8. Special Functions In this menu you can reset the settings of the device to the default factory settings. 01) Press the ENTER button to open the pop-up submenu for the factory reset: 02) Press the UP/DOWN buttons to choose between No and Yes. If you choose Yes, the settings of the device will be reset to the default factory settings. -
Page 30: Dmx Channels
ACT Par 200W RGBAL 6.7. DMX Channels Basic Advanced Function Value Setting 5 CH 8 CH 12 CH 000–255 From low to high intensity (0–100 %) Green 000–255 From low to high intensity (0–100 %) Blue 000–255 From low to high intensity (0–100 %) Amber 000–255 From low to high intensity (0–100 %) - Page 31 ACT Par 200W RGBAL Basic Advanced Function Value Setting 5 CH 8 CH 12 CH 169–172 Color 43 Liberty Green 173–176 Color 44 Lilac Tint 177–180 Color 45 Lee Fluorescent 4300 K 181–184 Color 46 No Color Blue ...
-
Page 32: Rdm Information
ACT Par 200W RGBAL Basic Advanced Function Value Setting 5 CH 8 CH 12 CH 128–191 Color Fade 1–16 192–255 Color Change 1–16 000–255 Speed adjustment, from slow to fast (Built-in programs in Speed CH 11) Note: • • Make sure that the Strobe channel and the Master Dimmer channel are open in 8-CH and 12-CH mode in order to see the light output. -
Page 33: Troubleshooting
ACT Par 200W RGBAL Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 34: Maintenance
ACT Par 200W RGBAL Maintenance 8.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: •... -
Page 35: Corrective Maintenance
ACT Par 200W RGBAL 8.3. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 36: Disposal
ACT Par 200W RGBAL Disposal Correct disposal of this product Waste Electrical and Electronic Equipment This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. - Page 37 ACT Par 200W RGBAL Product code: 34065...
- Page 38 ACT Par 200W RGBAL Product code: 34065...
- Page 39 ACT Par 200W RGBAL Product code: 34065...
- Page 40 Showtec is a brand of Highlite International B.V.
