Summary of Contents for SHOWTEC Polarscan

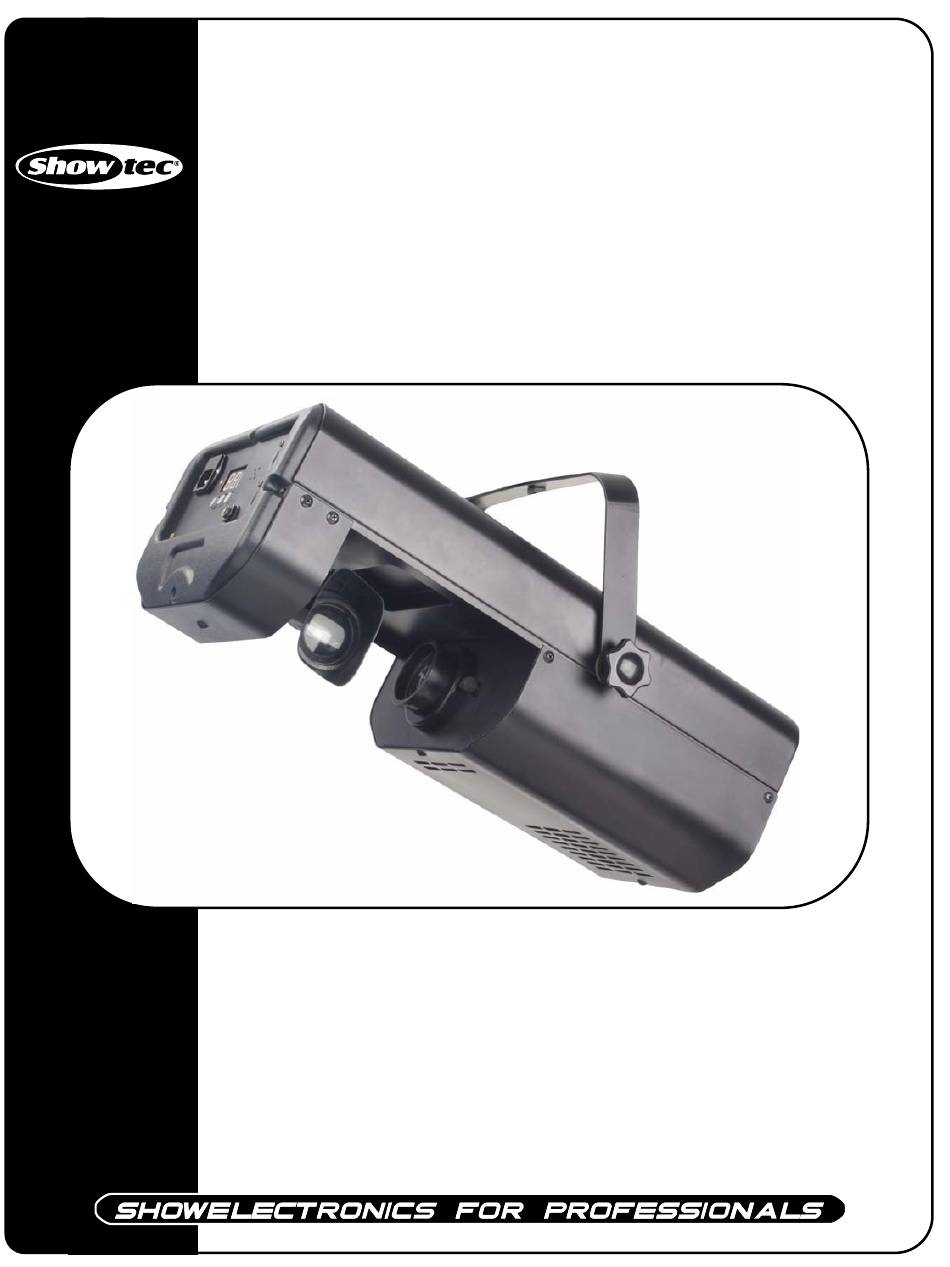

- Page 1 Polarscan ORDERCODE 40151...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Polarscan brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Polarscan Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… One City Painter .................………………………………………… Multiple City Painters…................………………………………….. DMX-Protocol…...........…………………………………………………………….. Control Mode........……………………………………………………………………… Addressing........……………………………………………………………………… Channels........…………………………………………………………………..…… Maintenance...................………..………….…….……………… Changing the Lamp................…………………….…………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. For adult use only. Polarscan must be installed out of the reach of children. Never leave the unit • running unattended. - Page 6 Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc. You endanger your own safety and the safety of others! Improper installation can cause serious damage to people and property ! Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure:...
-
Page 7: Description

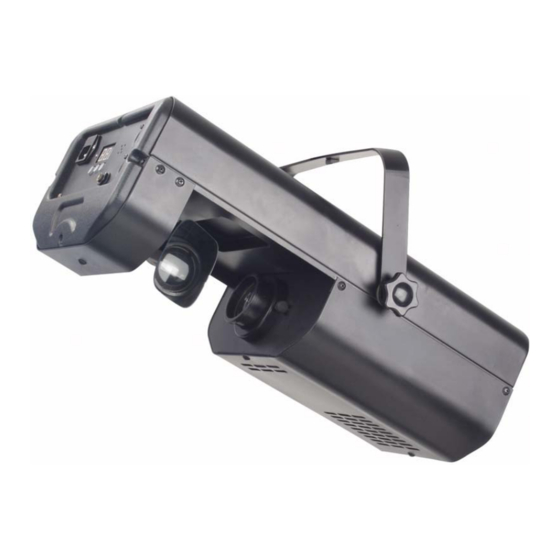

Description of the device Features The Showtec Polarscan is a scanner with high output and great effects. • DMX-control via standard DMX-controller • 6 DMX-control channels required • 1 Gobo-wheel with 9 gobos plus open • 1 Color-wheel with 15 colors (12 fixed, 3 split colors) plus open •... -
Page 8: Installation
Installation Installing the Lamp The Showtec Polarscan uses the MSD 250 (ordercode 80920P / 80920O / 80933O / 82603 / 80935) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 9: Set Up And Operation
Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One Polarscan 1. Leave at least 1 meter on all sides for air circulation. -
Page 10: Dmx-Protocol
DMX Protocol The Polarscan can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel When the indicator light is on, means the Polarscan is working Fig. 4 A. Fun [Function] Button B. Down Button C. -
Page 11: Dmx Channels
DMX Channels Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 150°and stopped at any position you wish. Channel 2 - Vertical movement (Tilt) Push the slider, up in order to move head vertically (TILT). -
Page 12: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Polarscan requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 13: Troubleshooting
Troubleshooting No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. - Page 14 Problem Probable cause(s) Remedy No power to the fixture ·Check that power is switched on and One or more cables are plugged in. fixtures are Primary fuse blown. ·Replace fuse. completely dead. Fixtures reset The controller is not connected. ·Connect controller. correctly, but all 3-pin XLR Out of the controller ·Install a phase reversing cable...
-
Page 15: Product Specifications
Signal output 3-pin XLR female Lamp Allowed lamp models*: Showtec NSD 250/2 (2000 hr) (ordercode 82603) Philips MSD 250 (3000 hr; 6700K) ordercode 80920P Osram HSD 250 (2000 hr; 6000K) ordercode 80926O Osram HSD 250/78 (1000 hr; 7800K) (ordercode 80933O) Osram HSD 250/80 (1000 hr;... - Page 16 2005 Showtec.
