Description of the device
Features
The LED Powerbrick Set
• Powerbrick set contains 4 Powerbricks, one controller, power leads, DMX leads.
• Ultra bright LED
• First grade aluminum body construction
• Unlimited colors
• Low power consumption
• Low heat design, great for long time operation.
• Lifetime: 100.000 hours
NOTE: Knowledge of DMX is required to fully utilize this unit.
Overview

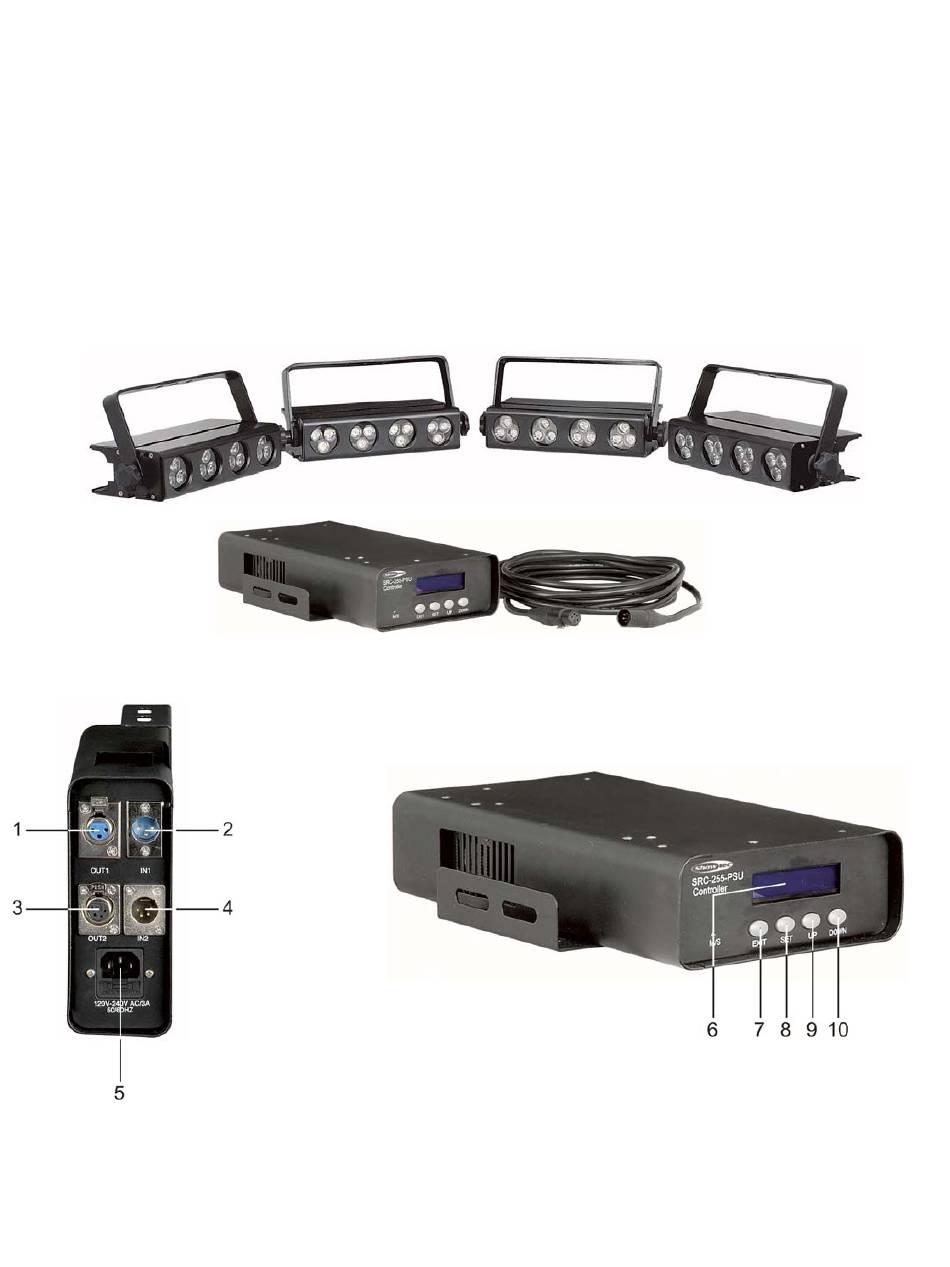

Backside

1) 3-pin DMX signal connector (OUT)
2) 3-pin DMX signal connector (IN)
3) 5-pin DMX signal connector (OUT)
4) 5-pin DMX signal connector (IN)
5) IEC Connector + Fuse
is a LED system from Showtec.
Fig. 2
6) LCD Display
7) EXIT
8) SET
9) UP
10) DOWN
4
Fig. 1
Fig. 3
